Fleck 2900S - 2 Plastic Meter Assembly

Page 34

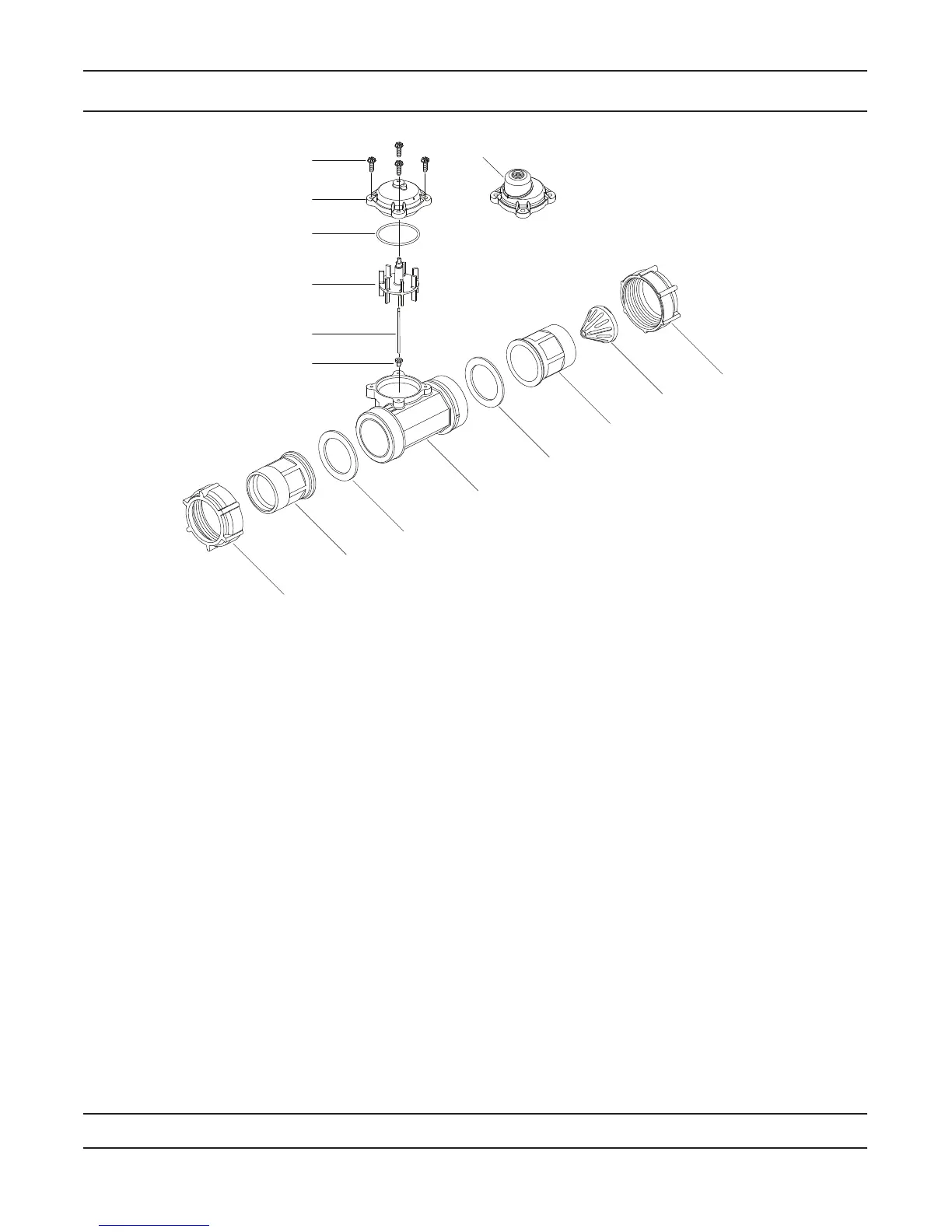

2” Plastic Meter Assembly
Item No. Quantity Part No. Description
1 ................... 1 .................... 17689 ...................... Body, Meter, 2” Plastic w/Impeller Shaft Seat
2 ................... 1 .................... 15532 ......................Seat, Impeller Shaft, Hex
3 ................... 1 .................... 15432 ......................Shaft, Impeller, Stainless Steel
5 ................... 1 .................... 15374 ......................Impeller Assy, 2” Meter
6 ................... 1 .................... 13847 ......................O-ring, -137, Std/560CD, Meter
7A ................ 1 .................... 14038 ......................Meter Cap Assembly
7B ....................................... 15150 ......................Meter Cap Assembly, Ext
8 ................... 4 .................... 12473 ......................Screw, Hex Wsh, 10-24 x 5/8 18-8 Stainless Steel
9 ................... 2 .................... 40666 ......................Seal, Face, 2”, Plastic Meter
10A .............. 1 .................... 17987-001 ...............Fitting, Nipple, 2”, Plastic, NPT, Machined,
.............................................................................Flow Straightener
10B .............. 1 .................... 17987-101 ...............Fitting, Nipple, 2”, Plastic, BSP, Machined,
.............................................................................Flow Straightener
11A ............... 1 .................... 17987-000 ...............Fitting, Nipple, 2”, Plastic, NPT
11B .............. 1 .................... 17987-100 ...............Fitting, Nipple, 2”, Plastic, BSP
12 ................. 1 .................... 14680 ......................Flow Straightener
13 ................. 2 .................... 17988 ......................Nut, 2” Meter
For Service Assembly Numbers, See the Back of this Manual
13
13
12
10
9
1
9
11
7B
8
7A
6
5
3
2
60621_REVB
