Fleck 2900S - Lower Environmental Powerhead Assembly

Page 22

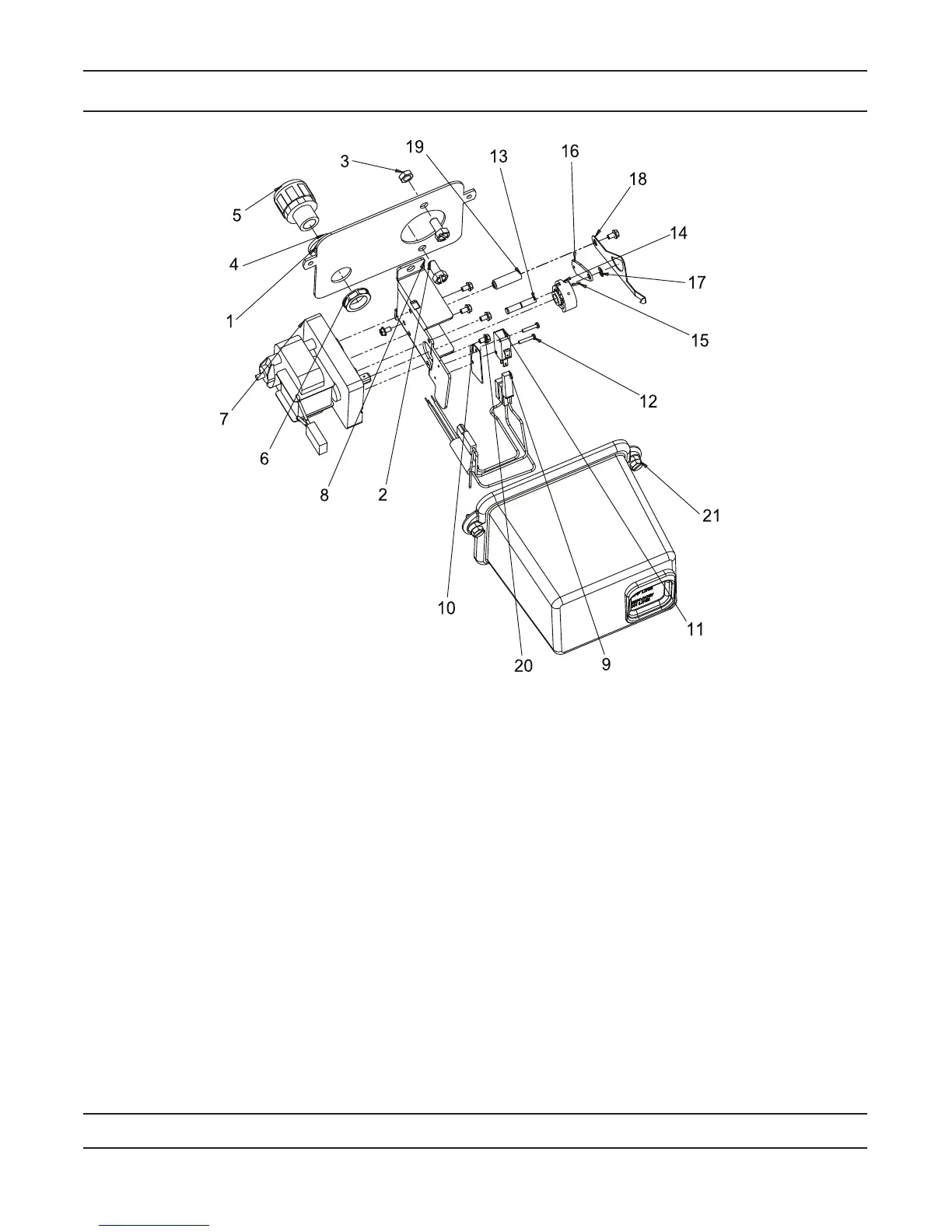

Lower Environmental Powerhead Assembly
Item No. Quantity Part No. Description
1 ....................1 .................... 18709 ..................................... Backplate, Lower
2 ....................2 .................... 11224 .....................................Screw, Hex Hd, 5/16 - 18 x 5/8
3 ....................2 .................... 16346 ..................................... Nut, Hex, JAM, 5/16-18, 18-8 Stainless Steel
4 ....................1 .................... 18692 ..................................... Washer, 3/8, Sealing
5 ....................1 .................... 18691-01................................ Fitting, Conduit
6 ....................1 .................... 18691-02................................ Nut, Conduit Fitting,1/2”
7 ....................1 .................... 40387 ..................................... Motor, Drive, 115v, 60 Hz, SP, Fam 2
......................1 .................... 42580 ..................................... Motor, Drive, 24VAC/DC, 50/60 Hz
......................1 .................... 40389 ..................................... Motor, Drive, 220V, 50/60 Hz, SP, Fam 2
8 ....................1 .................... 14769 ..................................... Bracket, Motor, 2900
9 ....................1 .................... 40405 ..................................... Harness, Lower Drive, Sys4, Env
10 ..................1 .................... 10302 ..................................... Insulator, Limit Switch
11 ..................1 .................... 10218 ..................................... Switch, Micro
12 ..................2 .................... 19849 ..................................... Screw, Pan Hd, 4-40 x 5/8
13 ..................1 .................... 18746 ..................................... Bearing, Connecting Rod
14 ..................1 .................... 14775 ..................................... Cam, Drive, 2900
15 ..................1 .................... 41022 ..................................... Pin, Roll, 2900 Lower
16 ..................1 .................... 14759 ..................................... Link, Piston Rod
17 ..................1 .................... 10250 ..................................... Ring, Retaining
18 ..................1 .................... 18725 ..................................... Indicator, Service/Standby
19 ..................1 .................... 18726 ..................................... Spacer, Indicator
20 ..................6 .................... 10872 ..................................... Screw, Hex Wsh,8-32 X 17/64 18-8 Stainless Steel
21 ..................1 .................... 60217-02................................ Cover Assembly, 2900, Lower, Black, Environmental
61501-2900_REVC
For Service Assembly Numbers, See the Back of this Manual
