Page 32

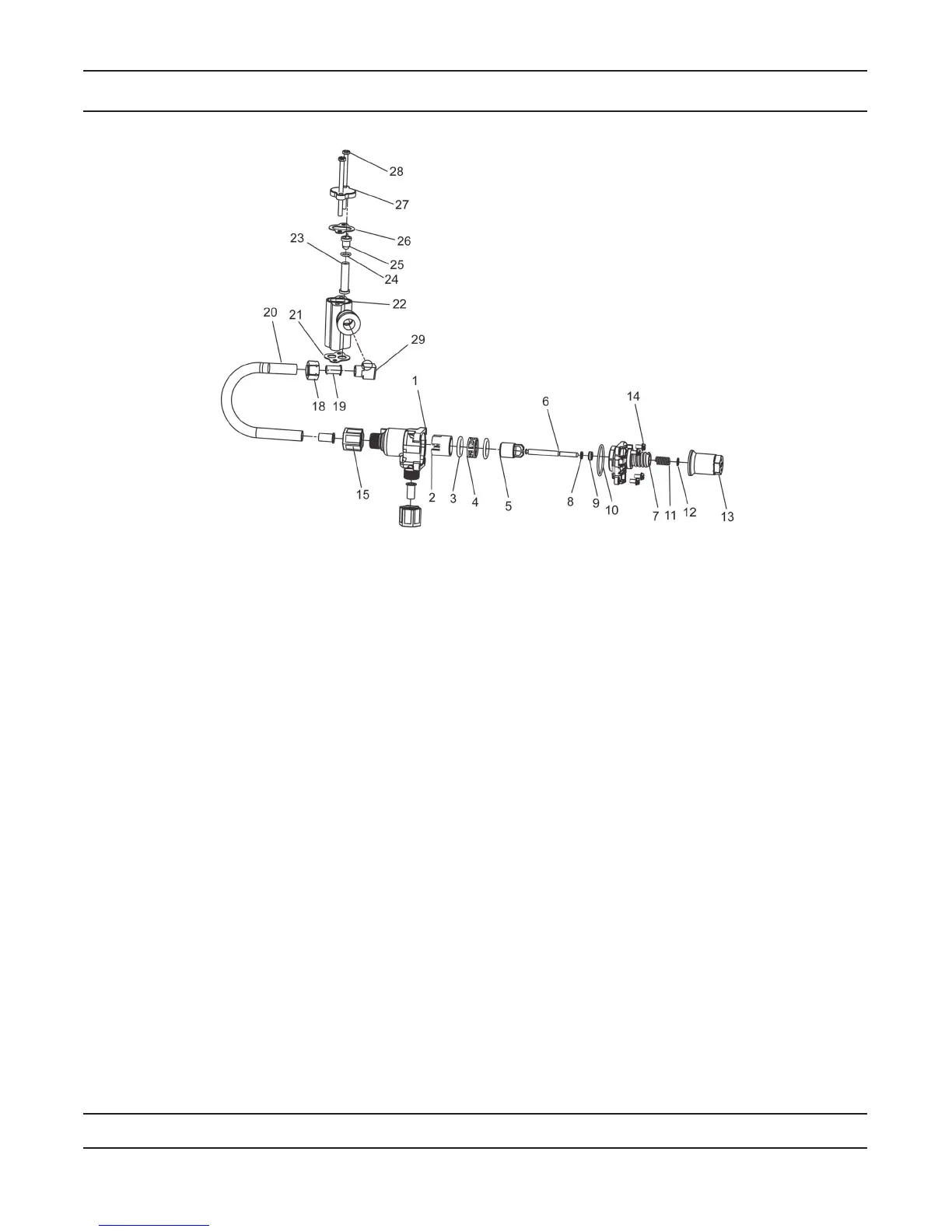

1710 Brine System Assembly
60604_REVF
For Service Assembly Numbers, See the Back of this Manual
Item No. Quantity Part No. Description
1 ........................1 ..........................41202 .............................. Brine Valve, 1700, Plastic, Top
2 ........................1 ..........................14785-01 ........................ Retainer, Flow Control
3 ........................- ...........................14811 .............................. O-Ring, -210, 560CD, Brine
4 ........................1 ..........................14798 .............................. Spacer, 1700, Brine
5 ........................1 ..........................14795 .............................. Piston, Brine Valve
6 ........................1 ..........................41203 .............................. Stem, Brine, 1710, Plastic, 2900
7 ........................1 ..........................41201 .............................. Brine Valve, 1700, Plastic, Bottom
8 ........................5 ..........................17908 .............................. Sleeve, Brine Valve Stem
9 ........................1 ..........................12550 .............................. Quad Ring, -009
10 ......................3 ..........................41547 .............................. O-Ring, 2mmx35mm
11 .......................2 ..........................15310 .............................. Spring, Brine Valve
12 ......................2 ..........................10250 .............................. Ring, Retaining
13 ......................1 ..........................17906 .............................. Guide, Brine Valve Stem
14 ......................2 ..........................14202-01 ........................ Screw, Hex Wsh Mach, 8-32 X 5/16
15 ......................2 ..........................41056 .............................. Nut Assembly, 1/2” Plastic
18 ......................1 ..........................15414 .............................. Nut, 2900, w/Sleeve
19 ......................1 ..........................15415 .............................. Fitting, Insert, 1/2”, Tube
20 ......................1 ..........................15416 .............................. Tube, Brine, 2900, Old Style/2750
..........................1 ..........................16460 .............................. Tube, Brine, 2850, 2900s
..........................1 ..........................41447* ............................ Tube, Brine, 2900s, U/F
..........................1 ..........................42183 .............................. Tube, Brine, 1700, 2850s
21 ......................1 ..........................19925 .............................. Gasket, Injector Body, 1700
22 ......................1 ..........................17777 .............................. Body, Injector, 1700
..........................1 ..........................17777-02 ........................ Body, Injector, 1700, Up Flow
23 ......................1 ..........................14802-xxc ....................... Throat, Injector, -xxc means Injector Size
24 ......................1 ..........................13771 .............................. O-ring, -012
25 ......................1 ..........................14801-xxc ....................... Nozzle, Injector, -xxc means Injector Size
26 ......................1 ..........................10229 .............................. Gasket, Injector Cap, 1600
27 ......................1 ..........................10228 .............................. Cap, Injector
28 ......................2 ..........................14804 .............................. Screw, Hex Head Mach, 10 - 24 x 2 3/4
29 ......................1 ..........................15413 .............................. Fitting, Elbow, Male, 1/2T X 3/8NPT
*Upflow Only
Not Shown:
..........................1 ..........................17996 .............................. Disperser, Air, Injector
..........................1 ..........................41493-00 ........................ Label, Blank, BLFC, 1710
