Fleck 2900S - 2300 Safety Brine Valve

Page 37

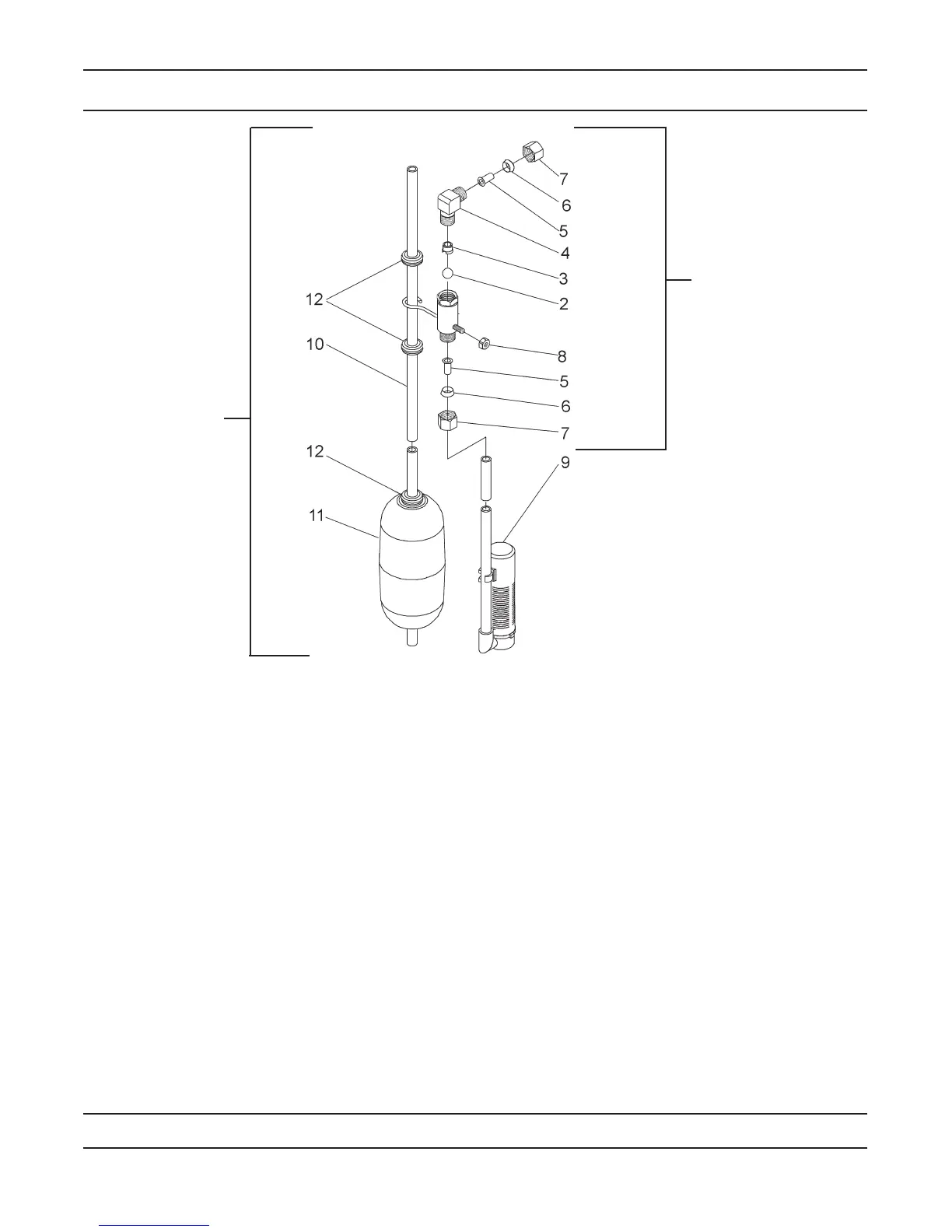

2300 Safety Brine Valve
Item No. Quantity Part No. Description
1 ..................... 1 .......................60027-FF ....................Safety Brine Valve Body, 2300, Fitting Facing Arm
1A ................... 1 .......................60027-FFS ..................Safety Brine Valve Body, 2300, Fitting Facing Stud
2 ..................... 1 .......................10138 ..........................Ball, 3/8”, Brass
3 ..................... 1 .......................11566 ..........................Ball Stop, Slow Fill
4 ..................... 1 .......................10328 ..........................Fitting, Elbow, 90 Deg. 1/4 NPT x 3/8 Tube
5 ..................... 1 .......................10332 ..........................Fitting, Insert, 3/8
6 ..................... 1 .......................10330 ..........................Fitting, Sleeve, 3/8 Celcon
7 ..................... 1 .......................10329 ..........................Fitting, Tube, 3/8 Nut, Brass
8 ..................... 1 .......................10186 ..........................Nut, Hex, 10-32
9 ..................... 1 .......................60002-34 ....................Air Check, #500, 34” Long
.................................................60003-34 ....................Air Check, #500, HW, 34” Tube
10 ................... 1 .......................10149 ..........................Rod, Float
11 ...................1 .......................10700 ..........................Float Assembly, White
12 ................... 3 .......................10150 ..........................Grommet, .30 Dia
13 ................... 1 .......................60028-30 ....................Float Assembly, White
13A ................. 1 .......................60028-30SAN .............Float Assembly, San, Hot Water
For Service Assembly Numbers, See the Back of this Manual
60027REVA
13
1
