Fleck 2900S - 1650 Brine System Assembly

Page 28

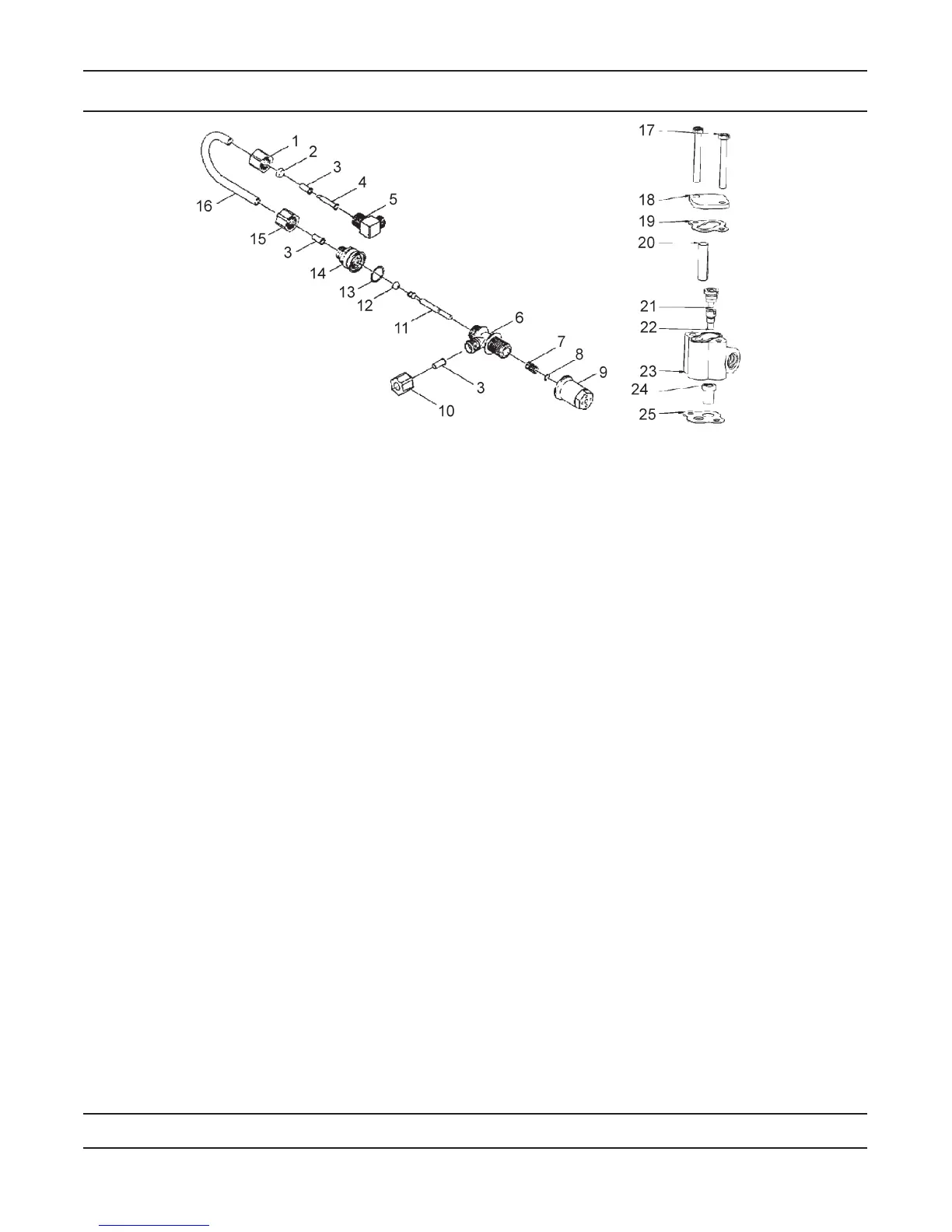

1650 Brine System Assembly
60011_REVC
Item No. Quantity Part No. Description
1 ................... 1 .................... 10329 ......................Fitting, Tube, 3/8 Nut, Brass
2 ................... 1 .................... 10330 ......................Fitting, Sleeve, 3/8 Celcon
3 ................... 3 .................... 10332 ......................Fitting, Insert, 3/8
4 ................... 1 .................... 12767 ......................Screen, Brine
5 ................... 1 .................... 10328 ......................Fitting, Elbow, 90 Deg 1/4 NPT x 3/8T
6 ................... 1 .................... 17884 ......................Brine Valve Body Assembly, 1650
7 ................... 1 .................... 10249 ......................Spring, Brine Valve
8 ................... 1 .................... 10250 ......................Ring, Retaining
9 ................... 1 .................... 17906 ......................Guide, Brine Valve Stem
10 ................. 1 .................... 19625 ......................Nut Assy, 3/8”, Plastic
11 ................. 1 .................... 12552-02 .................Brine Valve Stem, 1600, with Seat
12 ................. 1 .................... 12626 ......................Seat, Brine Valve
13 ................. 1 .................... 16924 ......................O-ring, -018
14 ................. 1 .................... 60020-25 .................BLFC, 1650, .25 GPM, Plastic
..................... 1 .................... 60020-50 .................BLFC, 1650, .50 GPM, Plastic
.................... 1 .................... 60020-100 ...............BLFC, 1650, 1.0 GPM, Plastic
15 ................. 1 .................... 19625 ......................Nut Assembly, 3/8”, Plastic
16 ................. 1 .................... 16508-01 .................Tube, Brine Valve, 2850/2900
..................... 1 .................... 40027 ......................Tube, Brine Valve, 2510
..................... 1 .................... 42184 ......................Tube, Brine Valve, 2850s
..................... 1 .................... 12774 ......................Tube, Brine Valve, 1500
..................... 1 .................... 15221 ......................Tube, Brine Valve, 2750
.................... 1 .................... 41683* .....................Tube, Brine Valve, UF, 1600/1650
17 ................. 2 .................... 10692 ......................Screw, Slot Hex Hd, 10 - 24X 18-8 Stainless Steel
18 ................. 1 .................... 11893 ......................Cap, Injector, Stainless Steel
19 ................. 1 .................... 10229 ......................Gasket, Injector Cap, 1600
20 ................. 1 .................... 10227 ......................Screen, Injector
21 ................. 1 .................... 10913-xx .................Nozzle, Injector, -xx means injector size
22 ................. 1 .................... 10914-xx .................Throat, Injector, -xx means injector size
23 ................. 1 .................... 17776 ......................Body, Injector, 1600
..................... 1 .................... 17776-02* ...............Body, Injector, 1600 Upflow
24 ................. 1 .................... 16221 ......................Disperser, Air
25 ................. 1 .................... 14805 ......................Gasket, Injector Body, 1600/1700
*Upflow Only
For Service Assembly Numbers, See the Back of this Manual
