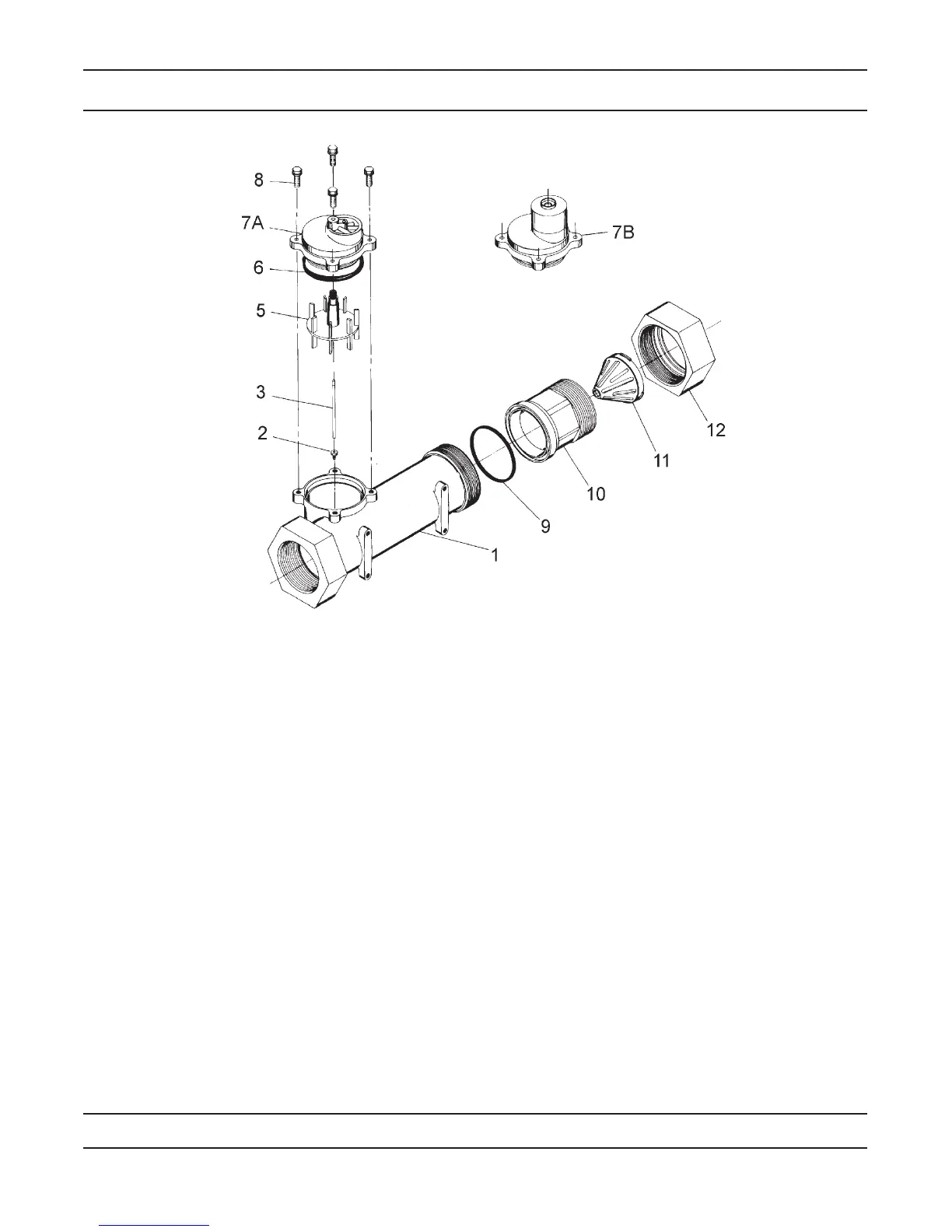

2” Brass Meter Assembly
Item No. Quantity Part No. Description
1 ................... 1 .................... 14456 ......................Body, Meter, 2”
2 ................... 1 .................... 15532 ......................Seat, Impeller Shaft, Hex
3 ................... 1 .................... 15432 ......................Shaft
5 ................... 1 .................... 15374 ......................Impeller Assy, 2” Meter
6 ................... 1 .................... 13847 ......................O-ring, -137, Std/560CD, Meter
7A ................ 1 .................... 14038 ......................Meter Cap Assembly, Std, Plastic
7B ................ 1 .................... 15150 ......................Meter Cap Assembly, 3/4” to 2”, Ext Plastic, Pdl
8 ................... 4 .................... 12112 ......................Screw, Hex Hd Mach, 10-24 x 1/2 18-8 Stainless STeel
9 ................... 1 .................... 14679 ......................O-ring, -227, Meter
10 ................. 1 .................... 14568 ......................Fitting, Nipple, 2”
11 ................. 1 .................... 14680 ......................Flow Straightener
12 ................. 1 .................... 14569 ......................Nut, 2900 Meter
For Service Assembly Numbers, See the Back of this Manual
