Fleck 2900S - Page 47

Page 47

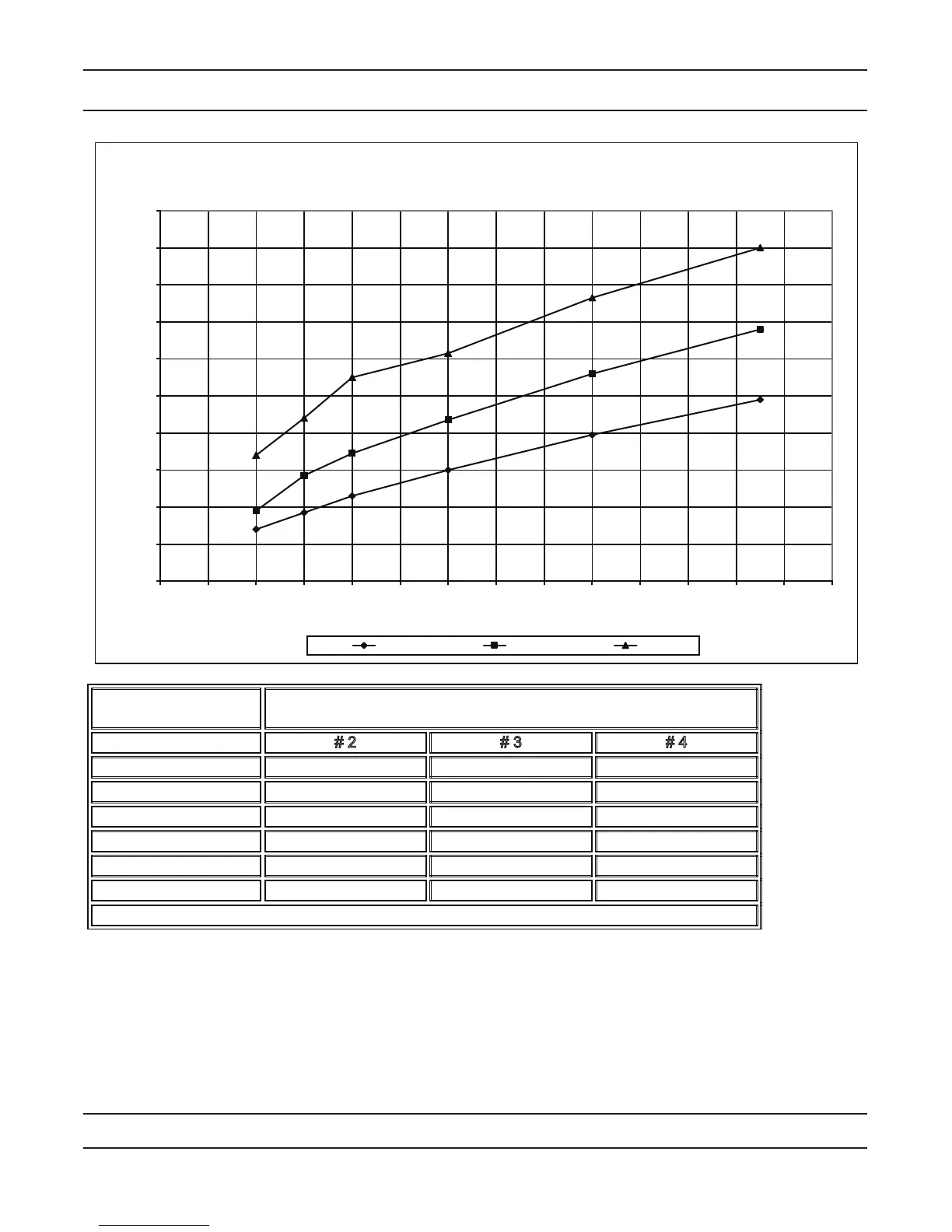

Flow Data & Injector Draw Rates - Downflow
0.40
0.60
0.80
1.00
1.20
1.40
1.60
1.80
2.00
2.20
2.40
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Inlet Pressure - psi
m p g - e t a R w o l F
# 2 # 3 # 4
1600
series injectors
Slow Rinse Rates - gpm
pressure
20 0.68 0.78 1.08
30 0.77 0.97 1.28
40 0.86 1.09 1.50
60 1.00 1.27 1.63
90 1.19 1.52 1.93
125 1.38 1.76 2.20
all injectors used the steel cap and an air disperser
TR22089-2900s Valve 1600 Series Injector Slow Rinse Rates
