Page 55

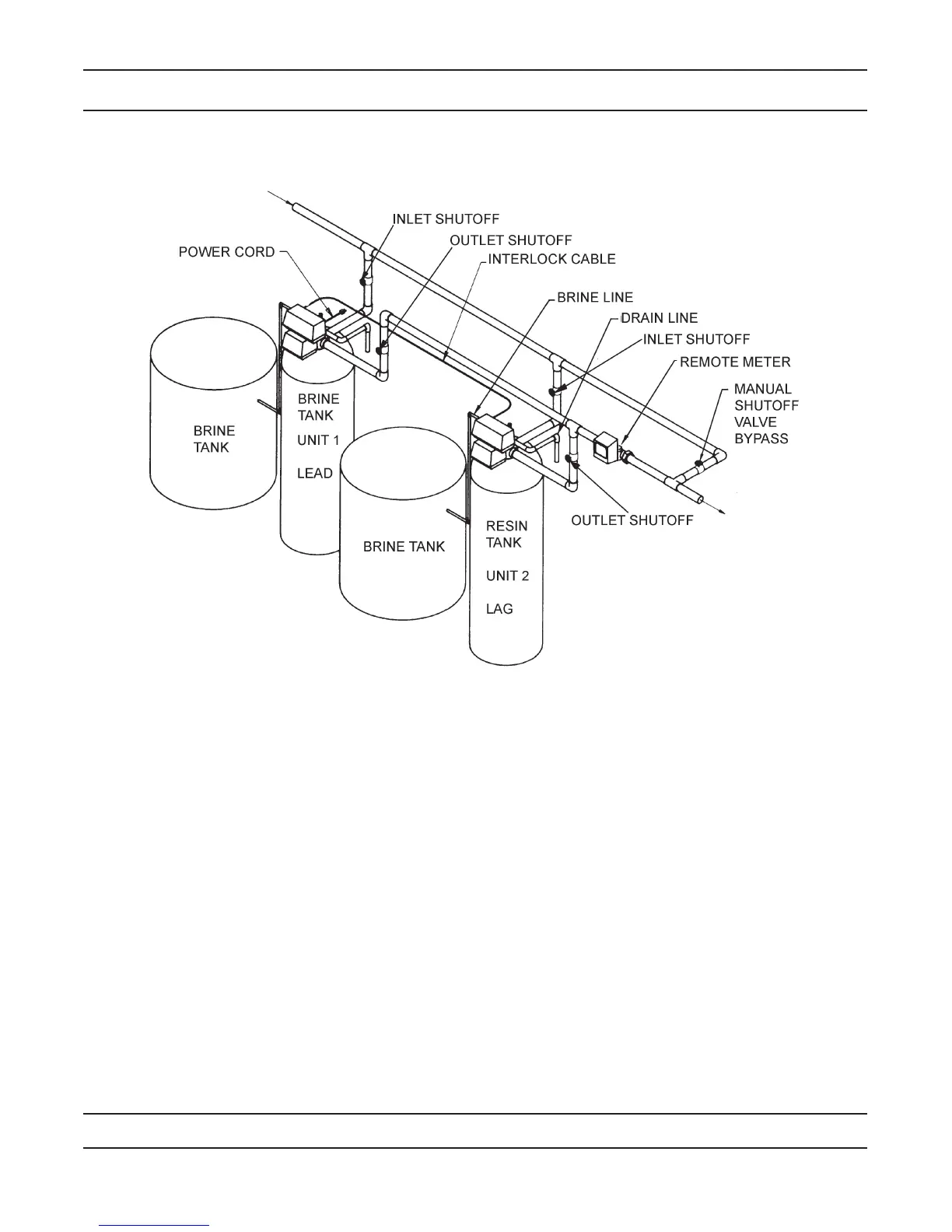

Plumbing Diagrams

System #6 - Twin Series Regeneration & System #7 - Twin Alternator Installation

NOTE: On System 7, the power cord is on unit 2.

NOTE: System 7 can run with either one or two brine tanks. Two brine tanks should be used if

regeneration is less than 4 hours.
