15

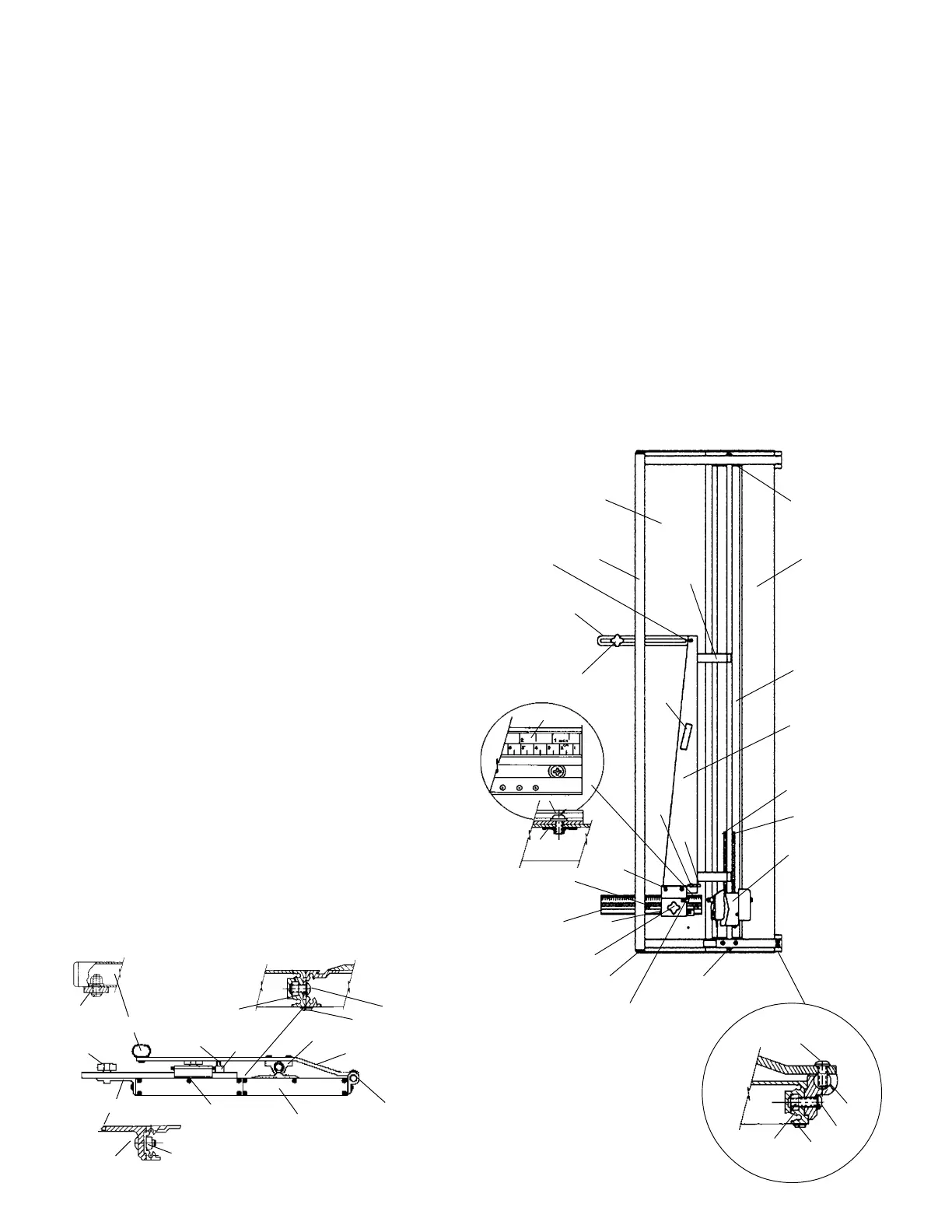

PARTS LISTS
32 12-041 End Cap 2
33 12-042 Mat Stop Knob 1
34 12-043 Washer 1
35 12-044 Mat Stop 1
36 12-244 Flat Head Screw 2
37 12-576 Comfort Knob 2
38 12-514 Key 1
39 12-049 Stop Screw 2
40 12-052 Wear Tape 5
41 12-053 Square Nut 9
42 12-054 End Cap Screw 20
43 12-056 Button Head Screw 4
44 12-318 Washer 1
45 12-125 Bracket 1
46 12-126 Flat Head Machine Screw 1
47 12-127 Lock Washer 1
48 12-128 Acorn Nut 1
49 12-543 Mat Guide Squaring Fixture 2
Ref. Part No. Description Quantity
1 12-500 Base R.H. 40" Capacity 1
1 12-001 Bass R.H. 48" Capacity 1
1 12-116 Base R.H. 60" Capacity 1
2 12-501 Base L.H. 40" Capacity 1
2 12-502 Base L.H. 48" Capacity 1
2 12-503 Base L.H. 60" Capacity 1
3 12-504 Mat Guide Slide Inch 1
3 12-554 Mat Guide Slide Metric 1
4 12-567 Mat Guide Slide Scale 1
5 12-583 Mat Guide Assy. 40” & 48” 1
5 12-584 Mat Guide Assy. 60" Capacity 1
6 12-507 Locking Strap 1
7 12-585 Handle 40" Capacity 1
7 12-568 Handle 48" Capacity 1
7 12-580 Handle 60" Capacity 1
8 12-569 Handle End Cap 2
9 12-570 Hinge Bracket 2
10 12-009 Hinge 2
11 12-010 Pivot Shaft 2
12 12-011 Shaft Bracket 2
13 12-012 Shoulder Screw 2
14 12-013 Spring Washer 2
15 12-014 Locator Pin 2
16 12-015 Mat Gage Imperial 1
16 12-550 Mat Gage Metric 1
17 12-509 Base Nut 2
18 12-586 Cutting Head Assembly 1
19 12-511 Clamp Assy. 40” 1
19 12-512 Clamp Assy. 48” 1
19 12-513 Clamp Assy. 60”
1
20 12-314 Button Head Screw 9
21 12-314 Button Head Screw 1
22 12-021 Button Head Cap Screw 6
23 12-022 Washer 2
24 12-023 Lock Nut 2
25 12-312 Flat Head Screw 1
26 12-571 Washer (Black) 1
27 12-573 Inch Scale 1
28 12-574 Metric Scale 1
29 12-035 Button 12
30 12-039 Scale Indicator 1
31 12-293 Pan Head Screw 1
Ref. Part No. Description Quantity
13-14
18
27
28
1
5
20
2
7
6
37-44
46-47
48
49
40
33-
34
35
36
25-
17
3
19
39
37-38
8
30-31
29
41
20
10
22
4
17
21-26
45
20 41
37-44
42
32
12
11
9
15
16
7
22-23
24
29
41
43
20
58
PIEZAS
1
2
4
5
6
78
9
10
11
9
12
15
16
13
14
17
17
1 Base
2 Guía de passe-partout
3 Asambly Gancho
4 Cabezal de corte
5 Asa del gancho
6 Tirador que traba la guía inferior
del passe-partout
7 Tirador que traba la guía superior
del passe-partout
8 Guía de deslizamiento del passe-partout
9 Pivote con bisagras
10 Correa
11 Parada medida superior
12 Parada medida inferior
13 Escala de parada superior
14 Brazo en escuadra
15 Parada del brazo en escuadra
16 Abrazadera del brazo en escuadra
17 Piezas para encuadrar
18 Guía de passe-partout con ángulos
3
18
