REAR FAN ANGLE ADJUSTMENT
21
The following steps will guide you through the adjustment and setup of the rear fans. You must have your receiver bound and
control surfaces working before completing these steps. You will also need to have the aircraft on a stand where the rear fans
can tilt and move freely.
1.
2.
NOTICE
Be sure to follow these steps closely as these steps are critical in making the aircraft perform as intended.
Failure to do so may result in an aircraft that is unflyable.

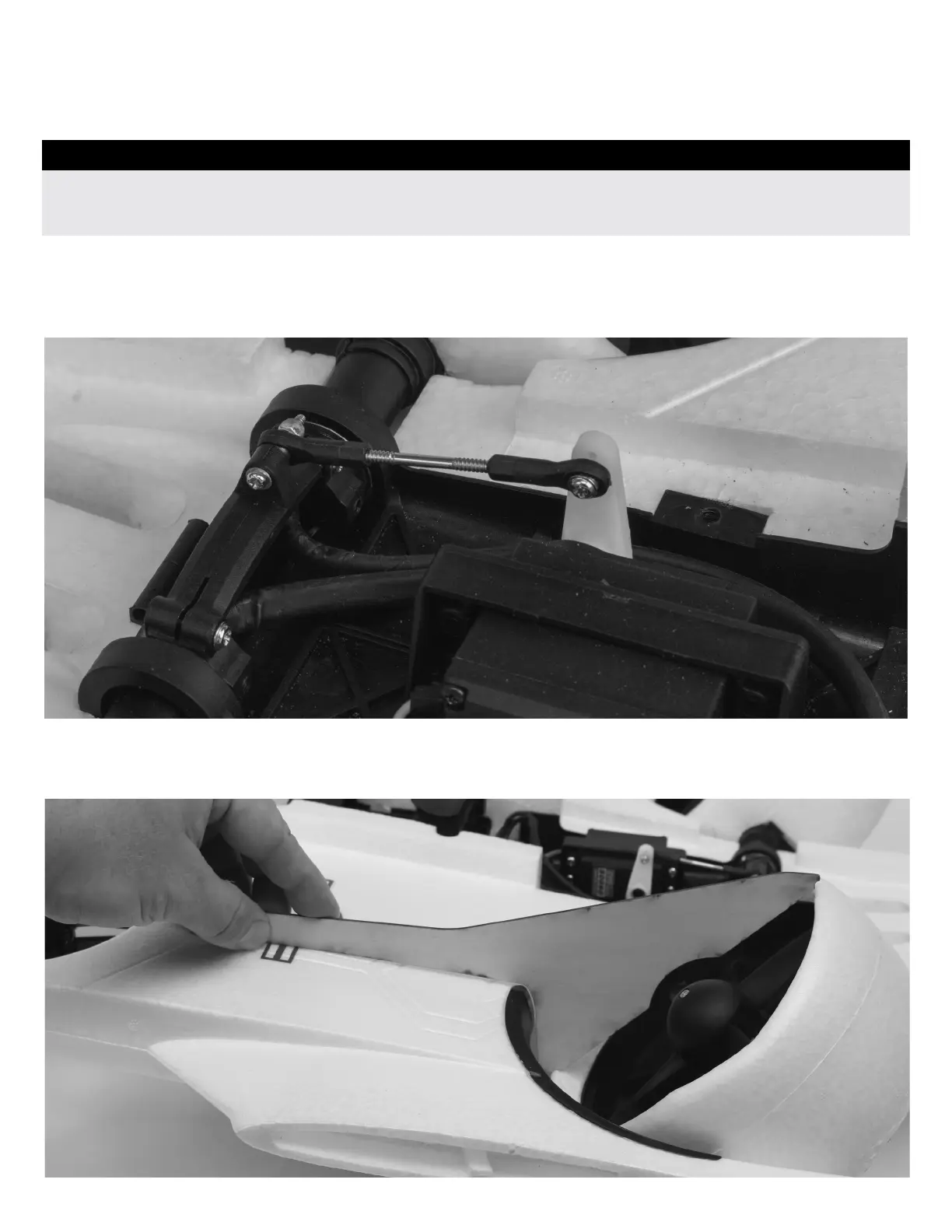

Verify that the tilt servo arm, linkage and tilt control horn are properly aligned with one another, and that all hardware is
tight. With your channel 6 switch set to the middle position (45 'Magic' Configuration), the servo arm should be
perpendicular (or near-perpendicular) to the servo body. The tilt control horn should be parallel (or near parallel) to the
servo arm.
Move your Flight Configuration switch (channel 6) to the 45 degree "Magic Mode" position. Align the provided 45 degree
gauge with the panel line on the top surface of the wing and the center of a rear fan. Adjust the tilt angle by shortening or
lengthening the linkage. Set the angle of the rear fans so that they match the provided gauge.
