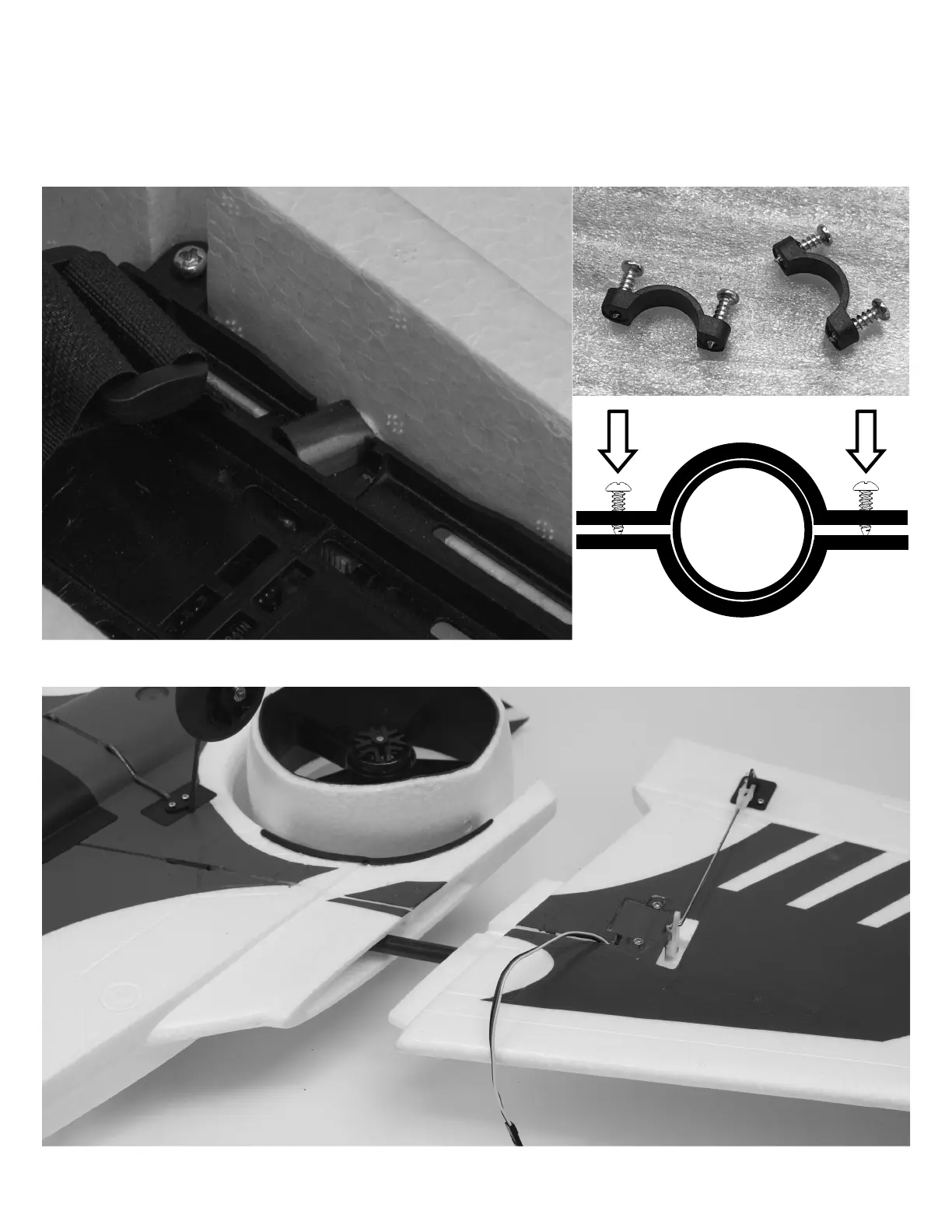

Remove the canopy hatch and locate the two wing tubes. Test fit each of the wing tubes into the wings and then into the fuselage. Slide
the wing tubes into the fuselage, being sure they engage fully with the battery tray. Use a #1 Phillips screwdriver and 4 M2x8 self-
tapping screws to secure the wing tube clamps in place over the wing tubes.
Partially slide one wing onto the appropriate wing tube, leaving room for you to connect the elevon servo lead to the servo extension in
the fuselage. Connect the servo lead to the extension, noting proper polarity.
MAIN WING INSTALLATION
27
Required Tools and Fasteners:
M2x8 Self-Tapping Screws Clear Tape
#1 Phillips Screwdriver
Wingtube
Battery Tray
Tube Clamp
