LANDING GEAR INSTALLATION (CONTINUED)
24
Required Tools and Fasteners:
1.5mm Hex Driver
1.
2.

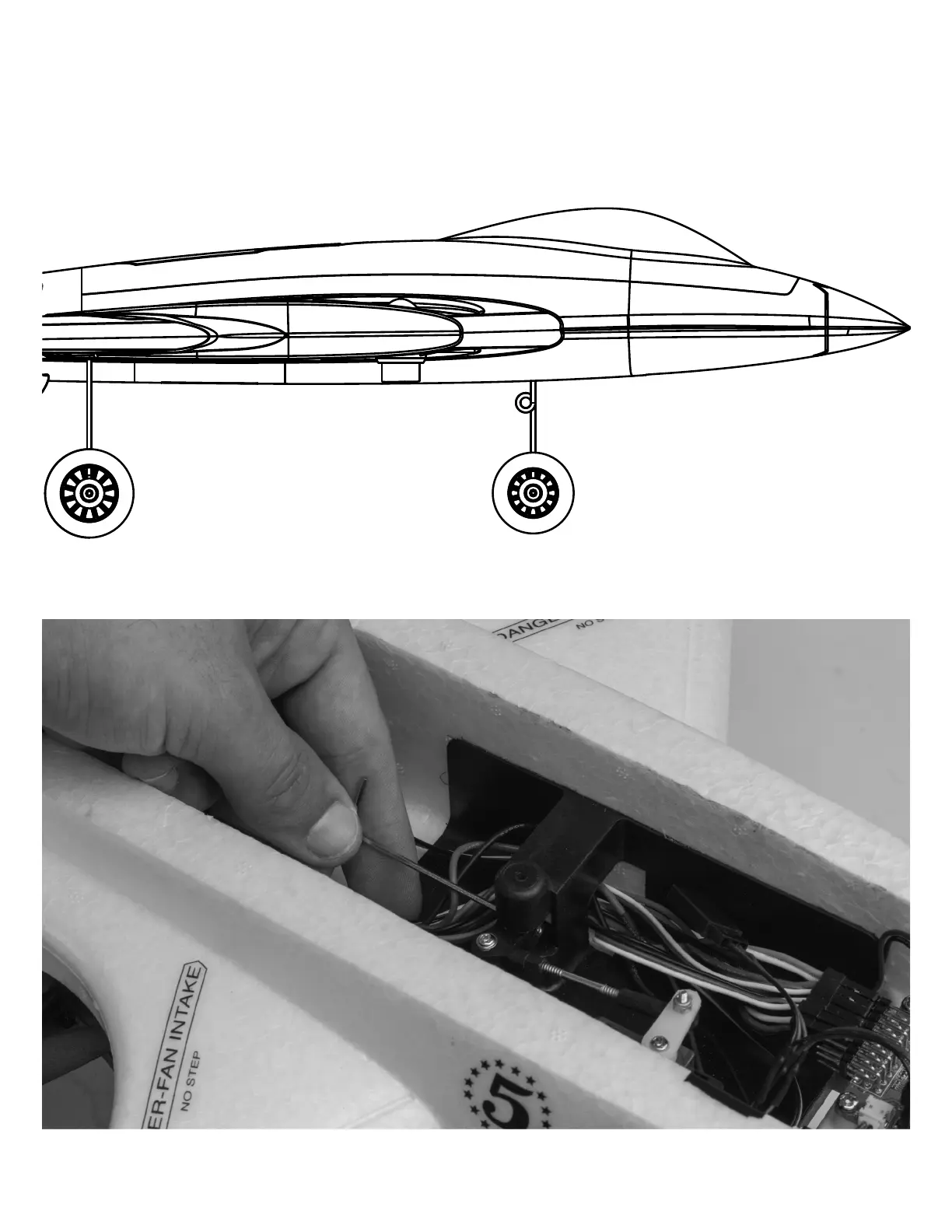

Locate the nose gear strut assembly. Insert the strut into the mount in the bottom of the fuselage and through the nose gear steering
arm. Be sure to orient the coil on the strut towards the rear of the aircraft. Insert the strut until it is flush with the top of the mount inside
the fuselage (under the battery hatch).
Use a 1.5mm hex driver to tighten the two set screws in the front and rear of the strut mount (inside the hatch). Do not overtighten, as
the set screws thread into the plastic and it is possible to strip the threads.
