3.
4.

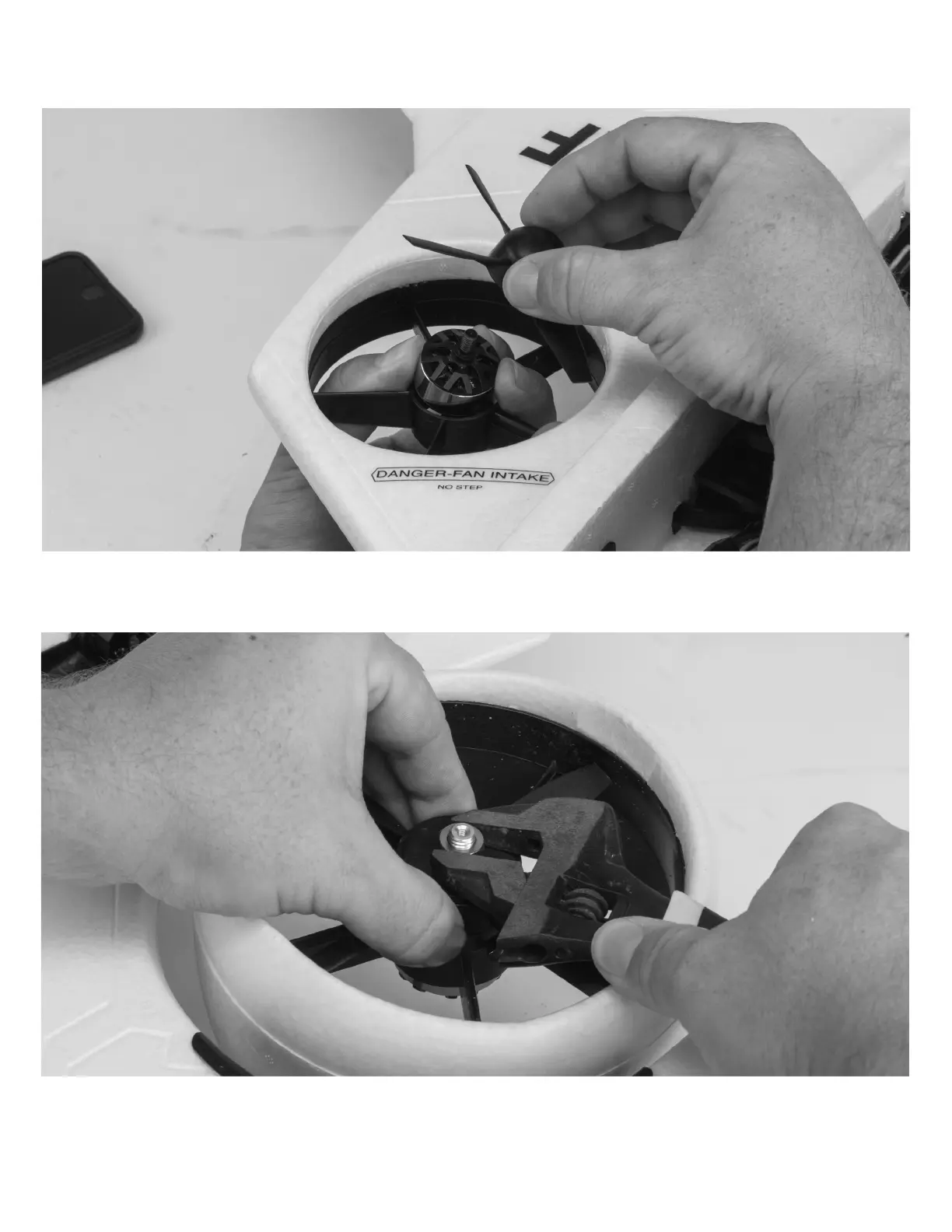

Turn the fans onto the motor shafts. Use a #1 Phillips screwdriver and the screws removed in step one to reattach the motors to the
airframe.
The rear motors use a traditional fan nut and spinner but do have different thread directions as with the front motors. Place the propeller
over the appropriate motor, paying close attention to the direction (reference the diagram on the previous page). Place a fan washer
over the fan on the motor shaft, followed by the fan nut. Tighten the nuts completely with an adjustable wrench.
FAN INSTALLATION (CONTINUED)
35
