15 of 59 GH-24, GH-30, GH-45, GH-60 Rev.003
USE OF TAP LUBRICATOR SYSTEM

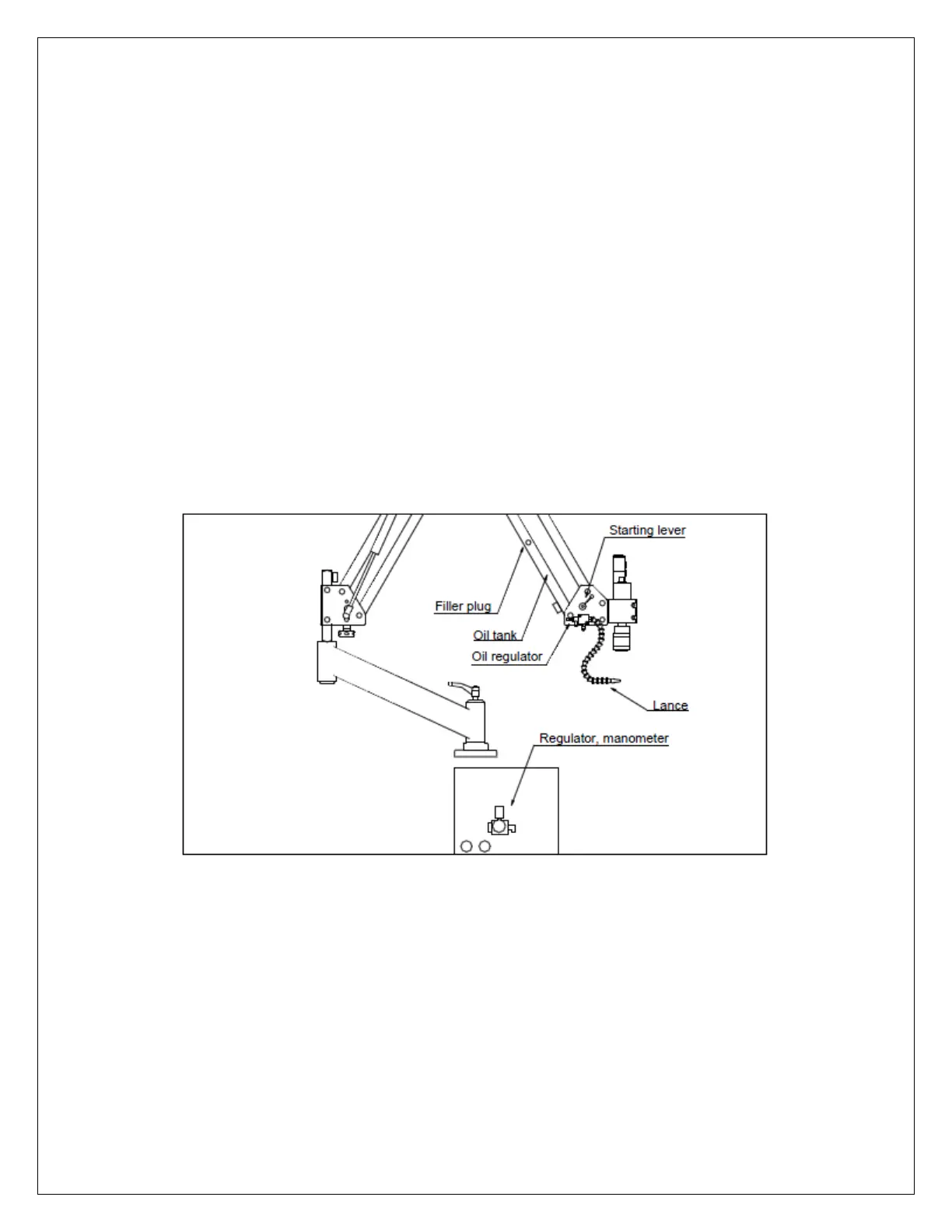

FlexArm includes a standard tap lubricator system on its tapping units. [Refer to diagram]
Ensure the air inlet and the arm’s air tube is connected to the regulator-manometer which is adjusted in
our factory.
Fill oil tank located in front lower arm: uncover the filler plug and fill with tapping oil to the maximum
level.
Press and hold the starting lever until you see atomized oil begin to leave for the lance tip. The first time,
the atomized oil will take time to reach the lance tip, but later uses will be much quicker.
Adjust the quantity of oil mixture released by adjusting the oil regulator mounted behind the lance.
The tap lubricator system can be used before, during and after tapping pieces.
Caution! Don´t use corrosive oil, it can damage the system's plastic valves.
