11 of 59 GH-24, GH-30, GH-45, GH-60 Rev.003
ARM TO POWER PACK INSTALLATION
1. After the FlexArm is securely fastened to its mounting surface it can be hooked up to the power pack.

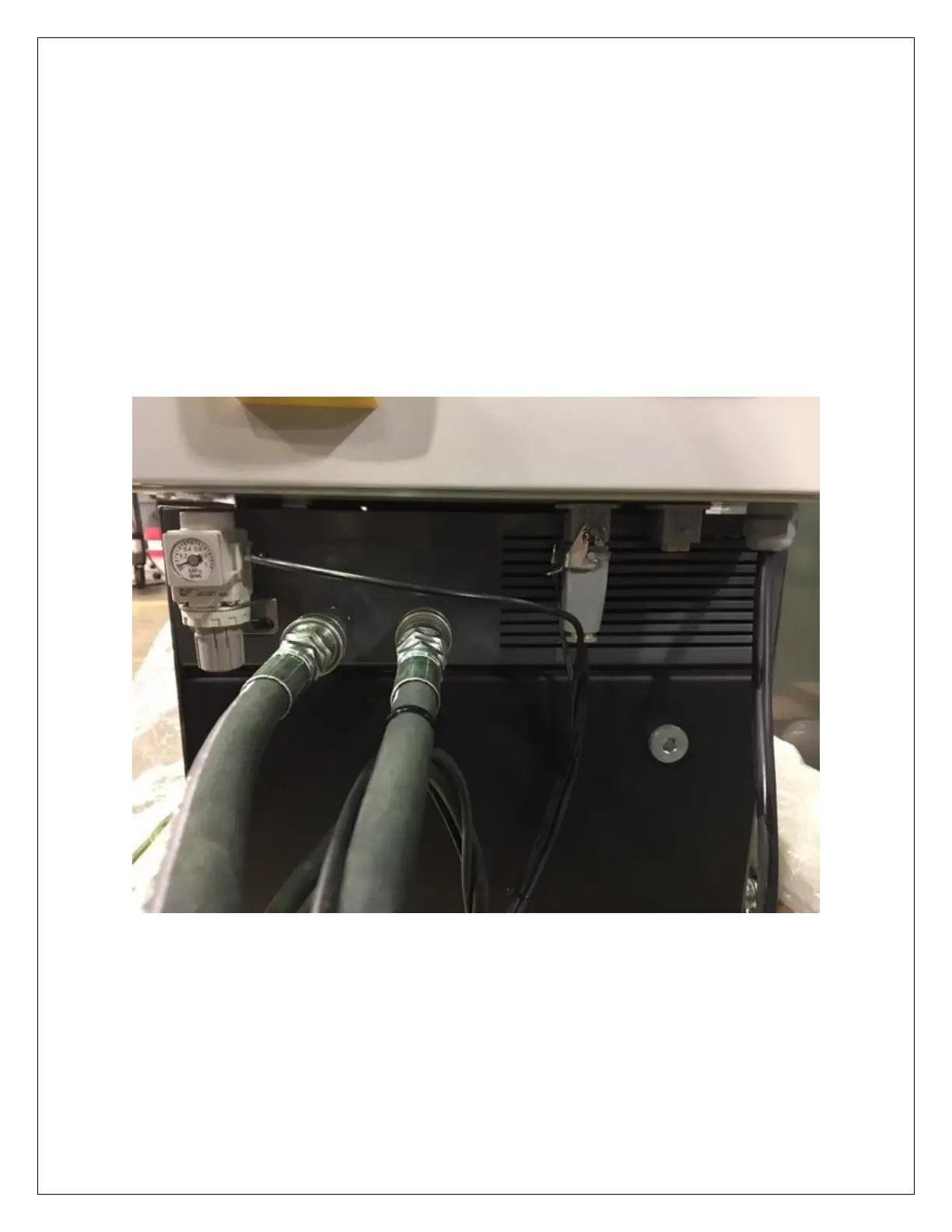

2. First, connect the two hydraulic hoses on the arm to the quick-disconnect hose couplings on the power
pack. There should be a male and female fitting.
3. Next attach the male four pin connector on the arm to the left female receptacle on the power pack.
There should be a locking clip on the female receptacle notating the proper one to attach to.
4. The four pin female connecter on the right is only to be used with arms adapted with digital depth
control (Instructions for digital depth control are found in a separate manual).
5. Lastly the air line can be connected to the regulator-manometer shown on the far left. This is to be
used with units that have the semi-tap lubricator option (Instructions for this option to be found on
page 15).
