USE OF MULTI-POSTION HEAD
 Items needed:
o Adjustable wrench and or socket.
o Metric Allen wrench set
o Magnetic plug
NOTE: The GHM-24 has handles instead of bolts so no tools are needed.
 Please follow the steps below to switch from vertical tapping to horizontal tapping.

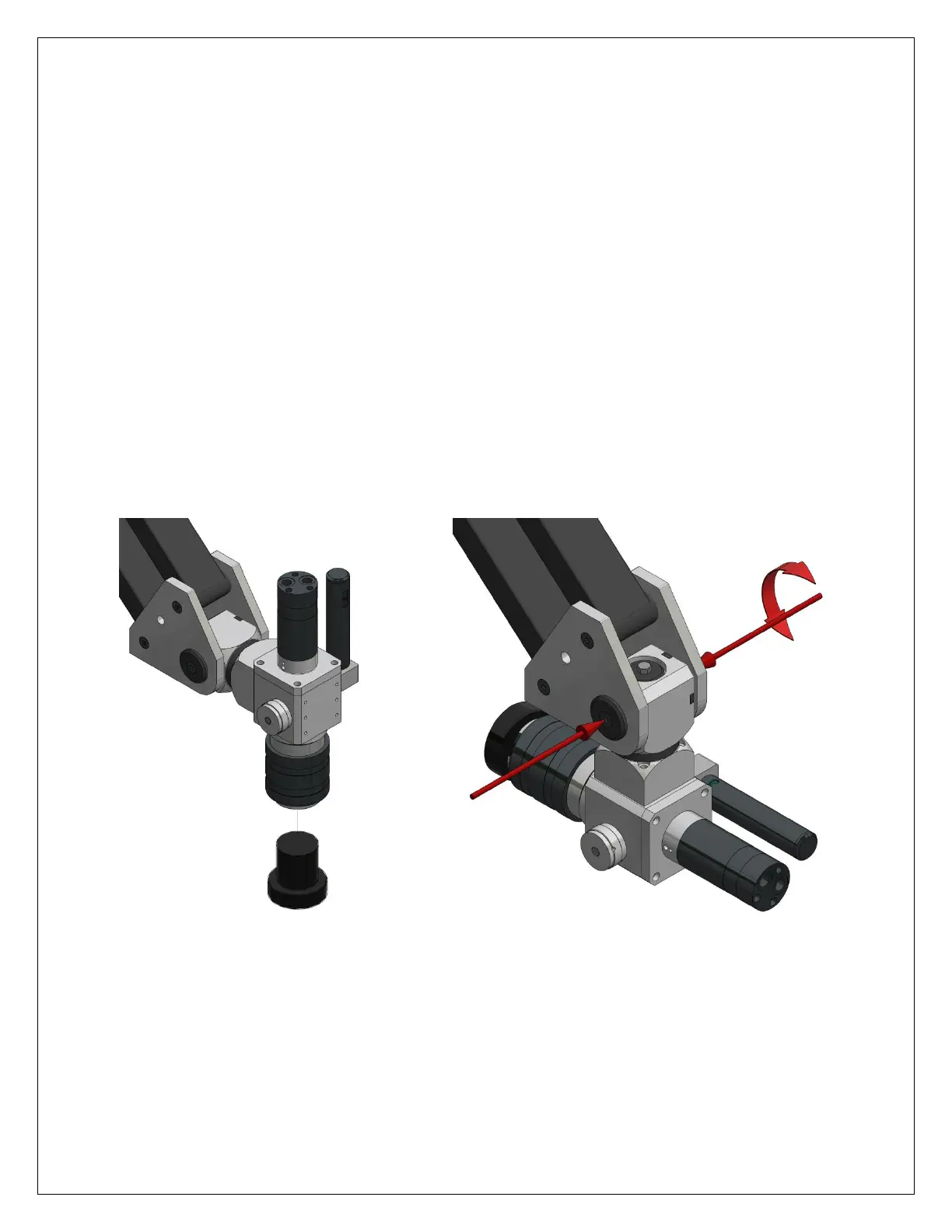

1. Insert the magnetic plug into the chuck (Figure 1).
2. Next you will need an adjustable wrench or socket and a metric Allen wrench to loosen the two bolts
on the side plates and move the head down into horizontal orientation (Figure 2).
3. Leave these bolts on the side plates loose.
4. When the head is used as shown in figure 2 and figure 3 you will need to break loose the hex head bolt
on top. A wrench or socket will be needed for this.
Figure 1
Figure 2
