18 of 59 GH-24, GH-30, GH-45, GH-60 Rev.003
OPERATING INSTRUCTIONS
1. Always wear safety glasses and use proper safety precautions when operating this unit. Gloves are not
recommended when operating this machine.
CAUTION: ALWAYS SECURE THE WORK PIECE TO THE TABLE BEFORE OPERATING THIS MACHINE

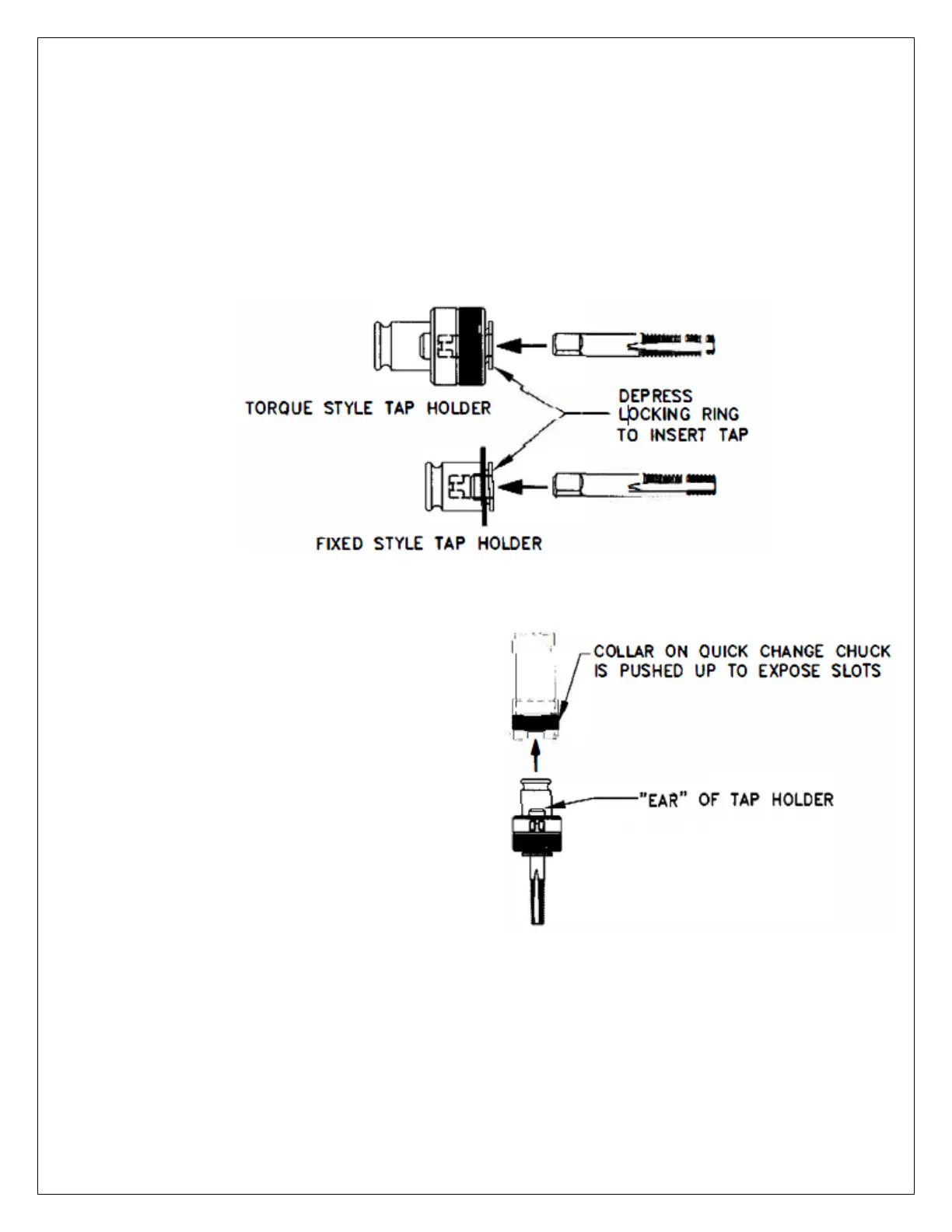

2. Select the correct tap holder for the tap size required. Insert the tap into the holder by depressing the
locking ring. Seat the top square into the tap holder; release the locking ring.
3. Push up on the collar of the quick change chuck before inserting the tap holder.
4. Insert the tap holder into the quick change chuck.
Turn the holder until the "ears" of the holder
locate the slots of the chuck. Push up to lock the
holder into position.
5. Position the hydraulic motor vertically above the
hole being tapped. There can be no obstruction
that interferes with the downward path of the
tap holder or prohibits the tap from completing
the required thread depth.
6. Actuate the hydraulic motor by depressing the
forward button and gently guide the tap down to the hole (typically use lower gear; slow speed, for
larger tap sizes).
