6 Installation FLUXUS F70x
UMFLUXUS_F7V4-6-2EN, 2017-10-01 47
6.5.2 Installation of the Temperature Probe (Response Time 50 s)
Select the installation instructions of the supplied clasp:
• for the installation with a clasp see section 6.5.2.1
• for the installation with a FLEXIM clasp see section 6.5.2.2
• for the installation with a quick release clasp see section 6.5.2.3
6.5.2.1 Installation with a Clasp
• Cut the tension strap to length (pipe circumference + at least 120 mm).
• Make sure that part (2) of the clasp is on top of part (1) (see Fig. 6.57 a). The hooks of part (2) have to be on the outer
side of the clasp.
• Pull approx. 20 mm of the tension strap through the slot of the clasp to fix the clasp to the tension strap (see Fig. 6.57 b).
• Bend the end of the tension strap.
• Position the temperature probe on the pipe (see Fig. 6.58).
• Place the tension strap around the temperature probe and the pipe.
• Insert the tension strap through the parts (2) and (1) of the clasp.
• Pull the tension strap firmly and engage it in the inner hooks of the clasp.
• Tighten the screws of the clasps.
6.5.2.2 Installation with a FLEXIM Clasp
• Cut the tension strap to length (pipe circumference + at least 120 mm).
• Insert approx. 20 mm of the tension strap into the slot of the clasp (see Fig. 6.59).
• Bend the end of the tension strap.
• Position the temperature probe on the pipe (see Fig. 6.58).
• Place the tension strap around the temperature probe and the pipe.
• Insert the tension strap through the parts (2) and (1) of the clasp.
• Pull the tension strap firmly and engage it in the inner hooks of the clasp.
• Tighten the screws of the clasp.
Note! In case of great temperature differences, it is recommended to thermally insulate the temperature
probe from the environment.

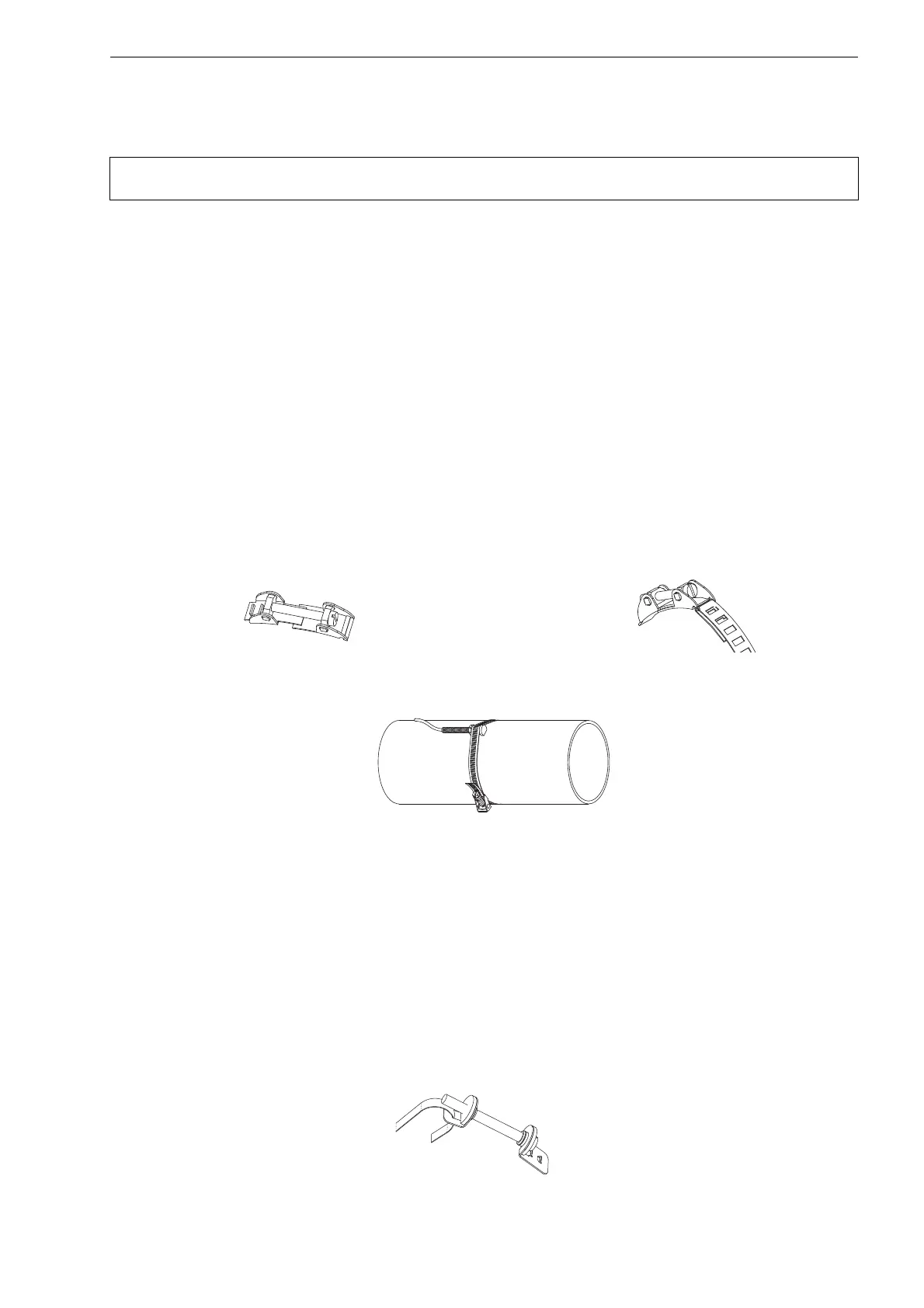

Fig. 6.57: Clasp
Fig. 6.58: Temperature probe on the pipe
Fig. 6.59: FLEXIM clasp
