FlexRadio Systems FLEX-5000 Series User Manual

S E T U P F O R M C H A P T E R 4

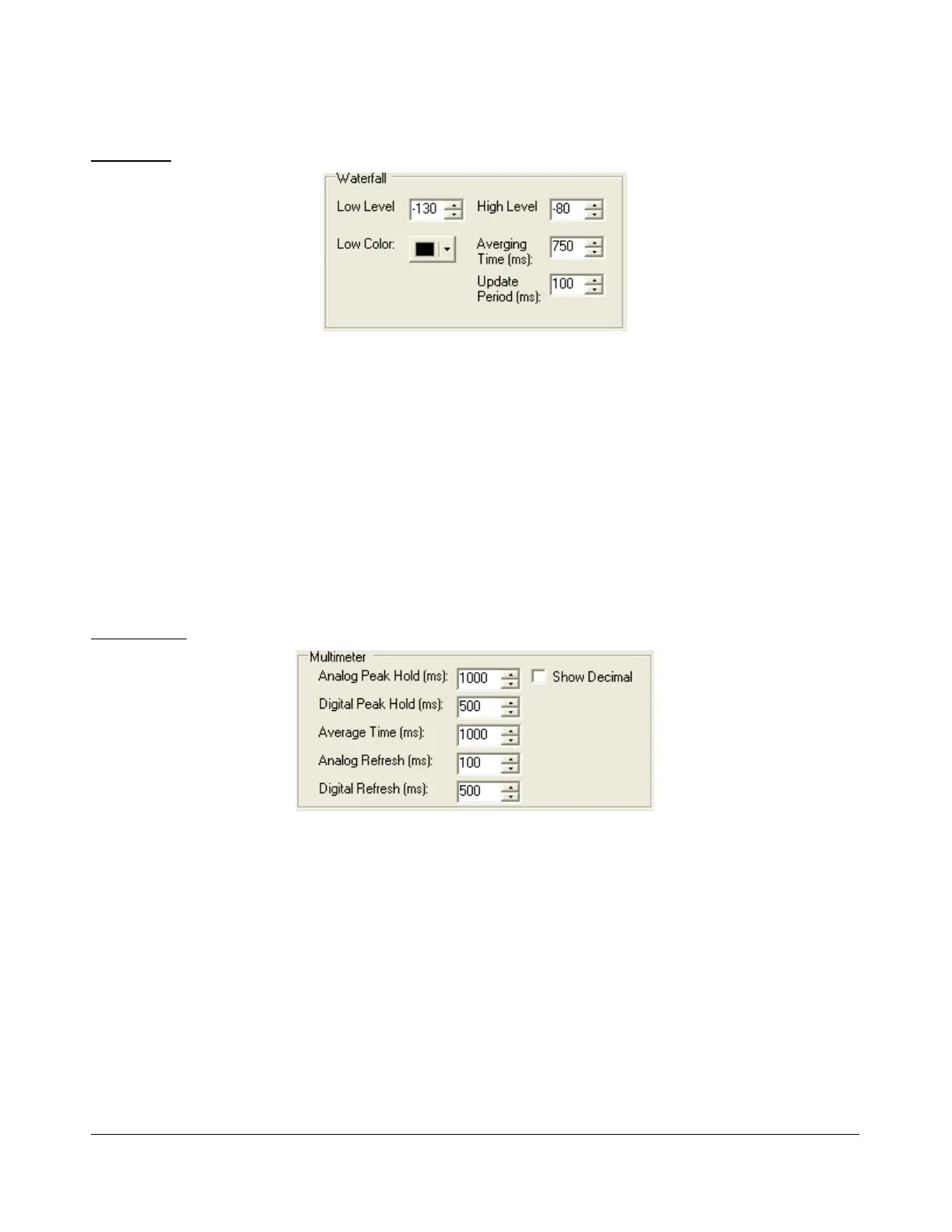

Waterfall
Figure 83: Waterfall
 Low Level: The lower end of the dynamic range to view in dBm. Signals at or below this level
will use the Low Color.
 High Level: The high end of the dynamic range to view in dBm.
 Low Color: Color used if the signal level is at or below the Low Level.
 Averaging Time: Time in ms over which the signal is averaged for the Waterfall Display. The
AVG button on the Front console has no effect for the waterfall.
 Update Period: Time in ms between updates to the Waterfall. The higher the period, the
slower the Waterfall will progress from top to bottom of the display.
Multimeter
Figure 84: Multimeter Display options
 Analog Peak Hold (ms): The length of time in milliseconds to hold the peak on the analog
edge or bar meter. Raising this value will lengthen the hold time and peaks will be held for a
longer period of time.
 Digital Peak Hold (ms): The length of time in milliseconds to hold the digital meter when
using the Fwd Pwr TX Meter. Raising this value will lengthen the hold time and peaks will be
held for a longer period of time.
 Average Time (ms): The time over which the signal is averaged when using the SigAvg RX
Meter setting.
 Analog Refresh (ms): Controls how often the analog meter is updated.
 Digital Refresh (ms): Controls how often the digital meter is updated.
97  2003-2008 FlexRadio Systems
