H A R D W A R E I N S T A L L A T I O N C H A P T E R 1
(4) Internal Speaker (FLEX-5000C Only)
The FLEX-5000C does not require external, powered speakers as it comes with an internal speaker.
However, you will need to use external powered speakers to take advantage of spatial diversity (such
as binaural audio or spatially positioning multiple audio channels).
Back Panel
Note: The right half of the FLEX-5000C back panel is identical to the back
panel of the FLEX-5000A; the left half has all the connections for the
built in computer.
The FLEX-5000 has the ability to connect up to three different antennas to the receiver and or
transmitter and up to two additional receive only antennas. All of these are assignable on a per band
basis. The antenna connections are as follows:
6 2003-2008 FlexRadio Systems

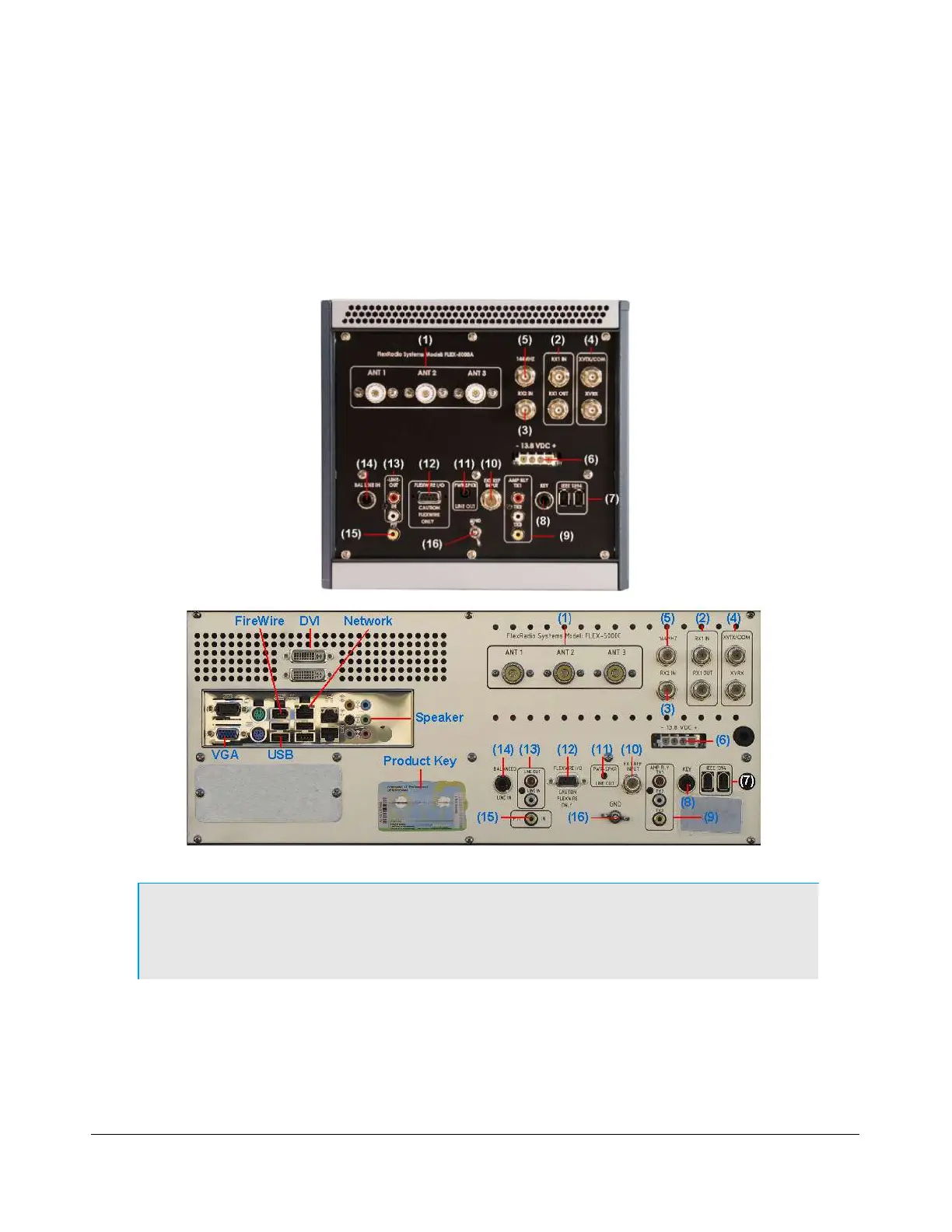

Figure 2: FLEX-5000A (top) and FLEX-5000C (bottom) Back Panel
