Clave 23+ Instruction Manual v1.4
1. General
The steam sterilizer described in this manual is intended for the sterilization of instruments and
tools in the medical, dental, beauty, veterinarian and tattoo fields. It is a fully automatic steam
sterilizer with 134 °C and 121 °C sterilization temperatures. This sterilizer is in compliance with
the European Directive 93/42/CEE, Health Canada, ISO 13485, ETL, CSA and it has been
produced in accordance with the EN 13060.

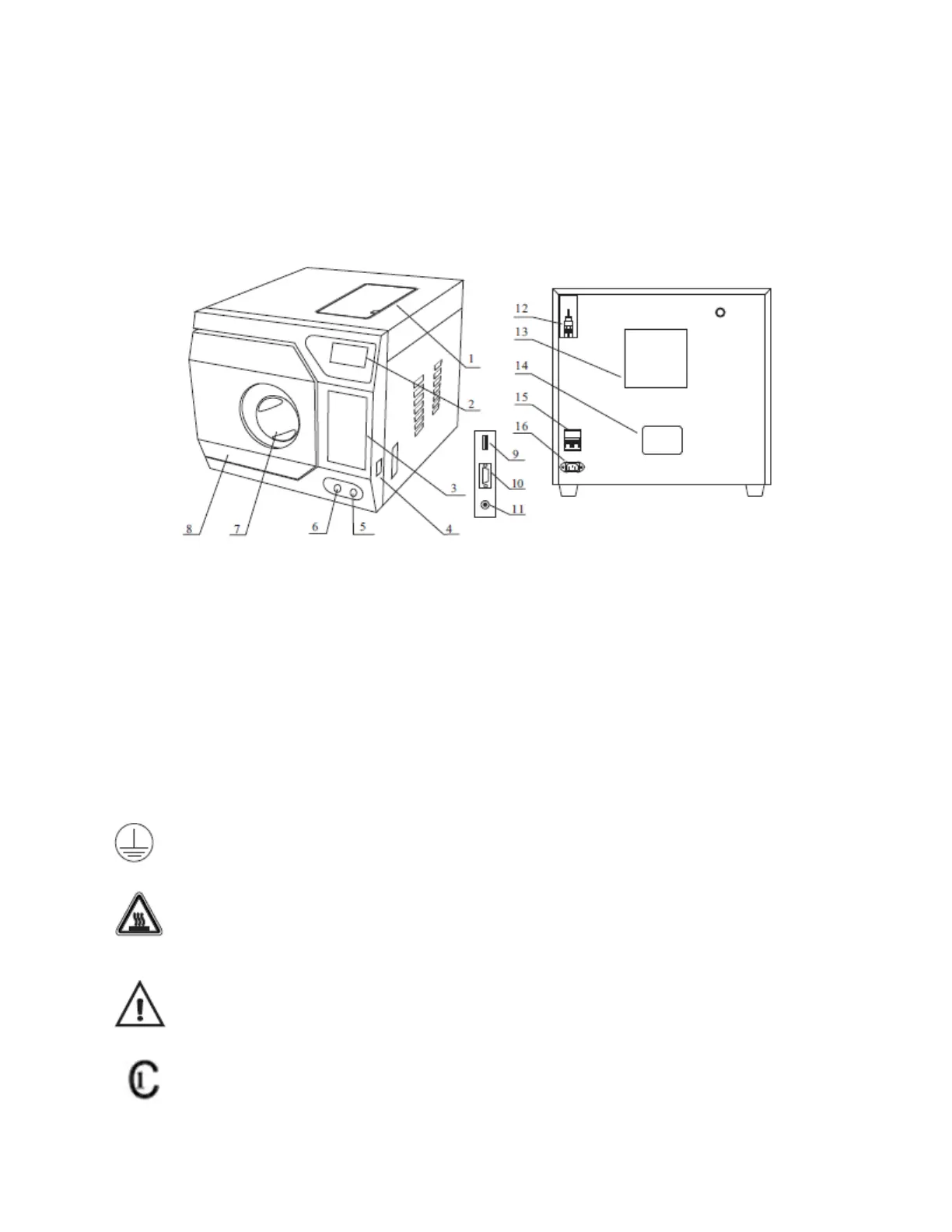

1. Distilled water tank 9. USB port
2. LCD screen 10. Printer data port
3. Control panel 11. Printer power jack
4. Power switch 12. Safety valve
5. Distilled water tank drain port 13. Condenser exhaust
6. Used water tank drain port 14. Rating plate
7. Door handle 15. Circuit breaker
8. Door 16. Power socket
Security Notice
For safe operation, please pay close attention to the warning symbols below which can be found
throughout this manual. Please read carefully and understand the contents of this manual prior to
operating this instrument.
Protective conductor terminal
This symbol is for grounding protection inside the machine.
HOT SURFACE
This symbol is visible on the front of the panel after opening the door and on the rear
enclosure near the exhaust outlet of the fan.
Important safety information.
This symbol is used to draw the attention of the reader to particularly important notions
for operator safety.
This product has been tested to the requirements of CAN/CSA-C22.2 No. 61010-1,
second edition, including Amendment 1.
To Next Page
