FD200CPU-7 Ver P Installation Instructions
7
Revision B, May 2008

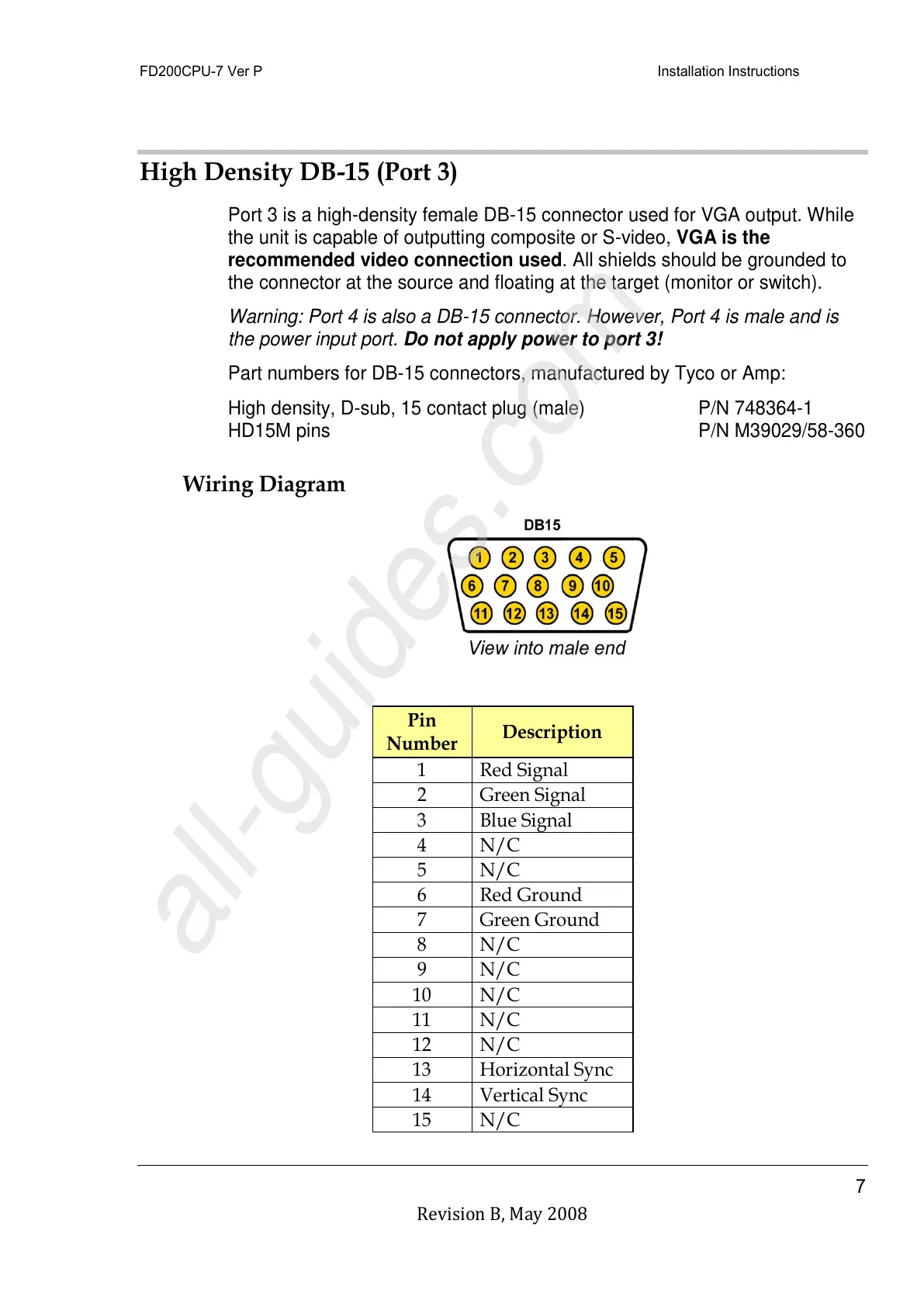

High Density DB-15 (Port 3)
Port 3 is a high-density female DB-15 connector used for VGA output. While
the unit is capable of outputting composite or S-video, VGA is the
recommended video connection used. All shields should be grounded to
the connector at the source and floating at the target (monitor or switch).
Warning: Port 4 is also a DB-15 connector. However, Port 4 is male and is
the power input port. Do not apply power to port 3!
Part numbers for DB-15 connectors, manufactured by Tyco or Amp:
High density, D-sub, 15 contact plug (male) P/N 748364-1
HD15M pins P/N M39029/58-360
Wiring Diagram
Pin
Number
Description
1
Red Signal
2
Green Signal
3
Blue Signal
4
N/C
5
N/C
6
Red Ground
7
Green Ground
8
N/C
9
N/C
10
N/C
11
N/C
12
N/C
13
Horizontal Sync
14
Vertical Sync
15
N/C
