High Density DB-15 (Port 4)
Port 4 is a high-density male DB-15 connector used to power the unit, power
12VDC accessories such as displays, receive FMS data, and supply
composite and s-video output.
Warning: Port 3 is also a DB-15 connector. However, Port 3 is female and is
the VGA output port. Do not apply power to port 3!
Part numbers for DB-15 connectors, manufactured by Tyco or Amp:
High density, D-sub, 15 contact receptacle (female) P/N 748565-1
HD15F pins P/N M39029/57-354

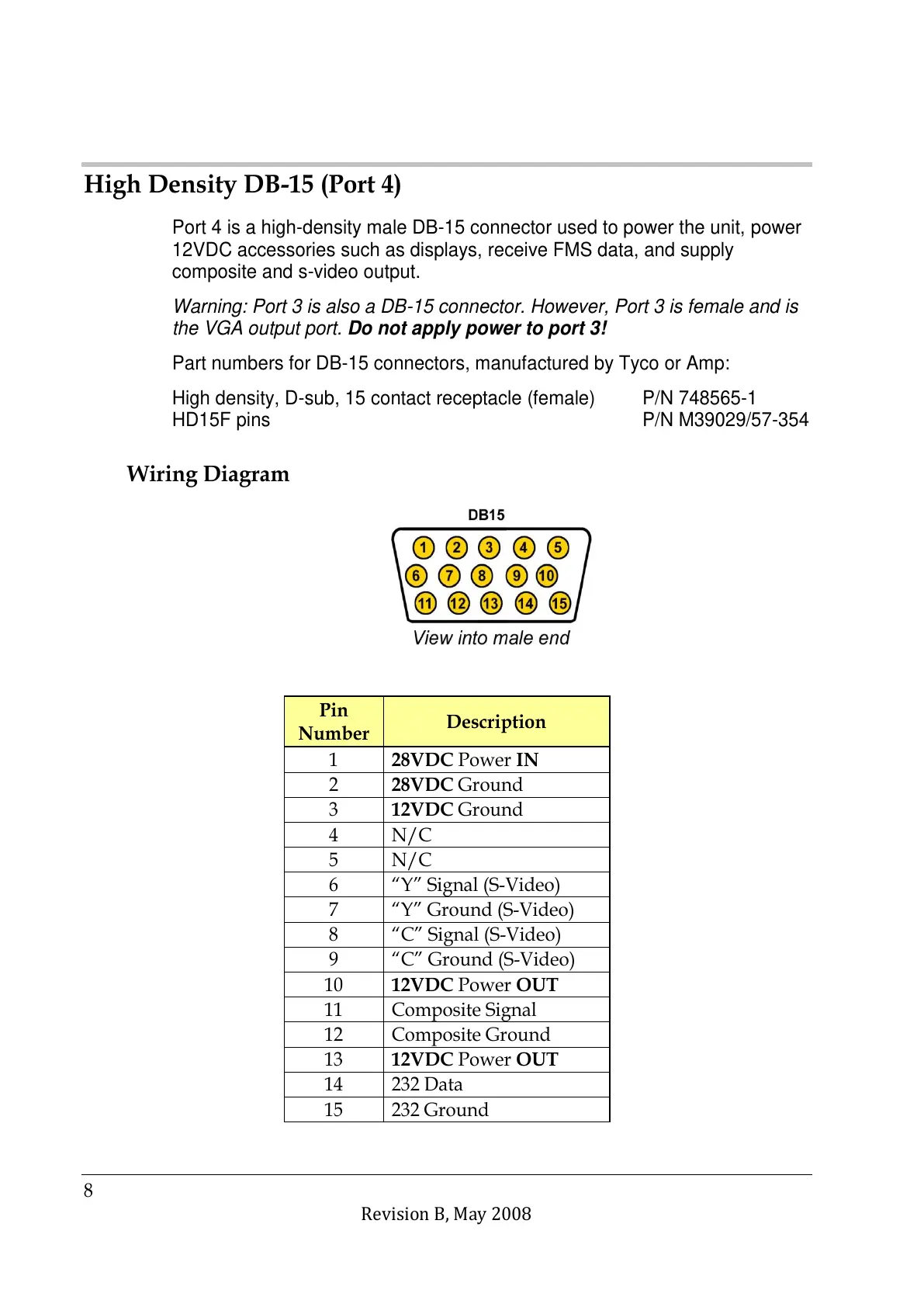

Wiring Diagram
