4
Revision B, May 2008
Some aircraft are prone to AC noise - we recommend adding to the
composite source a 75Ohm video isolation transformer such as Deerfield
Laboratory, Inc. Part No. 162-1 (www.deerfieldlab.com, (650) 632-4090). In
most cases this should be added to the video output of the source.
NOTE: VGA is highly recommended over Composite or S-Video output.

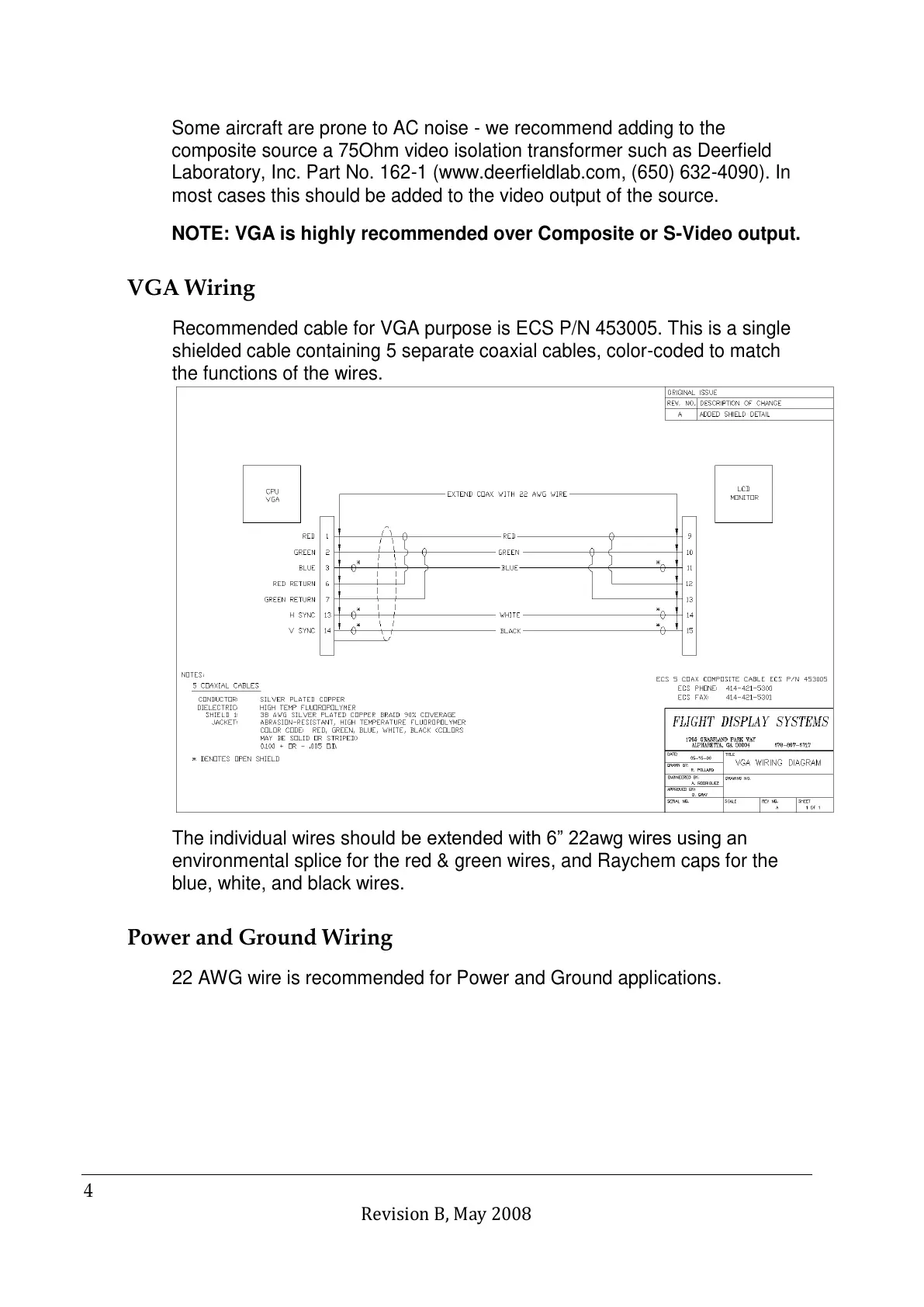

VGA Wiring
Recommended cable for VGA purpose is ECS P/N 453005. This is a single
shielded cable containing 5 separate coaxial cables, color-coded to match
the functions of the wires.
The individual wires should be extended with 6” 22awg wires using an
environmental splice for the red & green wires, and Raychem caps for the
blue, white, and black wires.
Power and Ground Wiring
22 AWG wire is recommended for Power and Ground applications.
