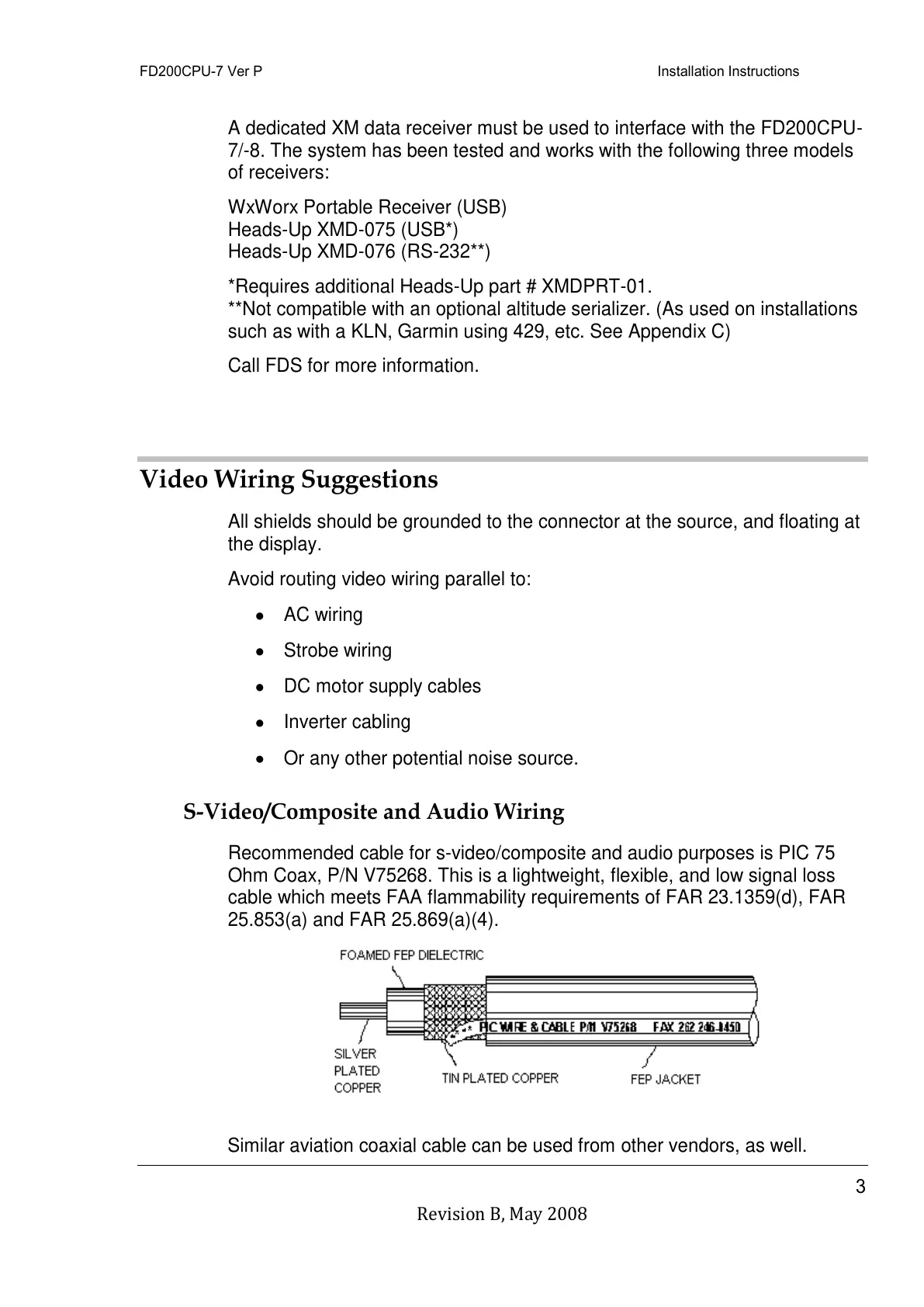

FD200CPU-7 Ver P Installation Instructions
3
Revision B, May 2008
A dedicated XM data receiver must be used to interface with the FD200CPU-
7/-8. The system has been tested and works with the following three models
of receivers:
WxWorx Portable Receiver (USB)
Heads-Up XMD-075 (USB*)
Heads-Up XMD-076 (RS-232**)
*Requires additional Heads-Up part # XMDPRT-01.
**Not compatible with an optional altitude serializer. (As used on installations
such as with a KLN, Garmin using 429, etc. See Appendix C)
Call FDS for more information.
Video Wiring Suggestions
All shields should be grounded to the connector at the source, and floating at
the display.
Avoid routing video wiring parallel to:
AC wiring
Strobe wiring
DC motor supply cables
Inverter cabling
Or any other potential noise source.
S-Video/Composite and Audio Wiring
Recommended cable for s-video/composite and audio purposes is PIC 75
Ohm Coax, P/N V75268. This is a lightweight, flexible, and low signal loss
cable which meets FAA flammability requirements of FAR 23.1359(d), FAR
25.853(a) and FAR 25.869(a)(4).
Similar aviation coaxial cable can be used from other vendors, as well.
