q

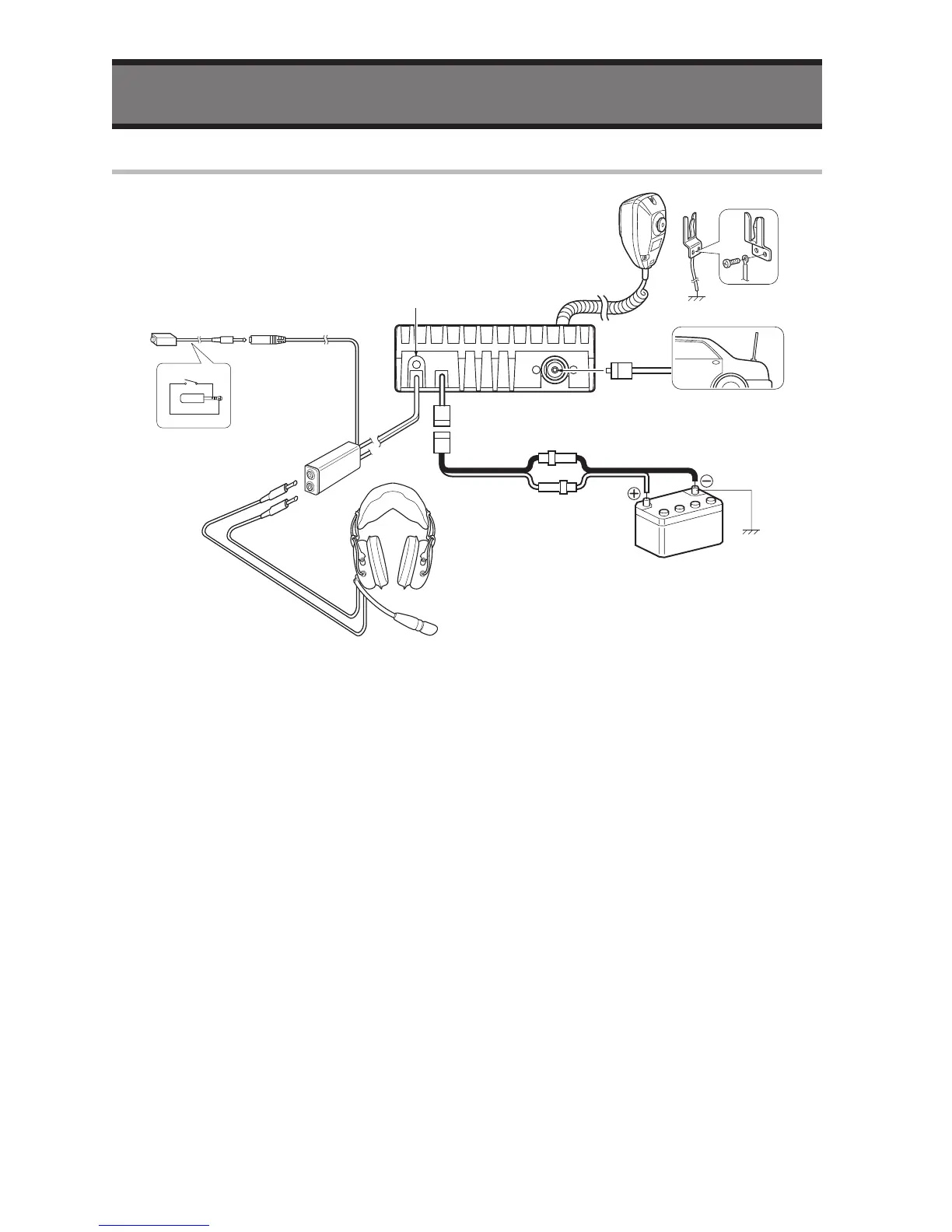

Connect an Antenna and the Antenna Connector
• The Antenna that has PL-259 type connector (50homs, SWR: less than 3) is available
to connect.
w
Connect Power Cable to Battery of the vehicle
• The available voltage of the Battery is 12V or 24V, do not connect the other type.
e
Connect a Speaker (3rd party’s one) to External Speaker Jack
• The available impedance of the speaker is 8 ohms, and the rated input power must be
more than 10 W.
r
Connect the Headset (supplied by 3rd party) to Optional Jack.
t
Connecting the Microphone hanger to earth of the vehicle
enables Microphone Hanger function.
