Theory of thermography
20

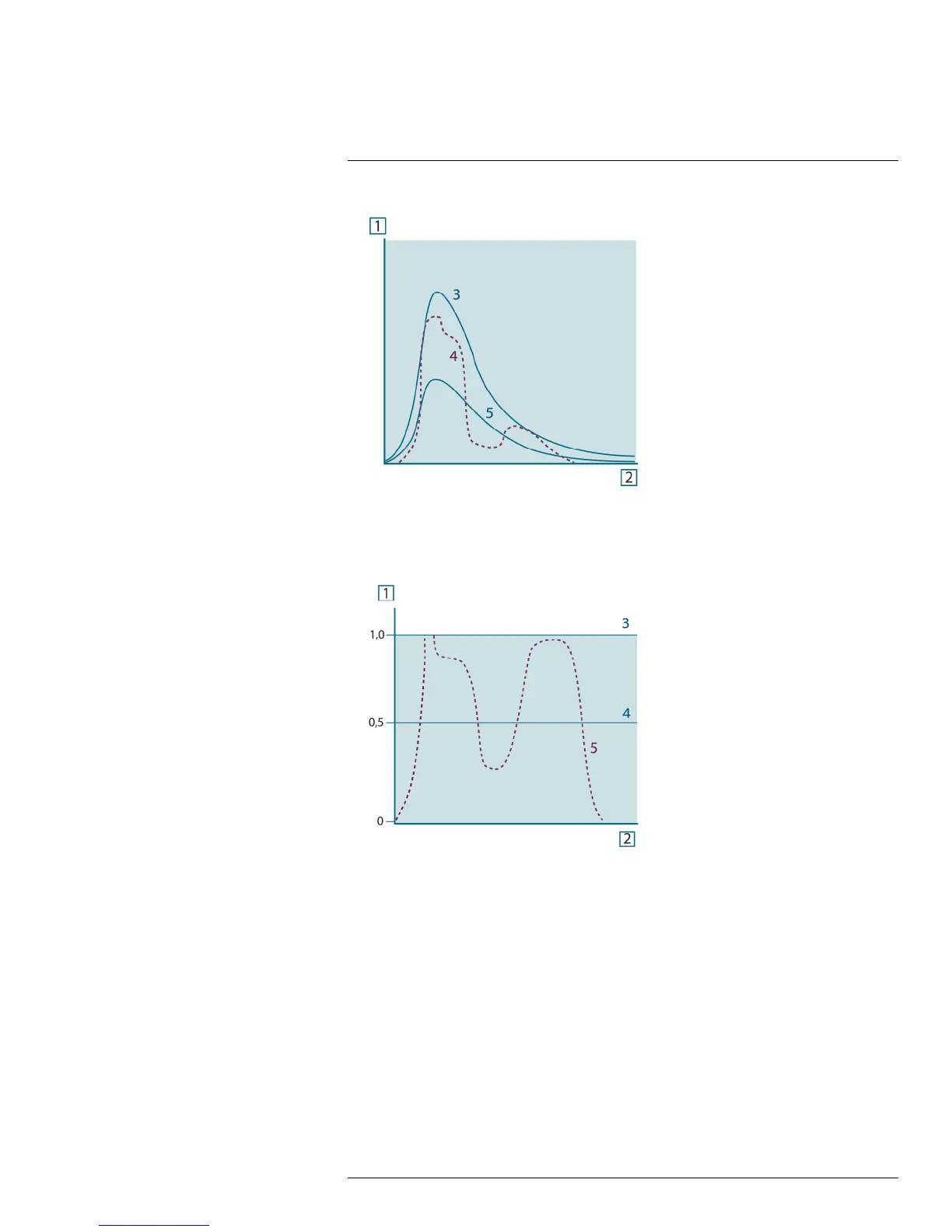

Figure 20.8 Spectral radiant emittance of three types of radiators. 1: Spectral radiant emittance; 2: Wave-
length; 3: Blackbody; 4: Selective radiator; 5: Graybody.
Figure 20.9 Spectral emissivity of three types of radiators. 1: Spectral emissivity; 2: Wavelength; 3: Black-
body; 4: Graybody; 5: Selective radiator.
20.4 Infrared semi-transparent materials
Consider now a non-metallic, semi-transparent body – let us say, in the form of a thick flat
plate of plastic material. When the plate is heated, radiation generated within its volume
must work its way toward the surfaces through the material in which it is partially absorbed.
Moreover, when it arrives at the surface, some of it is reflected back into the interior. The
back-reflected radiation is again partially absorbed, but some of it arrives at the other sur-
face, through which most of it escapes; part of it is reflected back again. Although the pro-
gressive reflections become weaker and weaker they must all be added up when the total
emittance of the plate is sought. When the resulting geometrical series is summed, the ef-
fective emissivity of a semi-transparent plate is obtained as:
