27.2.6.2 Commented infrared images

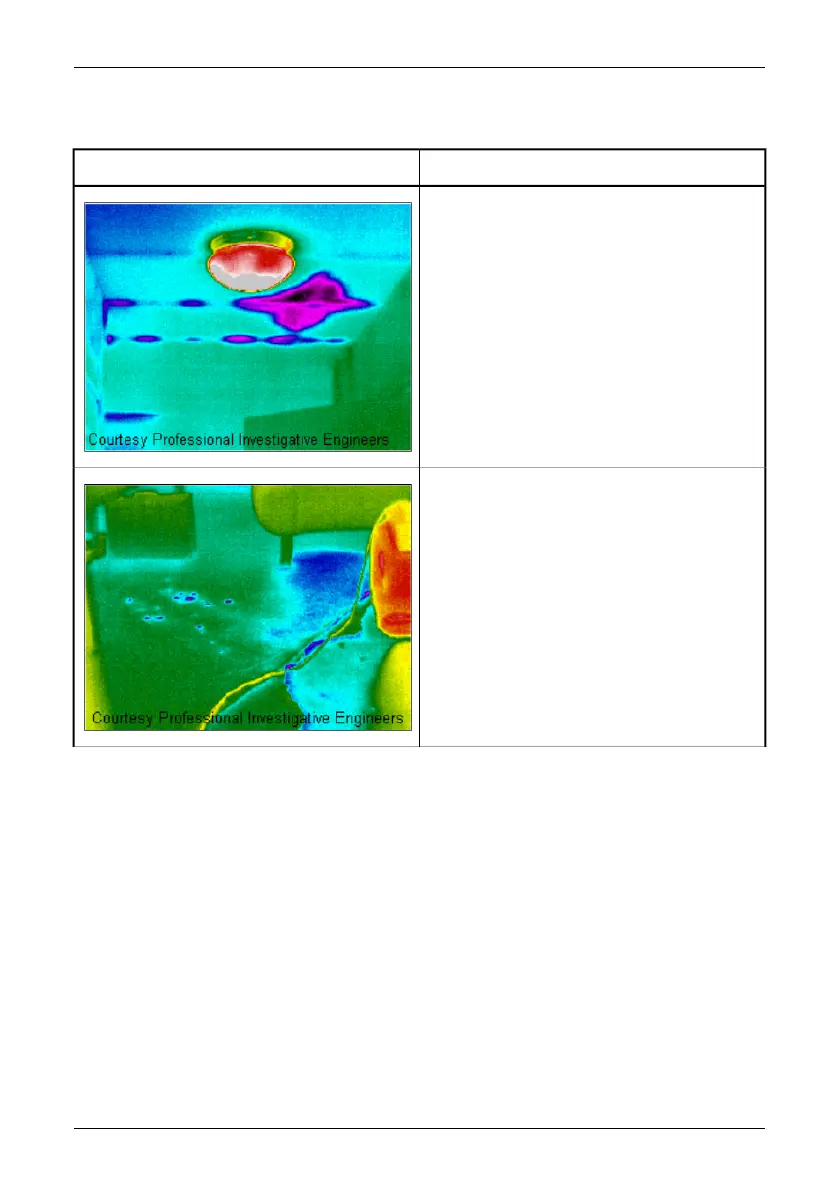

This section includes a few typical infrared images of plumbing breaks & leaks.
CommentInfrared image
Moisture migration tracking along steel joist chan-
nels inside ceiling of a single family home where
a plumbing line had ruptured.
10555503;a1
Water from plumbing leak was found to have mi-
grated farther than originally anticipated by the
contractor during remediation techniques of cutting
back carpet and installing dehumidifiers.
10555603;a1
146 Publ. No. 1558792 Rev. a460 – ENGLISH (EN) – July 1, 2010
27 – Introduction to building thermography
