15.3
Removing
the
battery

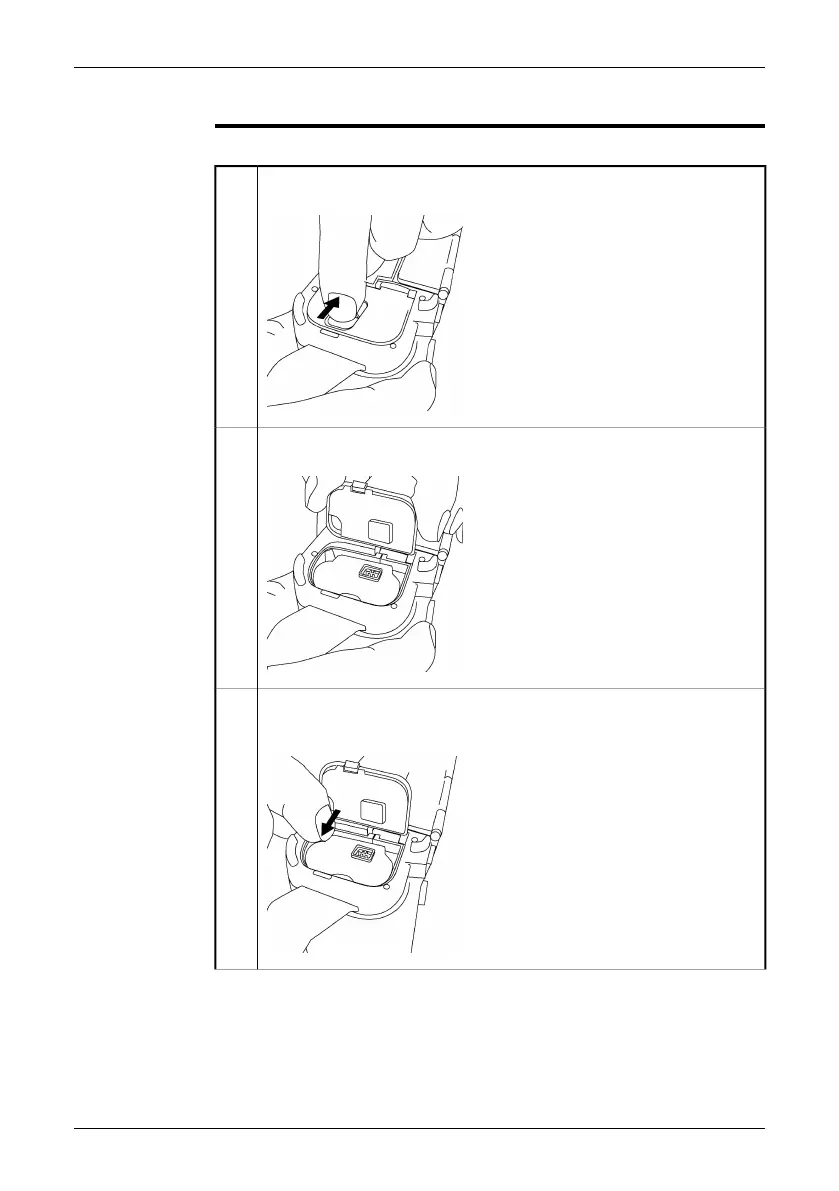

Procedure
Follow
this
procedure
to
remove
the
battery:
Push
the
release
button
on
the
battery
compartment
cover
to
unlock
it.
10759603;a1
1
Open
the
cover
to
the
battery
compartment.
10763903;a1
2
Push
the
red
release
button
in
the
direction
of
the
arrow
to
unlock
the
bat-
tery
.
10760003;a2
3
Publ.
No.
1558792
Rev
.
a460
–
ENGLISH
(EN)
–
July
1,
2010
51
15
–
Handling
the
camera
62
64
