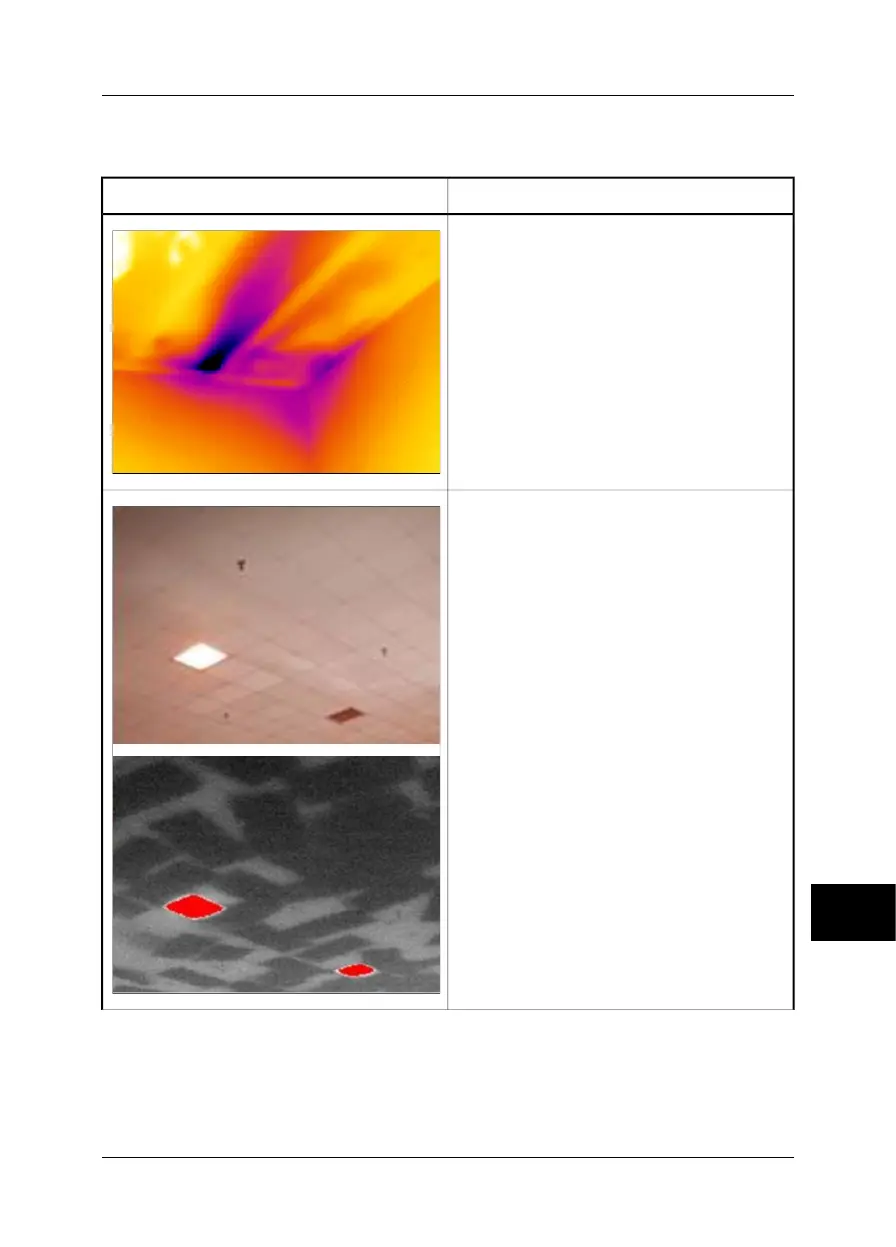

12.2.8.3 Commented infrared images
This section includes a few typical infrared images of insulation deficiencies.
CommentInfrared image
Insulation deficiencies in an intermediate floor
structure. The deficiency may be due to either
missing insulation batts or improperly installed in-
sulations batts (air pockets).
10553303;a1
Improperly installed fiberglass batts in a suspend-
ed ceiling.
10553403;a1
12
Publ. No. 1558299 Rev. a200 – ENGLISH (EN) – February 12, 2007 91
12 – Introduction to building thermography
