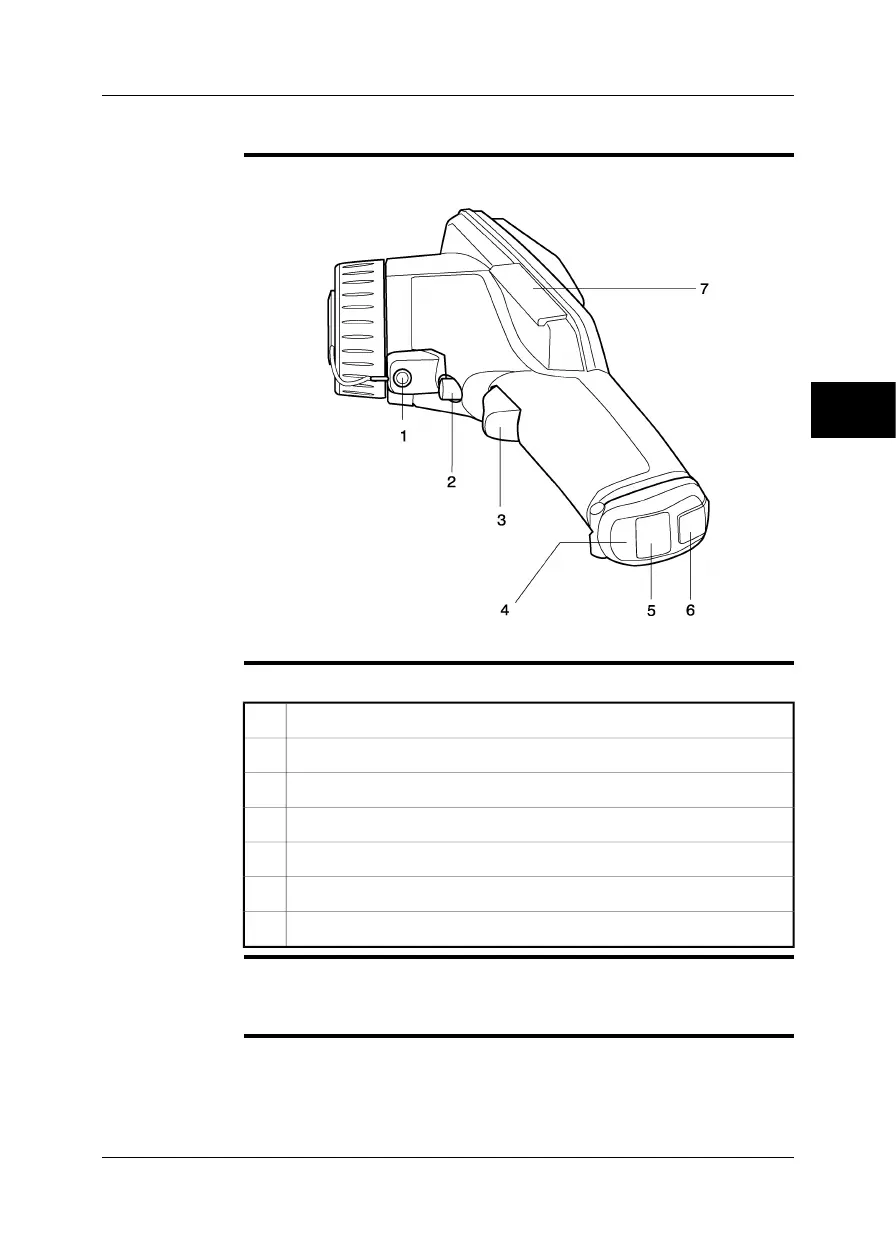

5.2 Side view
Figure
10601803;a2
Explanation
This table gives an explanation to the figure above:
Tripod mount 1/4"-201
Top trigger to operate the laser pointer2
Bottom trigger to save an image3
Battery compartment lid4
Rubber lid for power connector5
Locking mechanism for battery compartment lid6
Camera serial number behind rubber lid7
NOTE
The laser pointer may not be enabled in all markets.
■
■
When you attach the camera to a tripod, use a tripod ball head where the top part
does not prevent the operation of the laser trigger.
5
Publ. No. 1558299 Rev. a200 – ENGLISH (EN) – February 12, 2007 13
5 – Camera parts
