Installing M-Series Systems
Physical Installation
Use a thread-locking compound such as Loctite 242 or equivalent with all metal-
to-metal threaded connections.
Installing the Camera Unit
With the exception of theM-618CS model, which must be installed in the ball-up
orientation, the M-Series camera can be mounted in an upright or upside down
position. Two O-rings are provided for use during the camera installation. You
should choose the one most appropriate for your configuration:
• Part # AS568A-427 is typically used for the upright installation. Its dimensions
(in millimeters and inches):
120 mm ID x 7 mm DIA
4.75 in ID x 0.25 in DIA
• Part # A3568A-334 is used for certain ball-down installations. Its dimension (in
millimeters and inches):
67 mm ID x 5 mm DIA
2.63 in ID x 0.19 in DIA

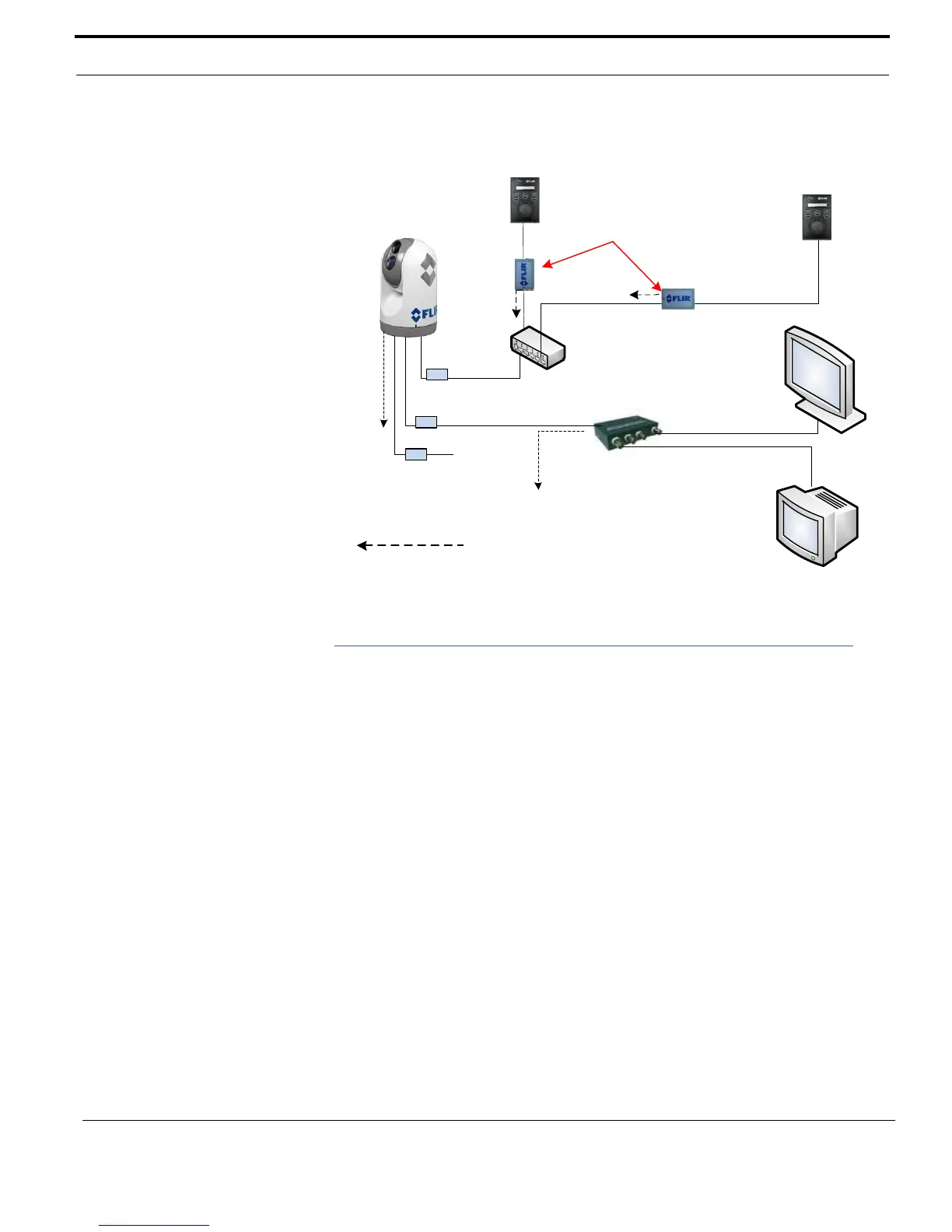

Secondary Video
Primary Video
Ethernet Switch (non PoE)
M-Series Camera
JCU
Video Amplifier
Remote JCU
located with
Remote Monitor
PoE Injectors
Video (IR)
Video (VIS/IR)
Ethernet
Video amplifier
sends the video to
up to 4 monitors
In this example, the IR
video channel is not used
Dashed lines represent
connection to power
(PN 4108996)
(PN 4113746)
To Next Page
