432-0003-00-12 Rev 140 M-Series Installation Guide 3

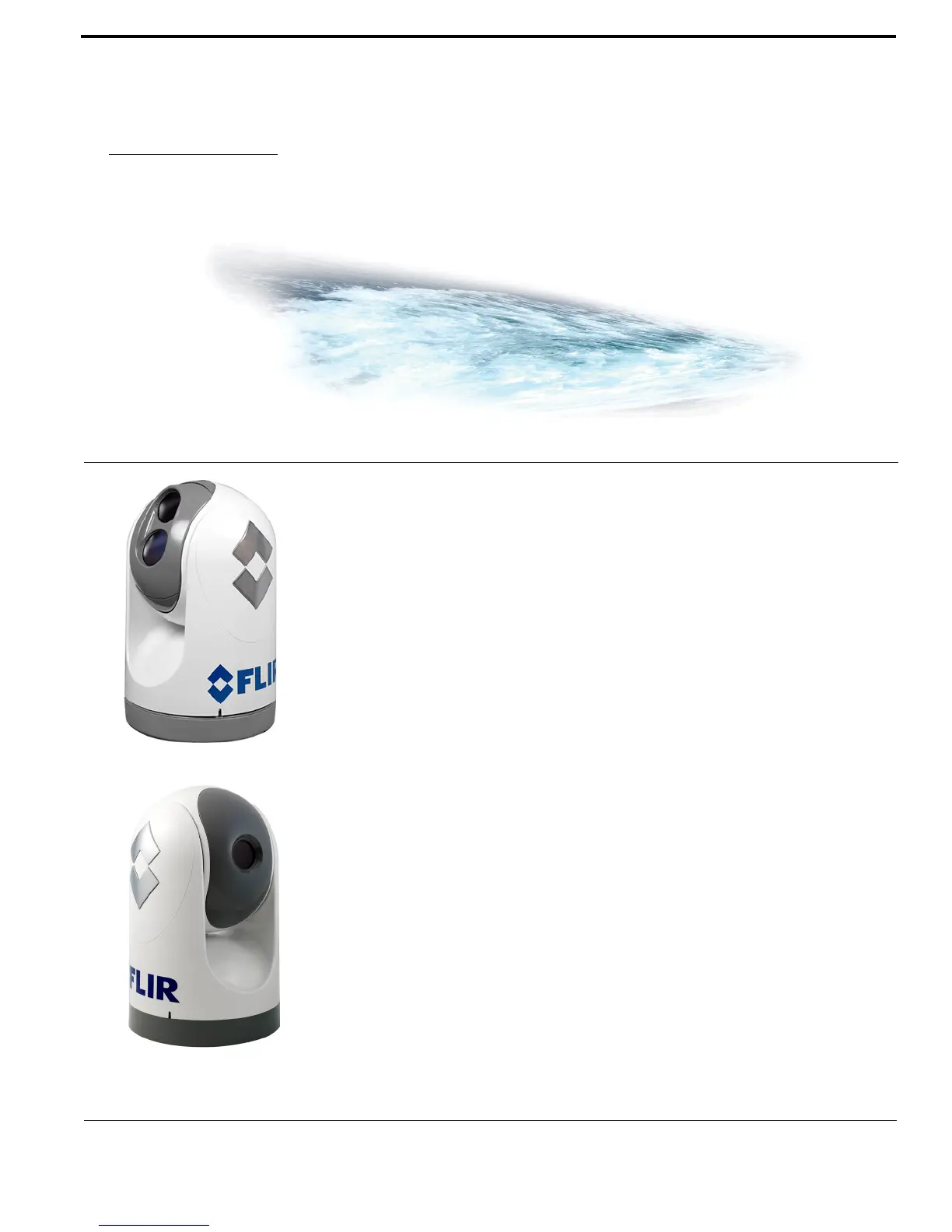

CHAPTER 1 Installing M-Series
Systems
This manual describes the installation of the M-Series camera. If you need help or
have additional questions, please call to speak with our support experts; see the
phone numbers on the back cover of this manual.
M-Series is a maritime thermal imaging system for use on most types of vessels.
The system is available in two configurations:
• The single payload models have a single thermal imaging camera.
• The dual payload models are equipped with both a thermal imaging camera
and a visible-light (DLTV) camera, either low-light or color.
The infrared (IR) thermal camera provides night-time imagery, even in total
darkness, based on temperature differences. The thermal camera provides a
clear video image even under completely dark conditions because it is sensitive
to thermal infrared energy. The infrared camera supports either 2X or both 2X and
4X zoom, depending on the model.
On dual payload models, the two integrated DLTV camera options provide either
black and white imagery in low-light conditions or color imagery. The DLTV
cameras provide enhanced navigational abilities in a variety of conditions, for
example, during twilight hours or when operating along intercoastal waterways
and near harbor entrances. The color camera dual payload model supports
continuous zoom.
One M-Series model (indicated by an S suffix) includes a mechanical stabilization
feature that improves image stability. The stabilization feature compensates for
the motion of the vessel and improves the utility of the camera video output when
operating in rough seas or swell conditions.
For a complete list of models and a comparison of key features, see “Feature
Comparison of M-Series Models” on page 22.
