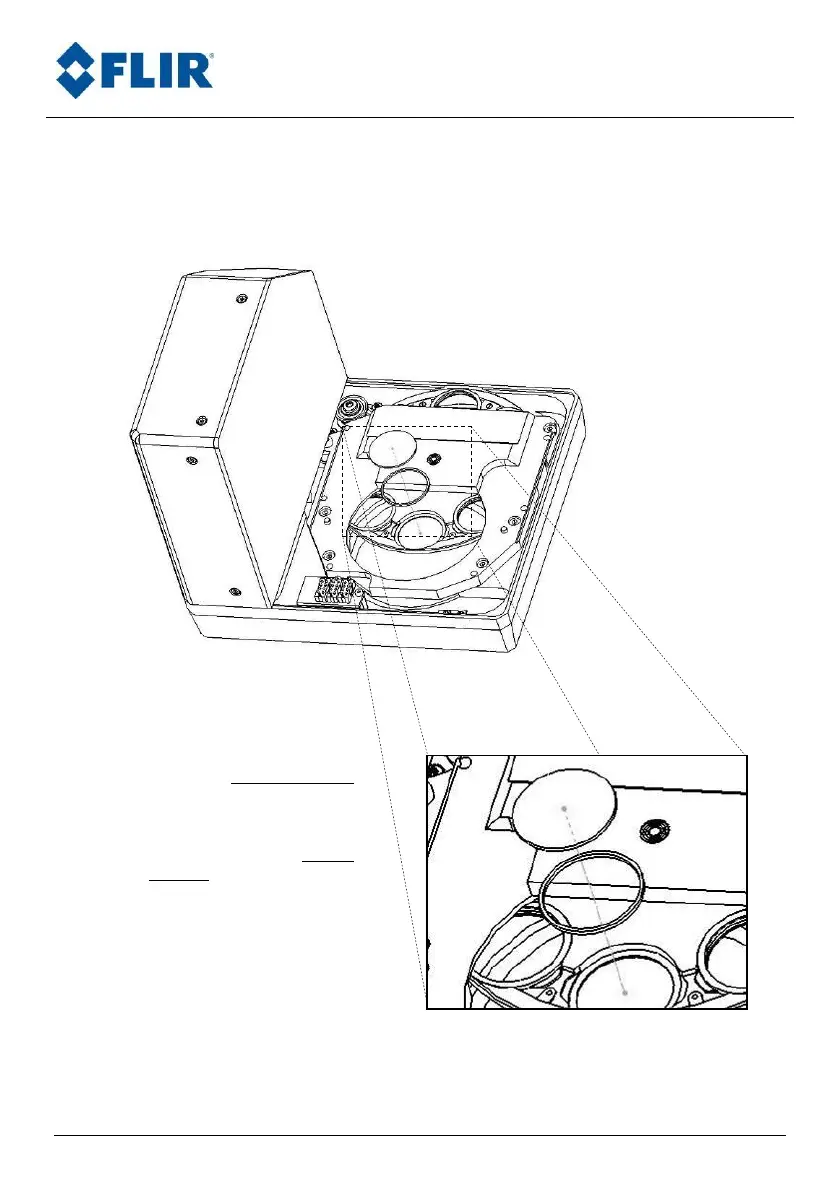

a. Inserting a 1mm thick filter
(1) Place the spacer ring #1
first in the slot
(2) Then place carefully the
filter on top of the spacer
ring #1
(3) Put the slot ring
according to step
§6.3.1.5
(4) Follow instructions from
step §6.3.1.4 to step
§6.3.1.1
(1)
(2)
