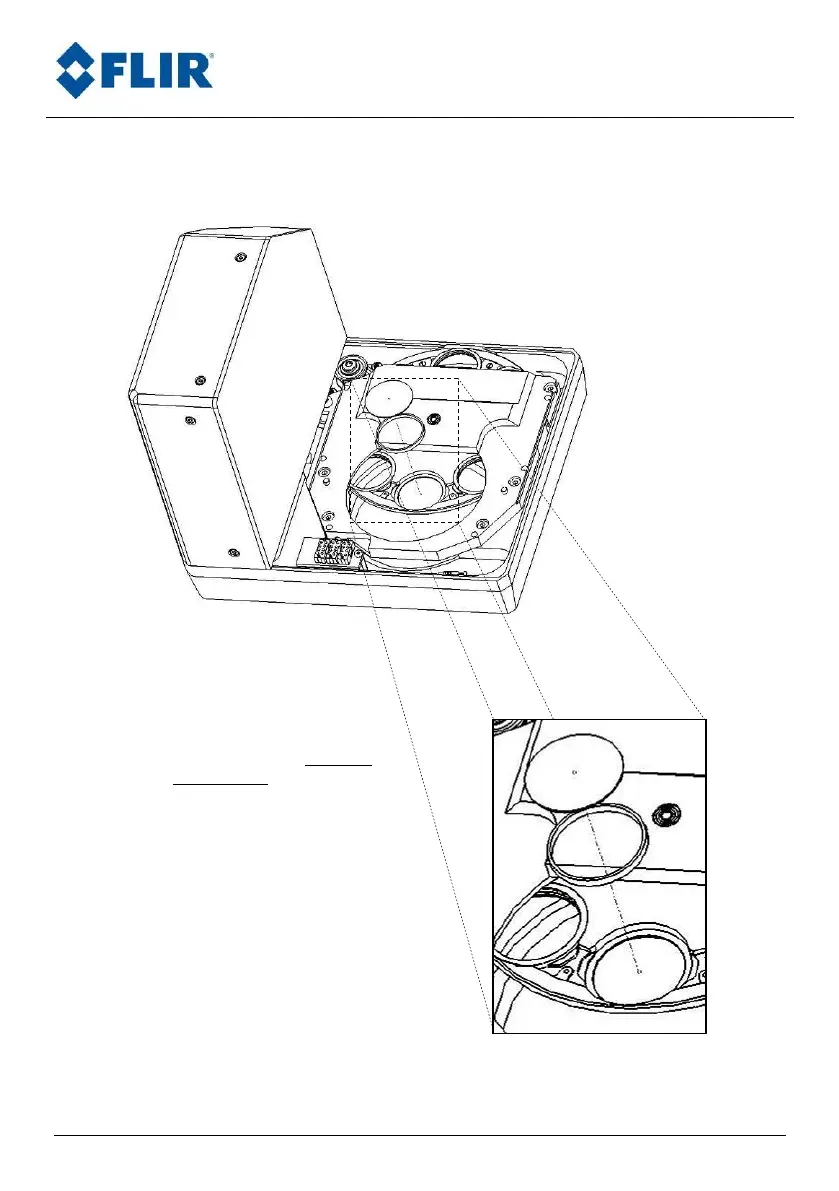

d. One filter of custom thickness up to 2.1mm
(1) Place the peelable
spacer ring in the slot
that has been peeled to
the correct thickness
(2) Then place carefully the
filter on top of the
spacer ring
(3) Put the slot ring
according to step
§6.3.1.5
(4) Follow instructions from
step §6.3.1.4 to step
§6.3.1.1
(1)
(2)
