6.3.2. Balancing the filter wheel
Due to balancing issues, the number of filters must be the same on the
opposite slot (symmetrical slot regarding the rotation axis). If needed, a
sapphire window can be used for fine adjustment (see example below).

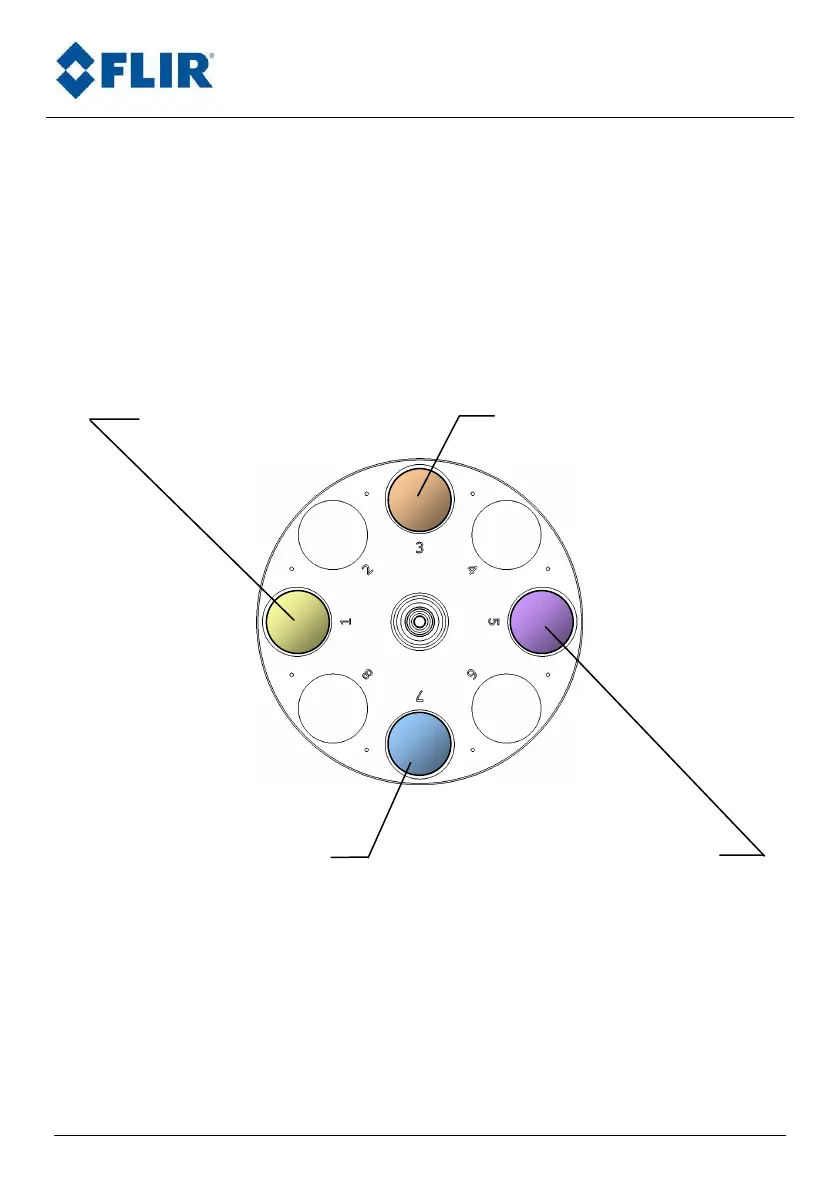

1 filter or 1 sapphire window
2 filters or 1 filter + 1 sapphire window
2 filters or 1 filter + 1 sapphire window
1 filters or 1 sapphire window
