PT-Series HD Camera Installation
1.6 Camera Connections
1.6.1 Remove the Back Cover
Use a 2.5 mm hex key to loosen the
captive screws and remove the cover,
exposing the connections at the back
of the camera. There is a grounding
wire connected between the case and
the back cover
Analog Video
(monitoring output only)
Camera Power
IP Network
Analog Visible Video
Analog Infrared

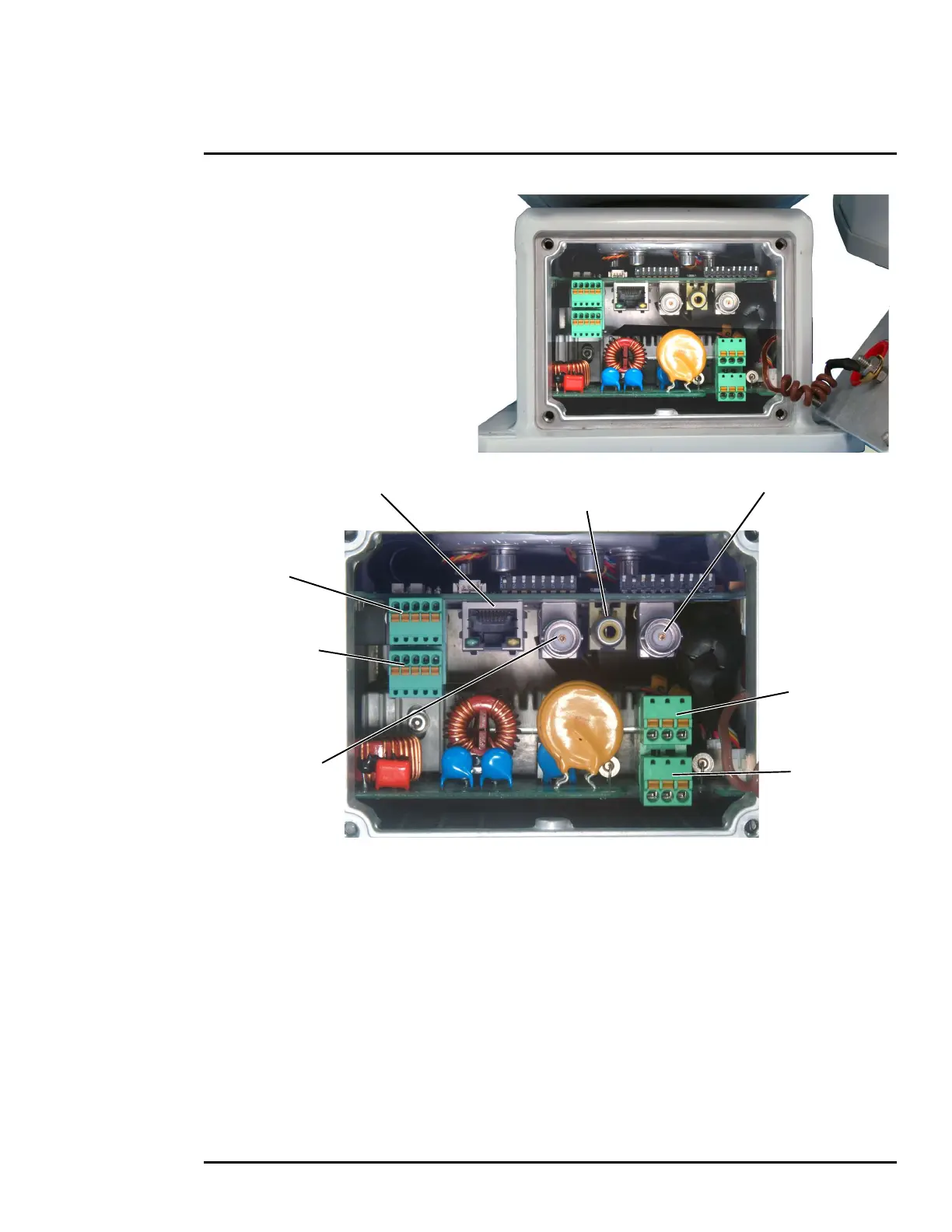

Figure 1-4: PT-Series HD Camera Connections
Heater Power
Not used
Serial Connector
for local control
Video
