427-0075-01-12 Revision 140 October 2019 18
This document does not contain any export-controlled information.
PT-Series HD Camera Installation
Cable Gland Seal Inserts
Cables may be between 0.23" to 0.29" OD.
Up to six cables may be installed. Plugs are

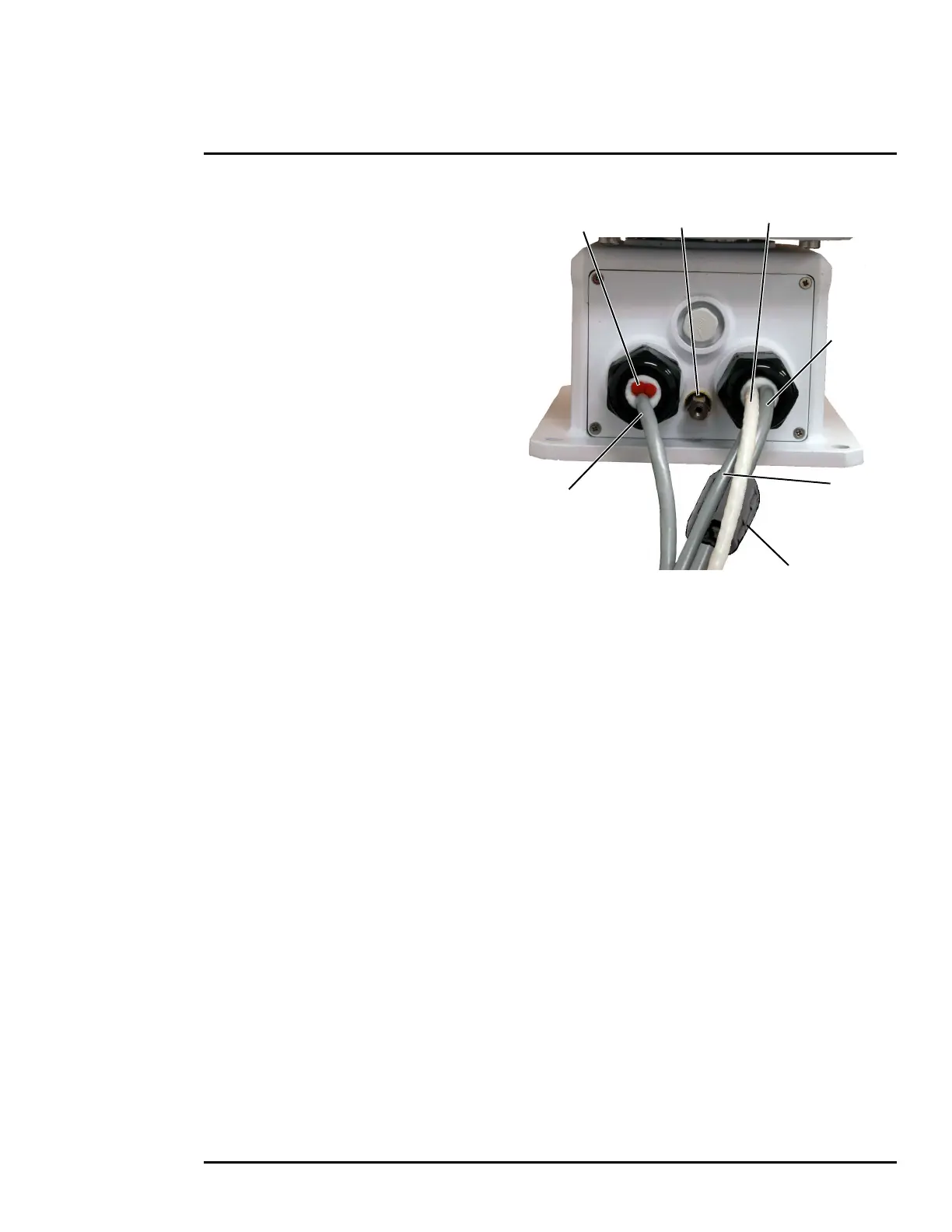

required for the hole(s) not being used. The
photograph at the right shows two power
cables, an Ethernet cable, an analog video
cable, and two gland seal plugs.
If non-standard cable diameters are used, it
may be necessary to locate or fabricate the
appropriate insert to fit the desired cable.
FLIR Systems, Inc. does not provide cable
gland inserts other than what is supplied with
the system.
Camera
Ethernet
Analog video
Heater
Gland seal plugs
Ground
Lug
Power
Power
Ferrite on camera
power only
