2.2CHIRPSonaroverview

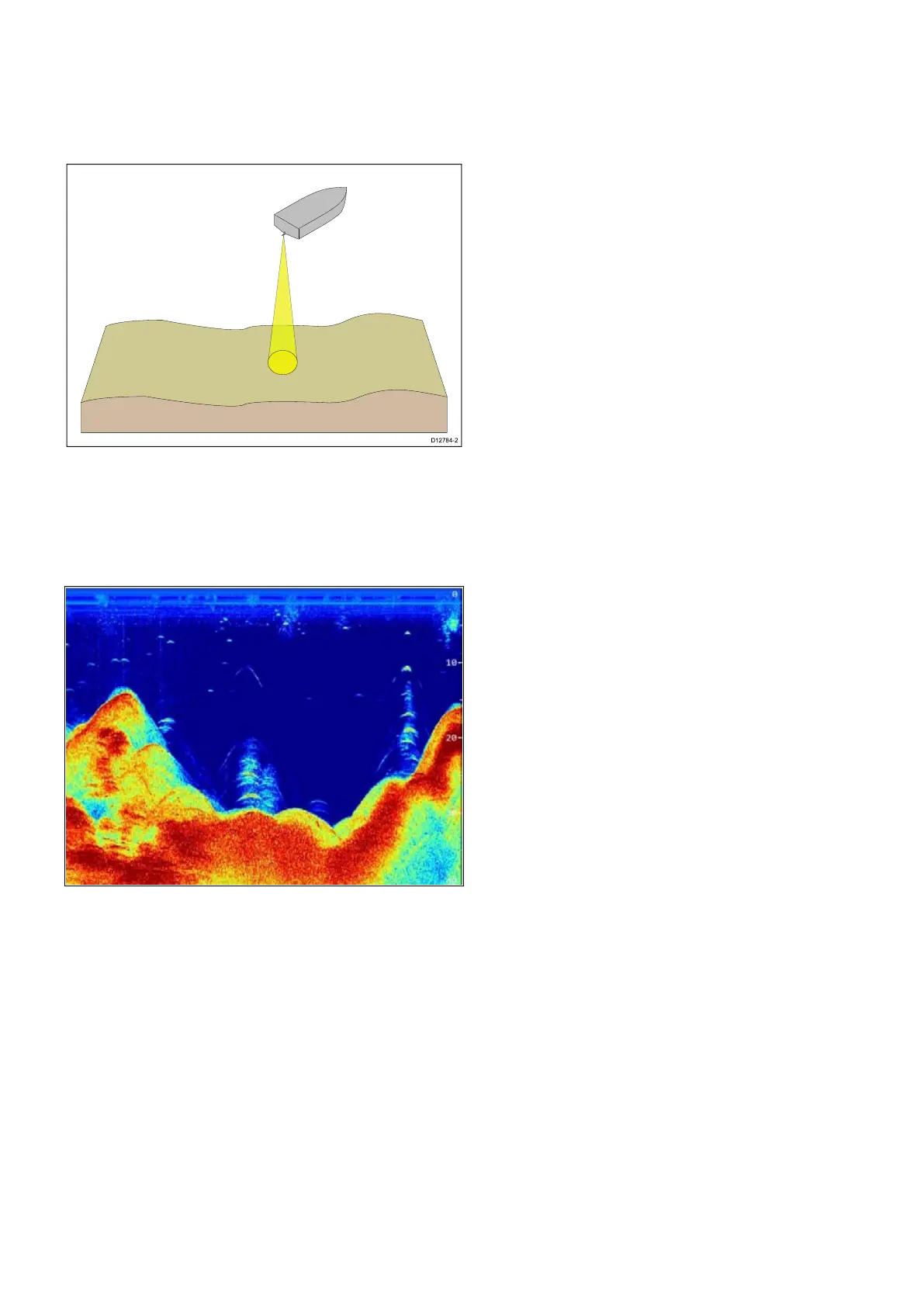

CHIRPsonarproducesaconicalshapedbeam,the

coverageoftheconicalbeamisthewatercolumn

directlybeneaththevessel

Conicalbeam

D12784-2

Sonariseffectiveatarangeofspeeds.Indeeper

waterstheCHIRPbandwidthisautomatically

optimizedtoimprovebottomlockandthedetection

ofmovingobjects(e.g.sh)inthewiderwater

column.

CHIRPsonarscreenexample
