5.3Surfacemountingusingthe
Deckmountingkit
TheDeckmountingkit(A80437)canbeusedto
surfaceorbracketmountyourproduct.
TheRiserandBracketpiecesarenotrequiredfor
thisinstallation.
Ensurethatthechosenlocationmeetstheproduct’s
locationrequirements,see3.6Selectingalocation
fordetails.

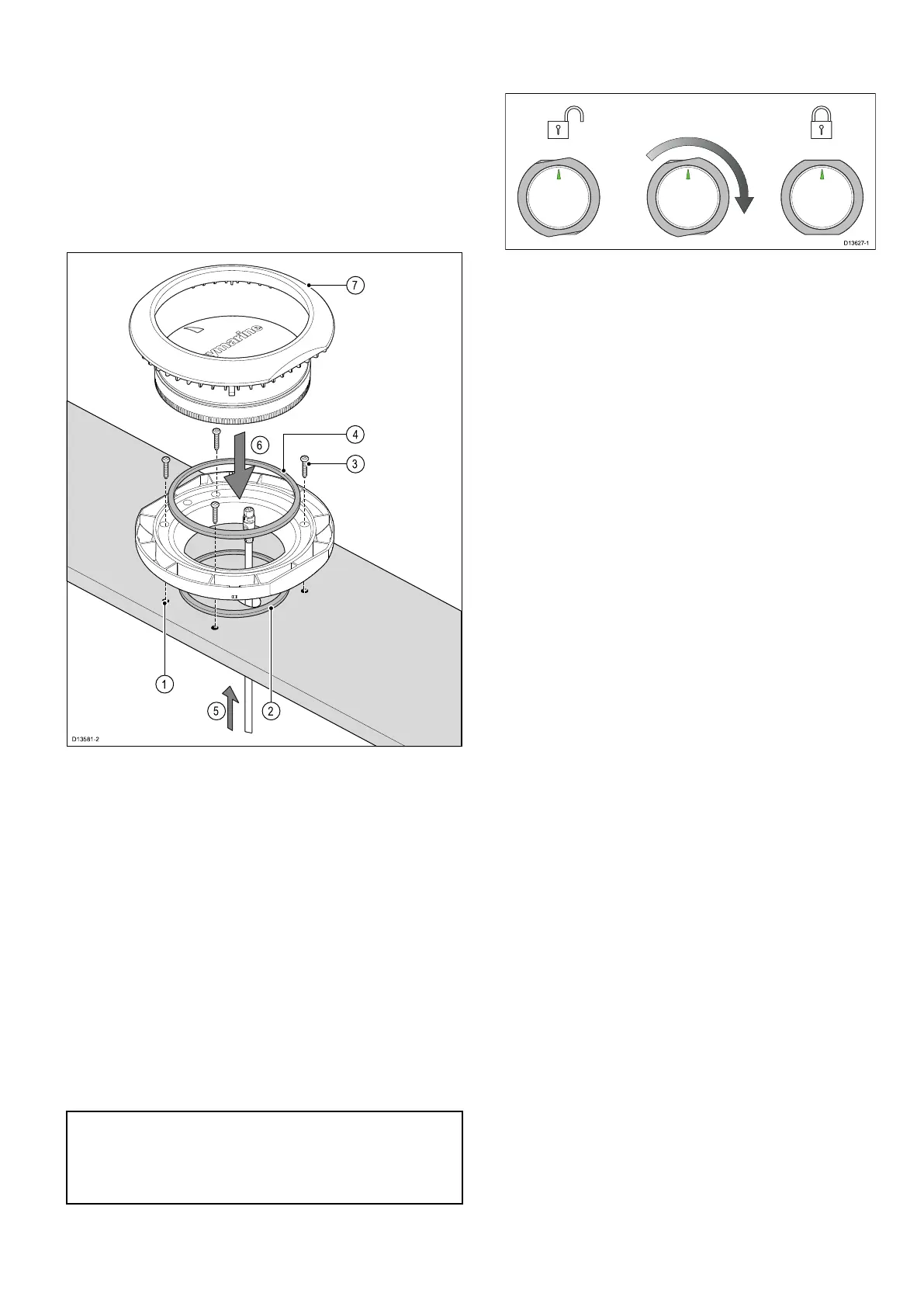

1.UsingtheMountingtraytemplate(87170),drill4
holesinthemountingsurface,plusa22mm(7/8
in)holefortheSeaTalkng®cable.
2.Placethesmallsealingringinthegroovelocated
onthebottomofthemountingtray.
3.Securethetraytothemountingsurfaceusingthe
4xxings,supplied.
4.Placethelargesealingringintothegrooveon
theuppersideoftheMountingtray.
5.PulltheSeaT alkng®cablethroughthemounting
surfaceholeandtheMountingtray.Pluginthe
cableconnectorontheundersideoftheunitand
securebyrotatingthelockingcollarclockwise
2clicks.
6.Inserttheunitintothemountingtray,ensuring
thetabsintheMountingtrayareslottedintothe
groovesaroundtheedgeoftheunit.
Important:
UnitorientationisnotimportantwiththeRS150,
aestheticallytheunitmaylookbetterwiththeLED
‘arrow’pointingtowardsthevessel’sbow.
7.PlacetheMountingtrimovertheunitslightly
offset,andthentwisttheMountingtrimclockwise
untilitlocksintoposition.
