FLIR T640 User Manual

Handling the camera13
Follow this procedure:

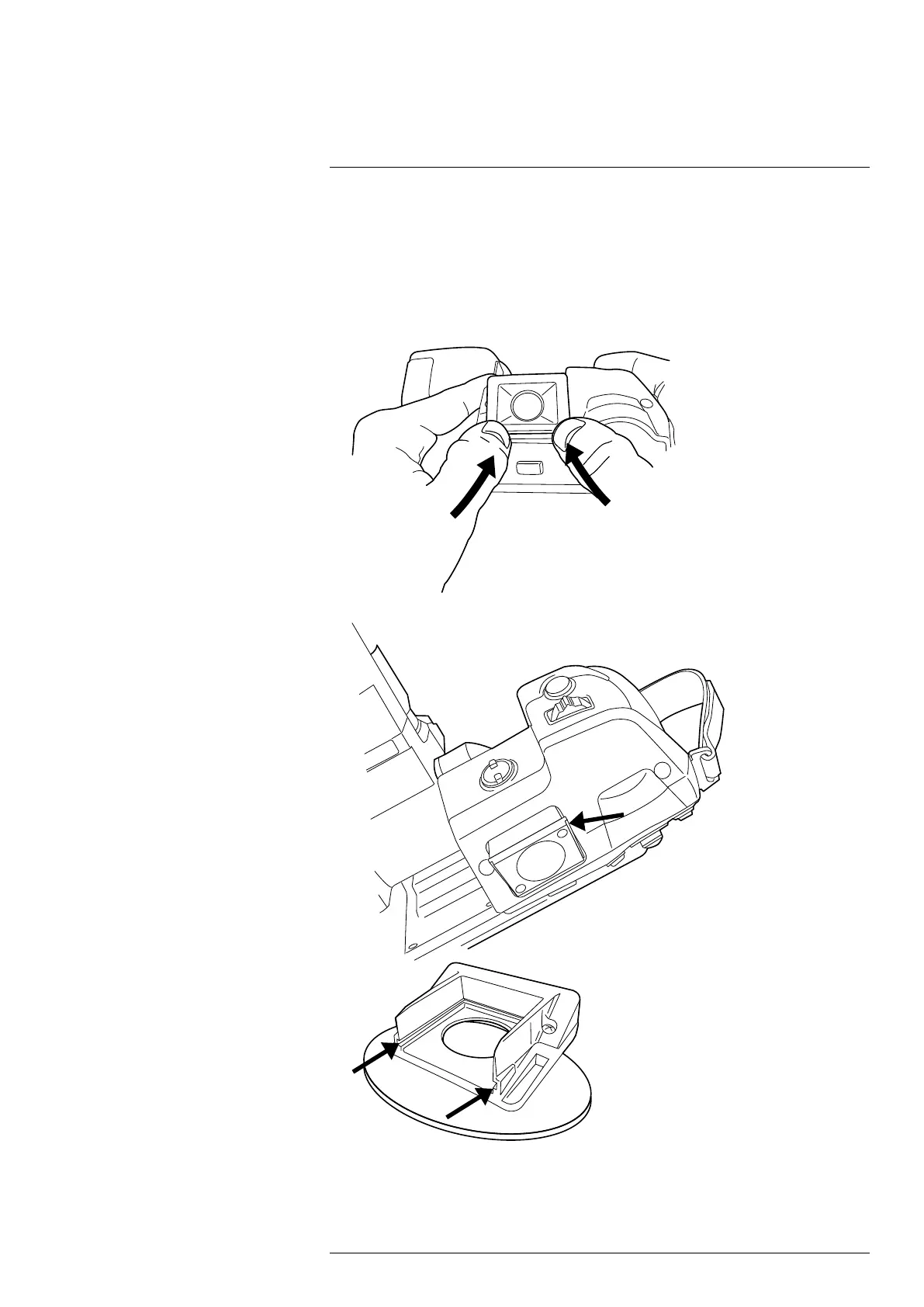

1. Put your thumbs at the lower part of the eyecup. Push the eyecup horizontally, away
from the touch-screen LCD side, until the eyecup slides out from its mount.
Note To remove the eyecup, you must slide it out from its mount. Do not pull the
eyecup straight up.
2. Note the grooves on the eyecup mount on the camera and on the new eyecup.
#T559880; r. AK/36075/36075; en-US
32

FLIR T640 Specifications

General

Resolution	640 x 480 pixels
Temperature Range	-40°C to +2000°C
Field of View	25° × 19°
Digital Camera	5MP
Laser Pointer	Yes
Wi-Fi	Yes
Spatial Resolution (IFOV)	0.68 mrad
Image Frequency	30 Hz
Accuracy	±2°C or ±2% of reading
Video Recording	Yes
MeterLink	Yes
Operating Temperature	-15°C to +50°C
Storage Temperature	-40°C to +70°C
Connectivity	USB, Wi-Fi, Bluetooth
Battery Life	Up to 4 hours
Focus	Automatic or manual
Weight	1.3 kg (2.9 lbs)
Spectral Range	7.5 - 14 µm
Image Storage	SD card
Thermal Sensitivity	<30 mK
Lens Options	15°, 45°
