28.3 Oxidized socket

28.3.1 General

Depending on the type of socket and the environment in which the socket is installed, ox-

ides may occur on the socket's contact surfaces. These oxides can lead to locally in-

creased resistance when the socket is loaded, which can be seen in an infrared image

as local temperature increase.

A socket’s construction may differ dramatically from one manufacturer to another. For

this reason, different faults in a socket can lead to the same typical appearance in an in-

frared image.

Local temperature increase can also result from improper contact between a wire and

socket, or from difference in load.

28.3.2 Figure

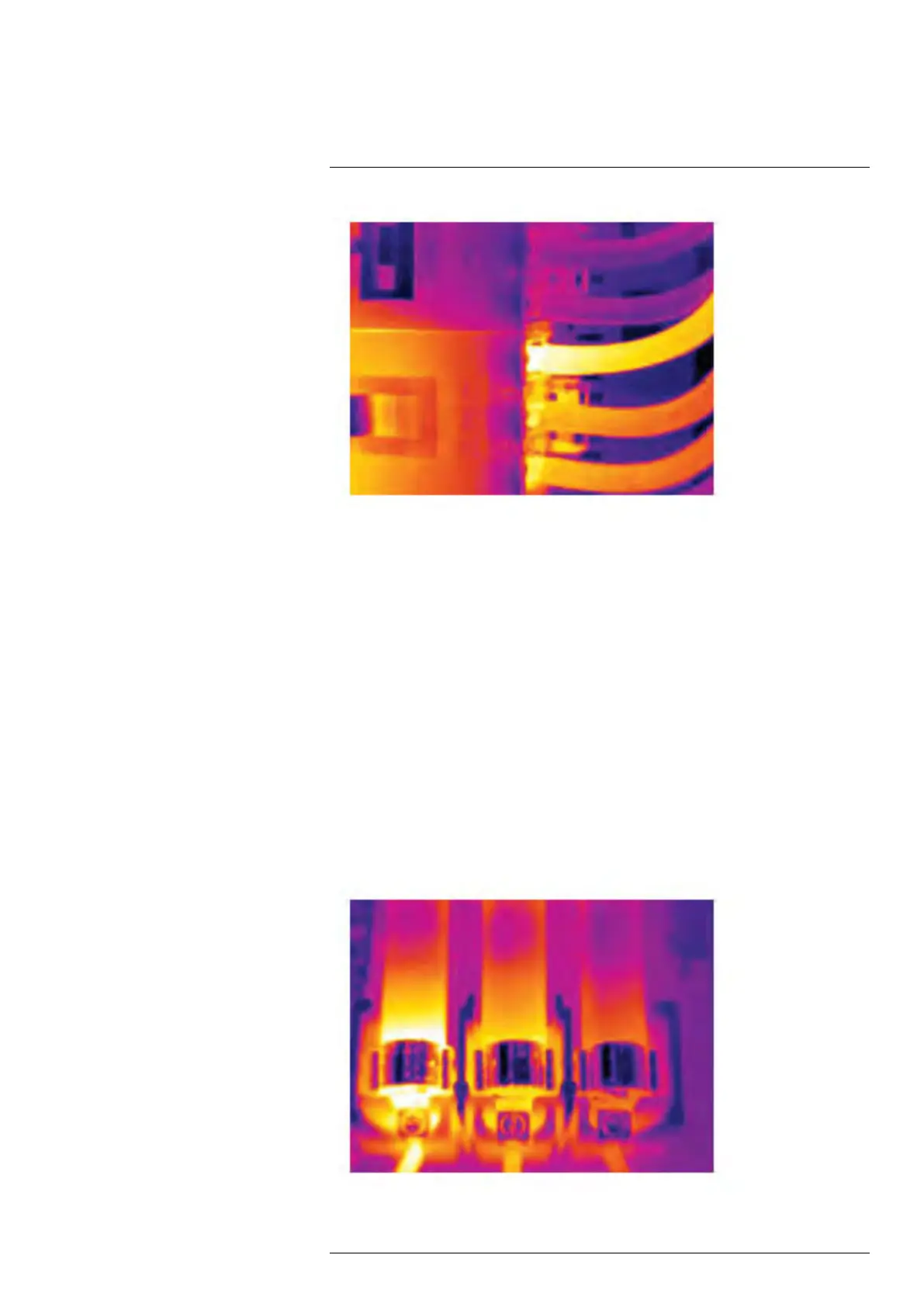

The image below shows a series of fuses where one fuse has a raised temperature on

the contact surfaces against the fuse holder. Because of the fuse holder’s blank metal,

the temperature increase is not visible there, while it is visible on the fuse’s ceramic

material.
