[5.2 — Menu objects]
ThermaCAM™ PM575/595 Operator’s Manual
16
N.B. – The screens on the following pages do not necessarily show possible com-
binations of menu objects that can be displayed at the same time. They are only
meant to show the operator the different types of menu objects.

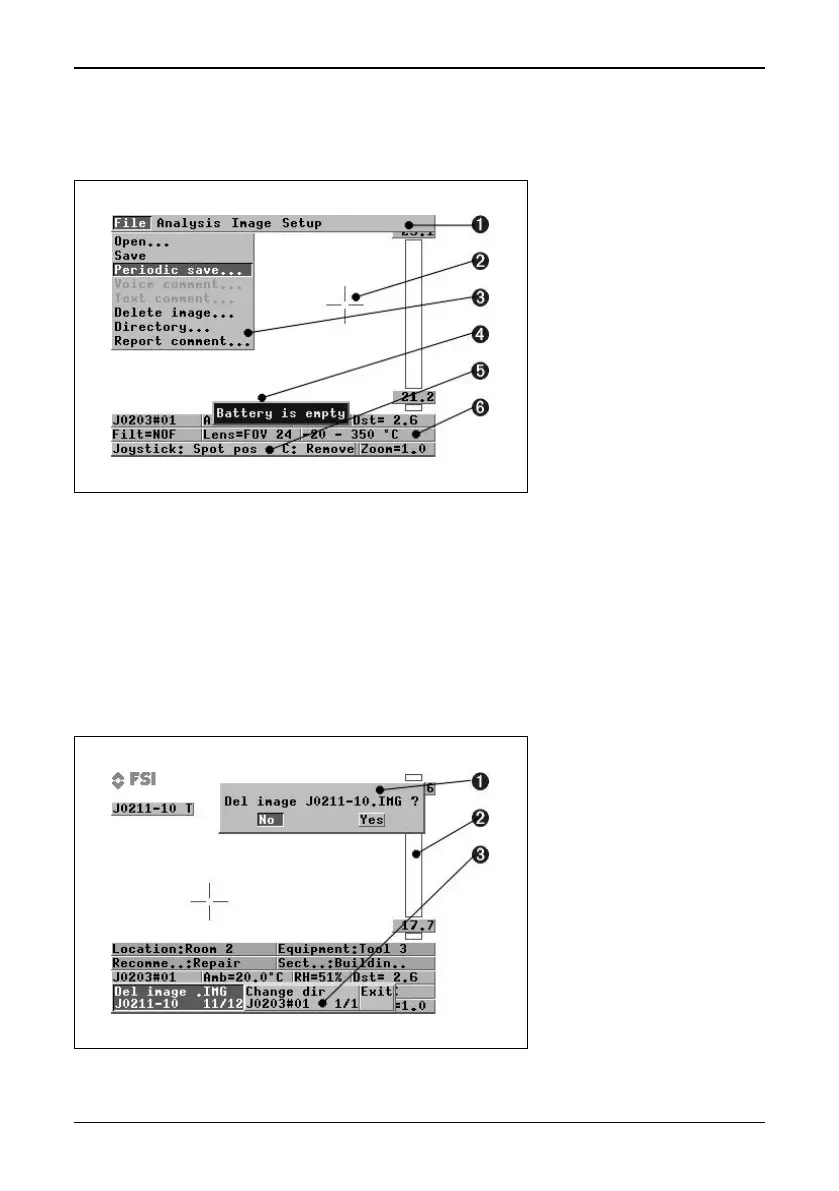

Figure 5.2 Menu objects – example 1.
[1] Menu area with pull-down menus
[2] Spot meter crosshair
[3] Pull-down menu
[4] Critical info (e.g. Battery is empty)
[5] Joystick control
[6] Data presentation – one to three lines (one to five if the text comments option
is enabled).
Figure 5.3 Menu objects – example 2 (explanations overleaf).
