Flo CoRe+ Series - Wall or Post Mounting - With Electrical Box; Mounting Procedure

CoRe+
TM
Installation Guide
10
Wall or Post Mounting
With Electrical Box

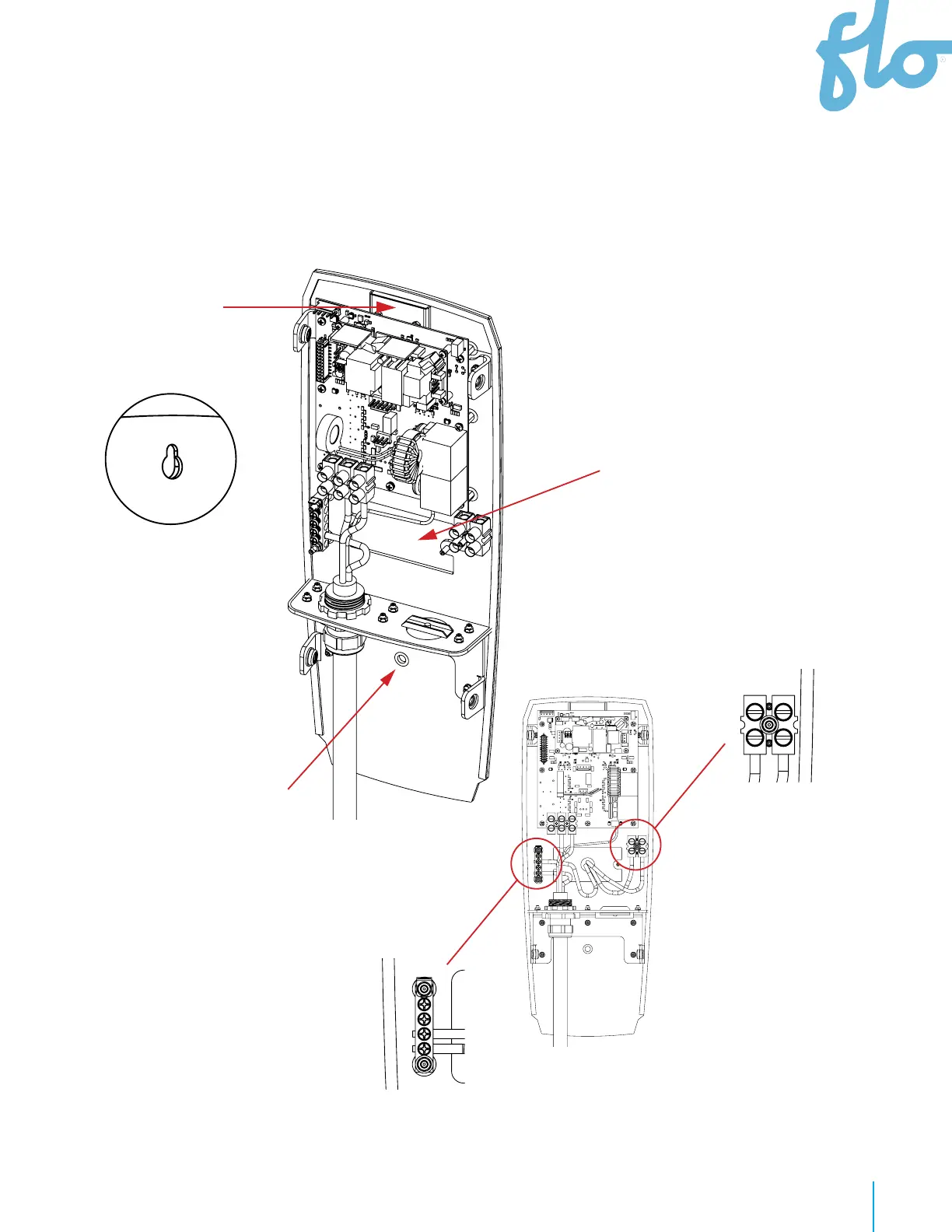

• Remove the backplate.
• Install the head base in order to
align the rectangular opening with
the box opening in the wall or the
post.
• IMPORTANT: Never
remove the
protection plate of
the keyhole.
• Connect two
power conductors
(L1 and L2) and the
ground conductor
(GND)
• The grounding
conductor shall be
provided with
green or green and
yellow insulation.
L1 L2
GND
• Attach the head base
to the wall or the post
with the appropriate type
of anchors.
• Hang the head base to an
anchor (previously fixed
to the wall or post) via
the keyhole at the top.
NEVER REMOVE THE
PROTECTION PLATE
• Complete the mounting
of the head base by
installing an anchor
through the bottom hole.
