Flomec G2 User Manual

18

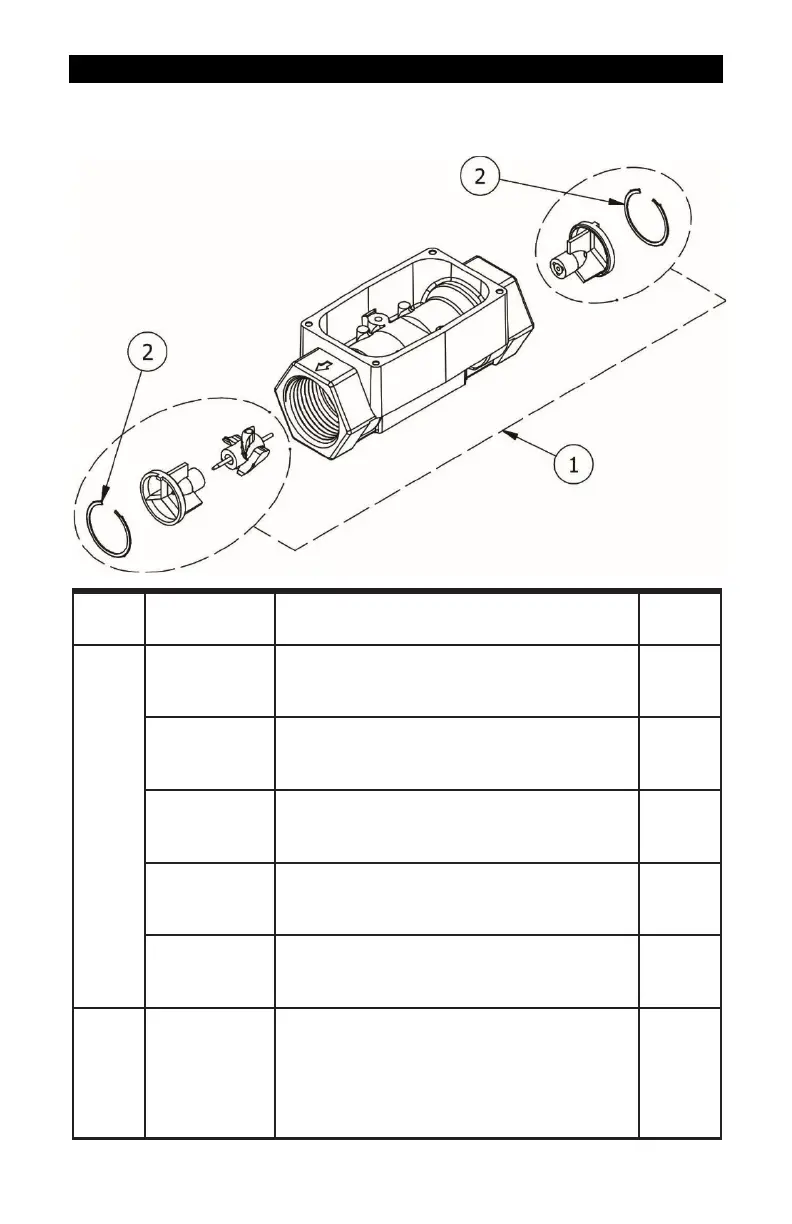

ILLUSTRATED INTERNAL PARTS DRAWING
Internal parts shown below are used in all G2 Industrial Grade turbine housings
covered by this manual. (Threaded housing shown.)
Item
No.
Part No. Description
No.
Reqd.
1
125500-1
“05” 1/2-inch Rotor/Support Replacement Kit
(includes rotor assembly,
support assembly
& retaining rings)
1
125500-2
“07” 3/4-inch Rotor/Support Replacement Kit
(includes rotor assembly, support assembly
& retaining rings)
1
125500-3
“10” 1-inch Rotor/Support Replacement Kit
(includes rotor assembly, support assembly
& retaining rings)
1
125500-4
“15” 1-1/2-inch Rotor/Support Replacement
Kit (includes rotor assembly, support
assembly & retaining rings)
1
125500-5
“20” 2-inch Rotor/Support Replacement Kit
(includes rotor assembly, support assembly
& retaining rings)
1
2
904005-20
904005-20
904005-20
904005-20
904005-20
“05” 1/2-inch Retaining Ring
“07” 3/4-inch Retaining Ring
“10” 1-inch Retaining Ring
“15” 1-1/2-inch Retaining Ring
“20” 2-inch Retaining Ring
2
2
2
2
2
