Flomec G2 - Illustrated Parts Drawing (ANSI Flange)

19

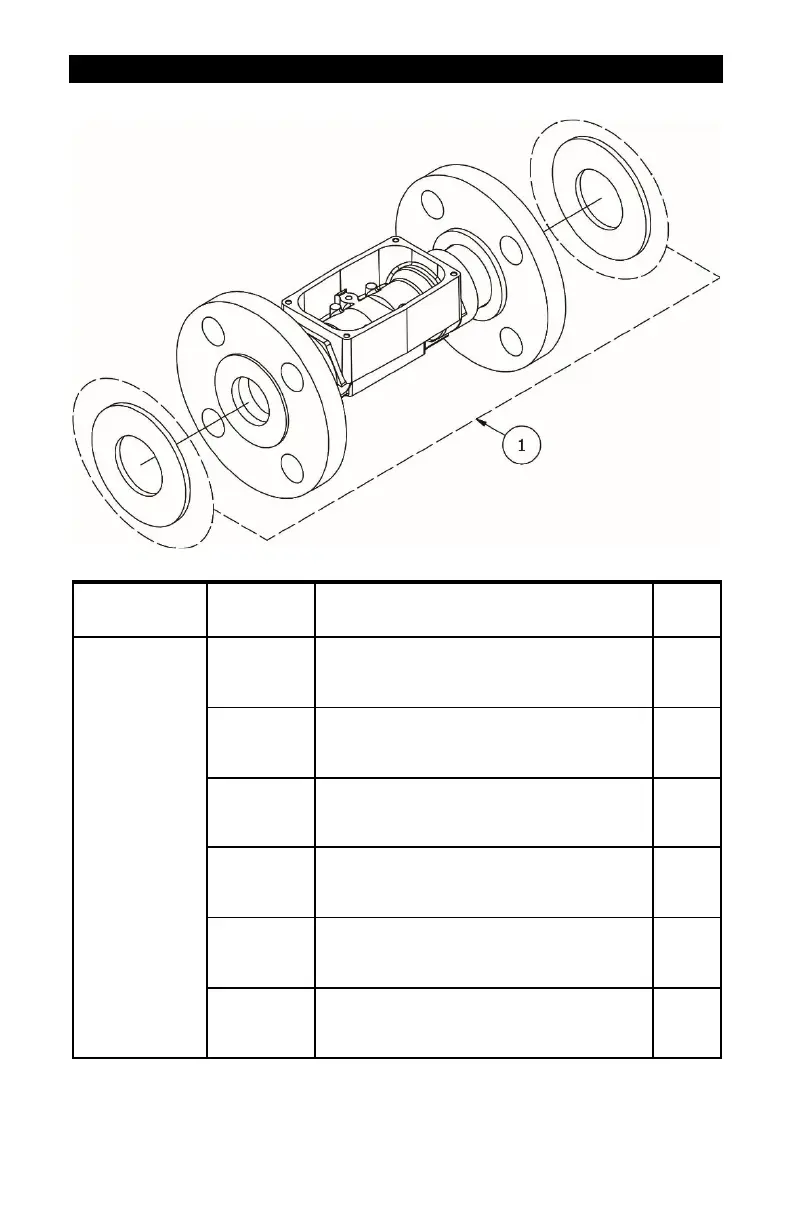

ILLUSTRATED PARTS DRAWING (ANSI FLANGE)
Item No.
Part No. Description
No.
Reqd.
1
125505-01
Flange Gasket Kit - 2 Gaskets
(1 in. Neoprene)
1
125504-01
Flange Gasket Kit - 2 Gaskets
(1 in. FKM)
1
125505-02
Flange Gasket Kit - 2 Gaskets
(1-1/2 in. Neoprene)
1
125504-02
Flange Gasket Kit - 2 Gaskets
(1-1/2 in. FKM)
1
125505-03
Flange Gasket Kit - 2 Gaskets
(2 in. Neoprene)
1
125504-03
Flange Gasket Kit - 2 Gaskets
(2 in. FKM)
1
