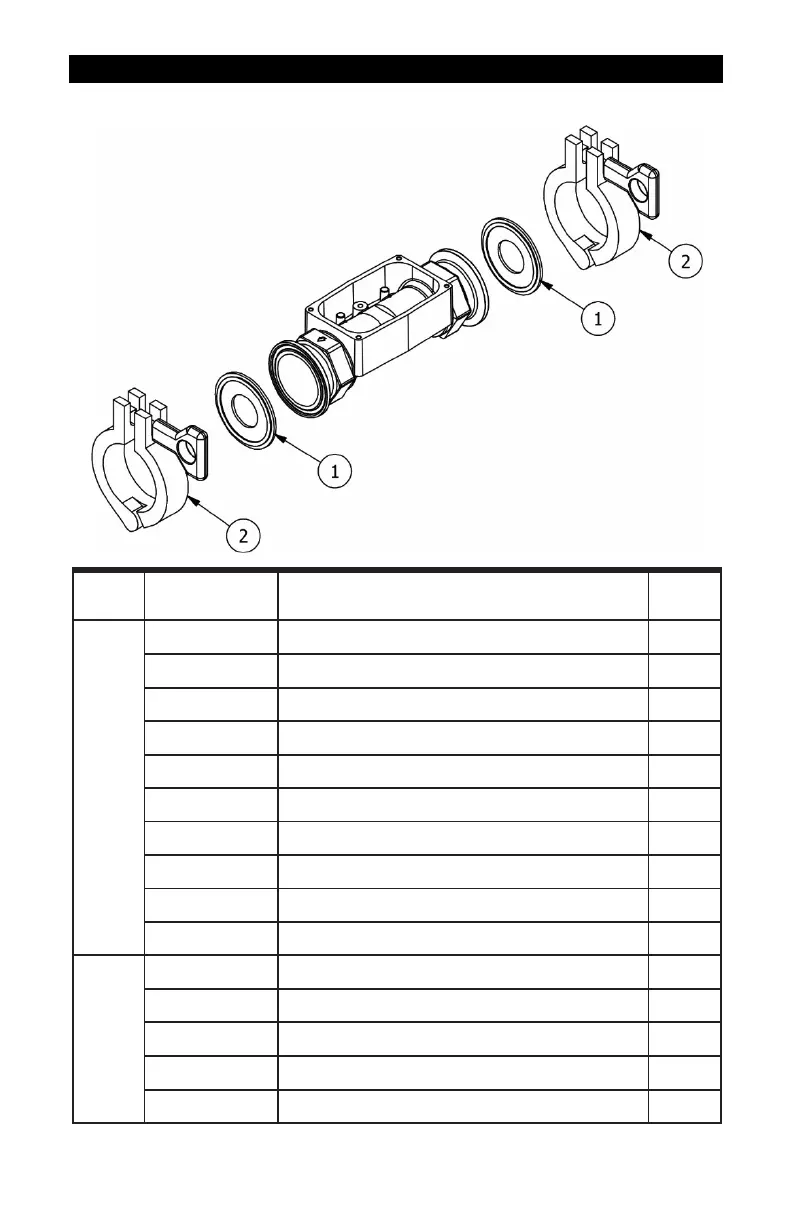

ILLUSTRATED PARTS DRAWING (TRI-CLOVER® FLANGE)
See illustrated internal parts drawing for internal wetted parts.
Item
No.
Part No. Description
No.
Reqd.
1
901003-35 Gasket - 3/4 inch Fluoroelastomer 2
901003-36 Gasket - 1 inch Fluoroelastomer 2
901003-37 Gasket - 1-1/2 inch Fluoroelastomer 2
901003-38 Gasket - 2 inch Fluoroelastomer 2
901003-39 Gasket - 2-1/2 inch Fluoroelastomer 2
901003-40 Gasket - 3/4 inch Nitrile 2
901003-41 Gasket - 1 inch Nitrile 2
901003-42 Gasket - 1-1/2 inch Nitrile 2
901003-43 Gasket - 2 inch Nitrile 2
901003-44 Gasket - 2-1/2 inch Nitrile 2
2
906005-49 Clamp - 3/4 inch 2
906005-50 Clamp - 1 inch 2
906005-50 Clamp - 1-1/2 inch 2
906005-51 Clamp - 2 inch 2
906005-52 Clamp - 2-1/2 inch 2
