Flowserve 6LR-18A - Sectional Drawings - LRV Double Entry Impeller, Grease Lubricated Thrust Bearing, Component Mechanical Seal, Silicon Carbide Bearing

LR, LRV, LLR and LR-S USER INSTRUCTIONS ENGLISH 71569088 08-10
Page 44 of 48 flowserve.com

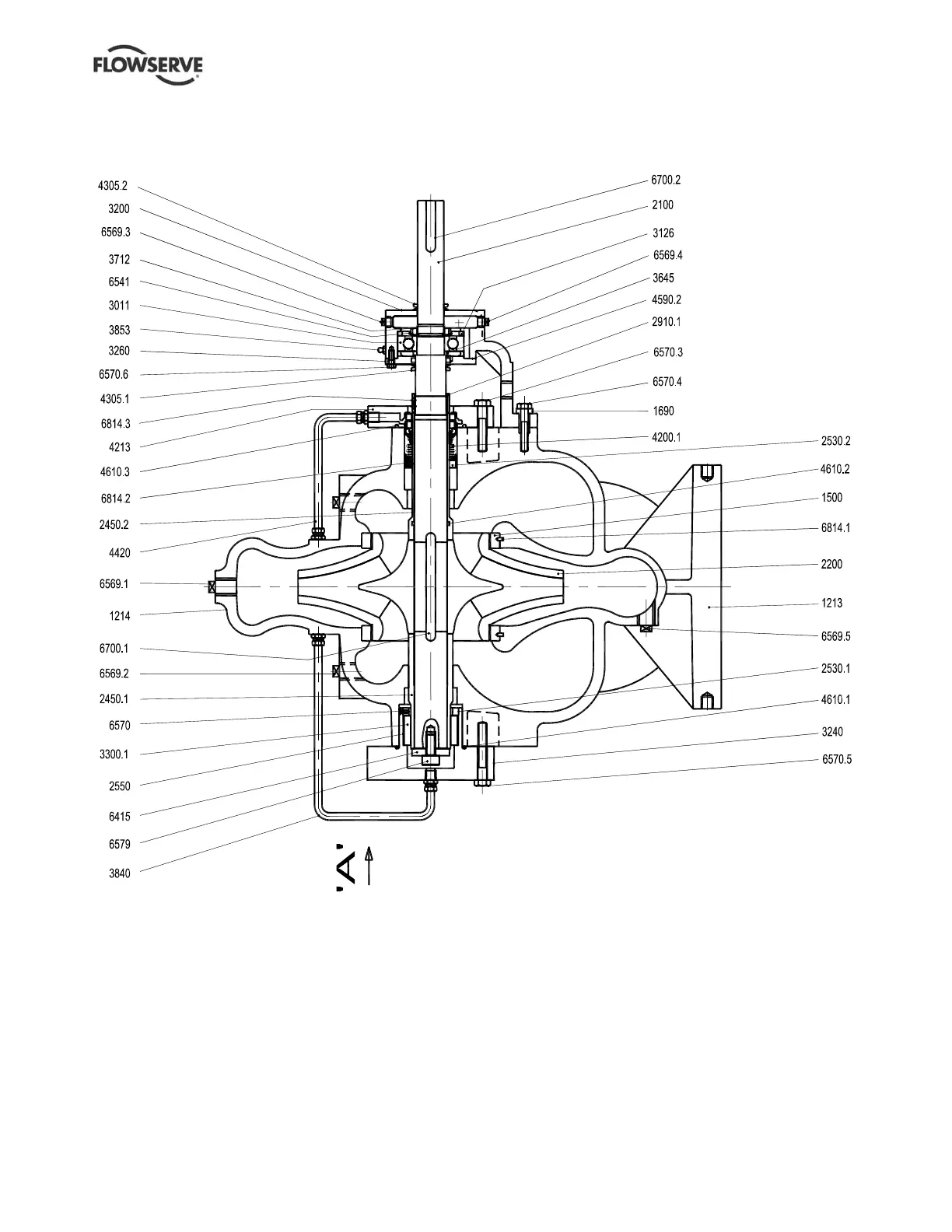

8.5 Sectional drawings – LRV double entry impeller, grease lubricated thrust
bearing, component mechanical seal, silicon carbide bearing
(Drawing taken from A336/041, sheet 1, rev -)
