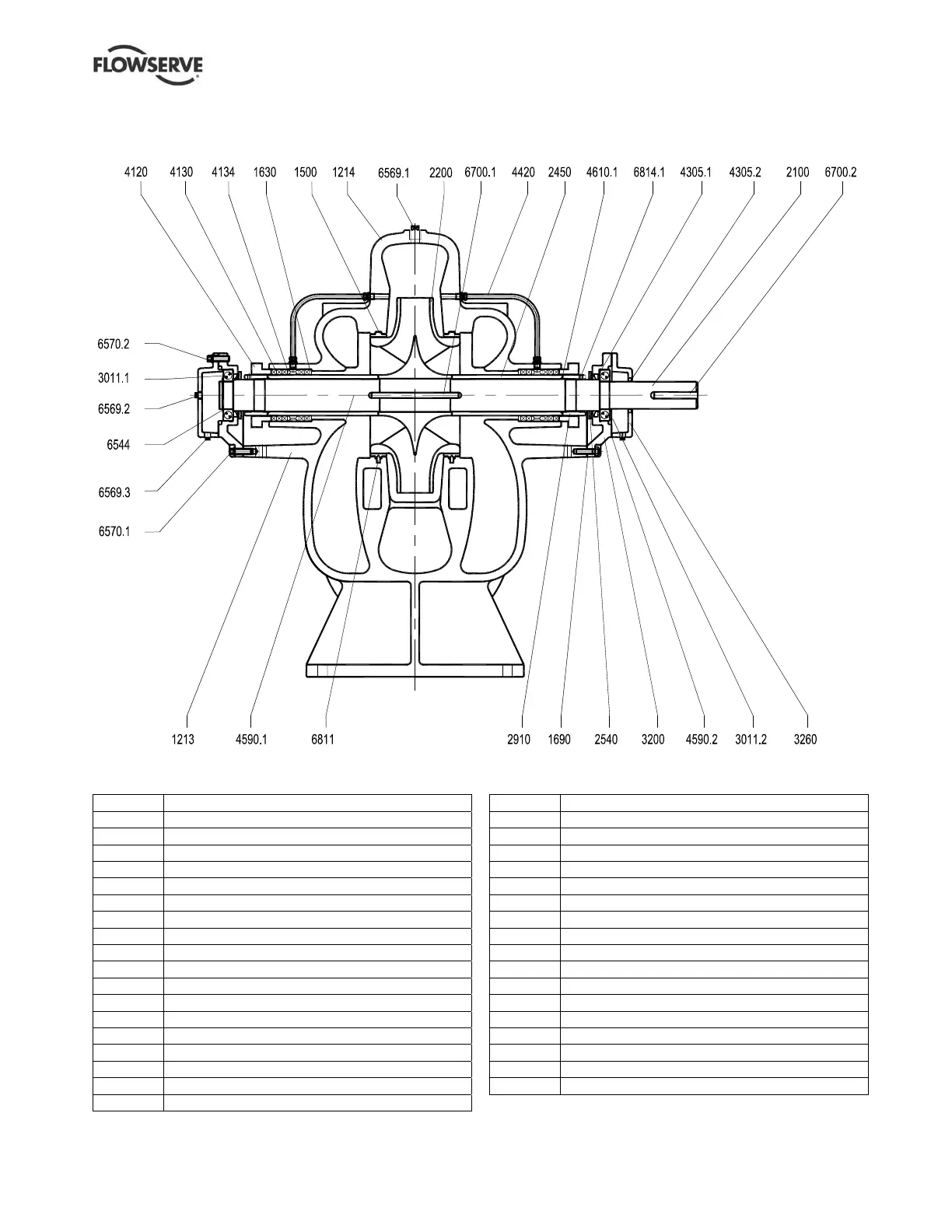

8.4 Sectional drawings – LR-S double entry impeller, grease lubricated, gland
packed
(Drawing taken from A336/043, sheet 1, rev -)
8.4.1 Parts list – LR-S
Ref. no. Description
1213 Casing half - lower
1214 Casing half - upper
1500 Casing wear ring
1630 Throttling bush
1690 Bush (dowel)
2100 Shaft
2200 Impeller
2450 Shaft sleeve
2540 Flinger (liquid)
2910 Shaft nut
3011.1 Ball bearing
3011.2 Ball bearing
3200 Bearing housing
3260 Bearing cover
4120 Gland
4130 Gland packing
4134 Lantern ring
4305.1 Shaft seal ring
4305.2 Shaft seal ring
4420 Sealing pipe
4590.1 Gasket
4590.2 Gasket
4610.1 O-ring
6541 Lockwasher
6544 Circlip
6569.1 Plug
6569.2 Plug
6569.3 Plug
6569.4 Plug
6570.1 Screw
6570.2 Screw
6570.3 Screw
6700.1 Key
6700.2 Key
6811 Cylindrical pin
6814.1 Grub screw
