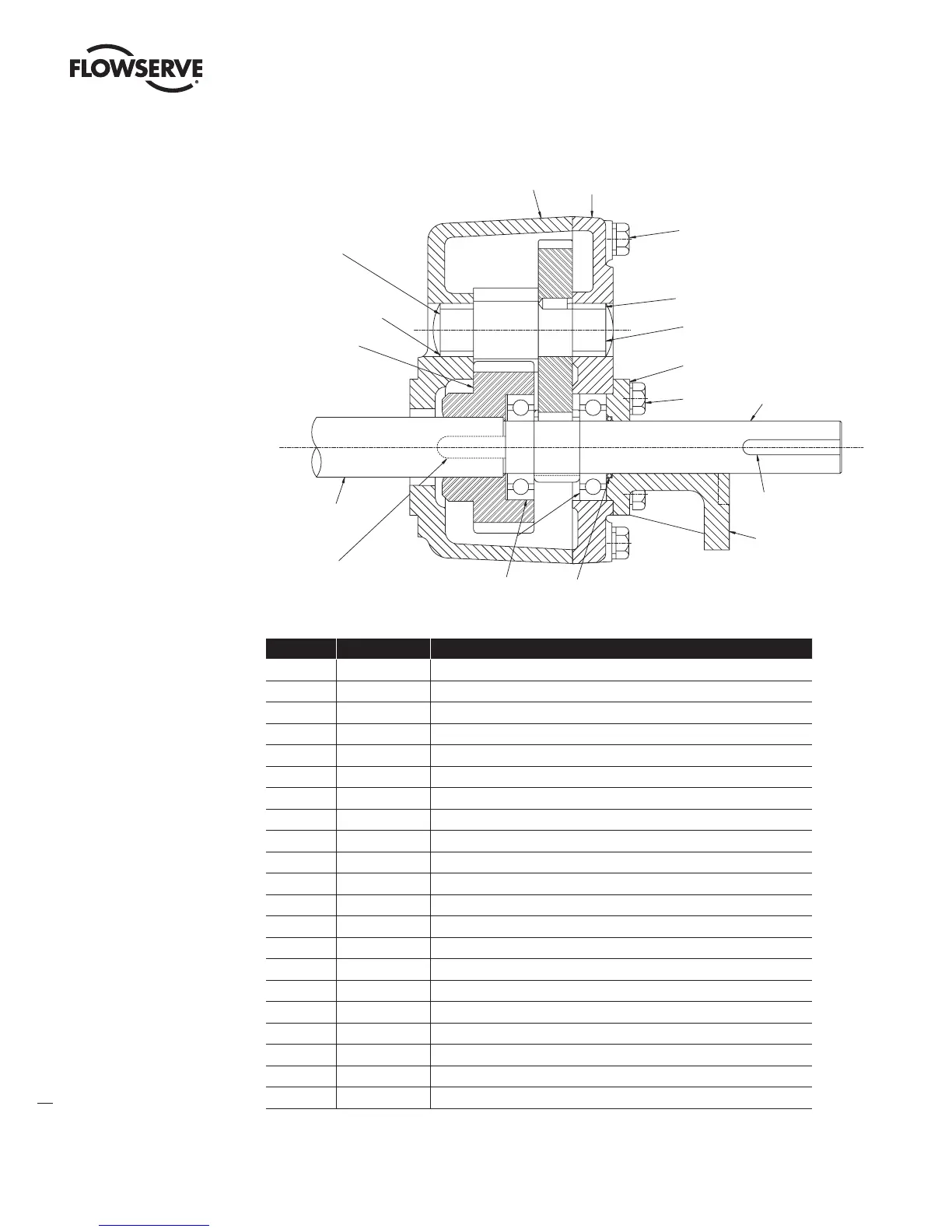

Figure 6.7 – 6.3:1, 10.3:1, and 10.8:1 SGA Parts Diagram for B320-50 through -80
Table 6.5 – 6.3:1 , 10.3:1, and 10.8:1 SGA Parts List for B320-50 through -80
Piece Quantity Description
21A 1 Spur Pinion
26A 2 Key
30 1 Spur Gear Housing
31 1 Spur Gear Cover
32 1 Bushing
32A 1 Bushing
33 2 Dowel Pin (not shown)
34 8 Hex Head Cap Screw
35 12 Lockwasher
36 2 Plug
37 1 Input Shaft & Pinion
39 1 Key
40 1 Final Gear
44 1 Endcover
45 2 Ball Bearing
46 1 O-ring
47 4 Hex Head Cap Screw
48 1 Idler Shaft Subassembly
51 1 Motorized Adapter (if required)
53 8 Socket Head Cap Screw (internal, not shown)
54 8 Lockwasher (Hi Collar) (internal, not shown)
48
40
30
31
34
35
32
36
44
47
35
37
21A
26A
45
46
51
39
32A
